800A 18 Way 125A Outgoers Glazed JF818BG

EAN
5015652263920
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

800A 18 Way 125A Outgoers Glazed

JF818BG

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (13)
    • Door/­op­er­ating panel 2 products available
    • Distrib­utor assembly with main switch 4 products available
    • Distrib­utor assembly for device surface mounting 1 products available
    • Blanking plate for enclosure 1 products available
    • Switch discon­nector AC 1 products available
    • Small distri­bu­tion board 3 products available

    Complete your system

    • Door/­op­er­ating panel
    • Distrib­utor assembly with main switch
    • Distrib­utor assembly for device surface mounting
    • Blanking plate for enclosure
    • Switch discon­nector AC
    • Small distri­bu­tion board
    • Gland plate for enclosure
    • JF806DK

      Large Extension Box Door Kit
      0.00 €  / *
    • JF805DK

      Small Spreader Box Door Kit
      0.00 €  / *
    • JF864BSW

      630A 4 Pole Isolator Incomer Kit
      0.00 €  / *
    • JF864BM

      630A 4 Pole MCCB Incomer Kit
      0.00 €  / *
    • JF863BM

      630A 3 Pole MCCB Incomer Kit
      0.00 €  / *
    • JF844BSW

      400A 4 Pole Isolator Incomer Kit
      0.00 €  / *
    • JF884BD

      800A 4 Pole Dirct Connect Incomer Kit
      0.00 €  / *
    • JF003BP

      3 Pole Blanking Plate 250A Frame
      0.00 €  / *
    • JAB410B

      Enclosed Switch Disconnector TPSN 100A
      0.00 €  / *
    • JF803EG

      Large DIN Rail Box Glazed
      0.00 €  / *
    • JF801EG

      Small DIN Rail Box Glazed
      0.00 €  / *
    • JF17009SM

      18 Way Side Extension Encl DIN 96 x 9
      0.00 €  / *
    • JFPLATE

      Spare Endplate for JF boards
      0.00 €  / *

    Technical properties

    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      800 A
    Equip­ment
    • With lock
      Yes
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    Dimen­sions
    • Height
      1,700 mm
    • Width
      900 mm
    • Depth
      220 mm
    Cover, door
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class III
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Barrel lock, Key lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - 125A 6 Way TPN Board with 4 pole SD & Type II SPD Glazed (english)
    PDF
    1,80 MB
    Hager REACH declaration JF818BG
    PDF
    Hager RoHS report JF818BG
    PDF

    Downloads

    • Product image

      Image JF818BG | Hager

      Product Image JF818BG

    • Product datasheet

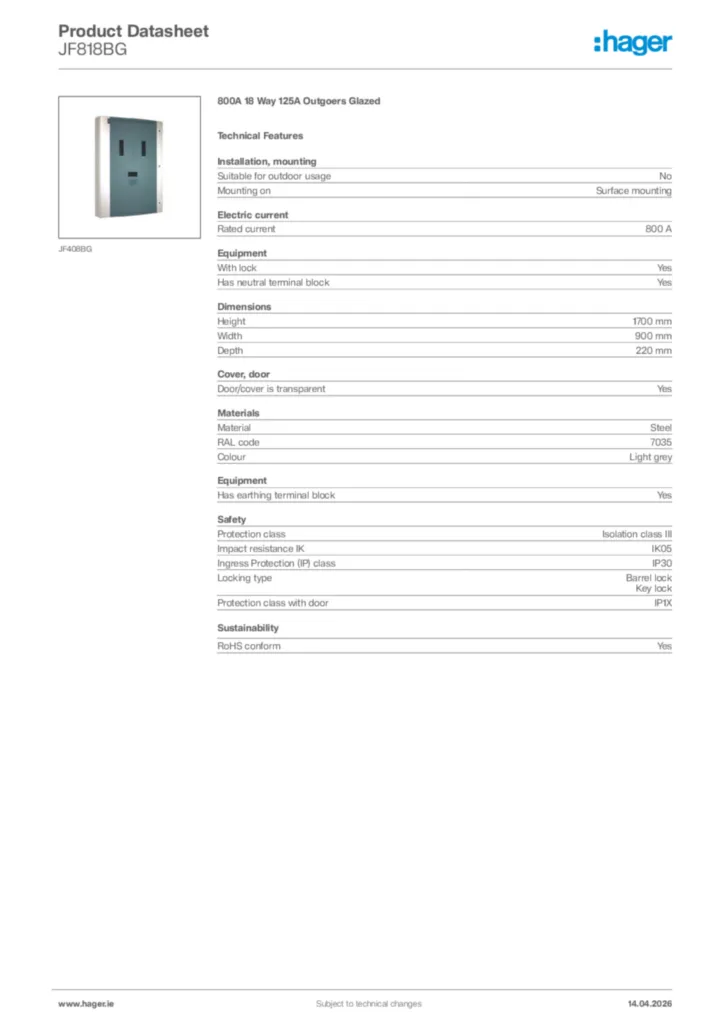

      Image Hager Product data sheet JF818BG | Hager

      Hager Product data sheet JF818BG

      800A 18 Way 125A Outgoers Glazed

      PDF

    • BIM Revit objects

      Image Panelboard Invicta 3 (630A-800A Inc 125A Out)$ -Revit Family 2020 hosted-V2021 | Hager

      Panelboard Invicta 3 (630A-800A Inc 125A Out)$ -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,08 MB
      Image Panelboard Invicta 3 (630A-800A Inc 125A Out)$ -Revit Family 2020 no hosted-V2021 | Hager

      Panelboard Invicta 3 (630A-800A Inc 125A Out)$ -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,07 MB
      Image Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,09 MB
      Image Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,07 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      246,50 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      244,86 kB
