    Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI HNF981H

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI

    HNF981H

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (26)
    • Handle for power circuit breaker 2 product.page.accessories.products-available
    • Padlock barrier for switch 1 product.page.accessories.products-available
    • Auxil­i­aries contact block 3 product.page.accessories.products-available
    • Under voltage coil 10 product.page.accessories.products-available
    • Auxil­i­aries inter­locking cable 1 product.page.accessories.products-available
    • Motor oper­ator 2 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Handle for power circuit breaker
    • Padlock barrier for switch
    • Auxil­i­aries contact block
    • Under voltage coil
    • Auxil­i­aries inter­locking cable
    • Motor oper­ator
    • Auxil­i­aries cable adaptor
    • Shunt release
    • HXF030H

      Direct rotary handle H1250-H1600
      €0.00  / *
    • HXF031H

      Extended rotary handle H1250-H1600
      €0.00  / *
    • HXF039H

      Padlock H1250-H1600
      €0.00  / *
    • HXC021H

      Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
      €0.00  / *
    • HXC025H

      Auxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)
      €0.00  / *
    • HXC024H

      Alarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
      €0.00  / *
    • HXE019H

      UVR 200-240 V DC (h800-h1000-h1600)
      €0.00  / *
    • HXE018H

      UVR 100-120 V DC (h800-h1000-h1600)
      €0.00  / *
    • HXF054H

      Undervoltage Release delayed h1600 4P 220-240VAC
      €0.00  / *
    • HXF051H

      Undervoltage Release delayed h800-h1600 4P 24VDC
      €0.00  / *
    • HXF055H

      Undervoltage Release delayed h800-h1600 4P 380-415VAC
      €0.00  / *
    • HXF053H

      Undervoltage Release delayed h800-h1600 4P 110-120VAC
      €0.00  / *
    • HXE015H

      UVR 380-415V AC (h800-h1000-h1600)
      €0.00  / *
    • HXE013H

      UVR 110-120V AC (h800-h1000-h1600)
      €0.00  / *
    • HXE014H

      UVR 220-240V AC (h800-h1000-h1600)
      €0.00  / *
    • HXE011H

      UVR 24V DC (h800-h1000-h1600)
      €0.00  / *
    • HXB069H

      Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)
      €0.00  / *
    • HXF042H

      Motor operator H1250-H1600 200-230VAC
      €0.00  / *
    • HXF040H

      Motor operator h1250-h1600 24V DC
      €0.00  / *
    • HYA035H

      Connecting kit 3P/4P
      €0.00  / *
    • HXF008H

      Shunt trip Release h1600 110V DC
      €0.00  / *
    • HXF005H

      Shunt trip Release h1600 380-450V AC
      €0.00  / *
    • HXF004H

      Shunt trip Release h1600 200-240V AC
      €0.00  / *
    • HXF003H

      Shunt trip Release h1600 100-120V AC
      €0.00  / *
    • HXF002H

      Shunt trip Release h1600 48V DC
      €0.00  / *
    • HXF001H

      Shunt trip Release h1600 24V DC
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Elec­tric current
    • Rated current IN
      1,250 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
      100 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      100 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      50 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
      50 kA
    • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
      60 kA
    • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
      9 kA
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    Capa­city
    • Number of modules
      16
    Trip­ping
    • Response time when opening
      10 ms
    Settings
    • Magnetic protec­tion knob setting xIN
      2.5, 5, 10
    • Range of magnetic adjust­ment
      7000 A, 8750 A, 11200 A, 14000 A, 15000 A, 15000 A, 15000 A
    • Thermal protec­tion knob setting xIN
      0.4, 0.5, 0.63, 0.8, 0.9, 0.95, 1
    • Adjust­ment range short-term delayed short-­cir­cuit release
      0 - 0 A
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      65 - 65 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Voltage
    • Rated impulse with­stand voltage Uimp
      8,000 V
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated oper­a­tional voltage Ue
      220 - 690 V
    Func­tions
    • Trip unit
      LSI
    Main elec­trical attrib­utes
    • Magnetic protec­tion trip time
      100 - 200 ms
    Power
    • Power dissip­a­tion at IN
      187.50 W
    • Power loss per pole at In
      62.50 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      1,000
    • Number of mech­an­ical oper­a­tions
      4,000
    Equip­ment
    • Number of auxil­iary contacts as change-over contact
      0
    • Number of auxil­iary contacts as normally closed contact
      0
    • Number of auxil­iary contacts as normally open contact
      0
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 70 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      3x 240 mm²
    • Cross-sec­tion rigid conductor
      3x 240 mm²
    • Connect­or/plug type
      Terminal
    Controls and indic­ators
    • Motor drive integ­rated
      catalog.pageproduct.attribute_boolean.no
    Compat­ib­ility
    • Suit­able for DIN Rail
      catalog.pageproduct.attribute_boolean.no
    Power supply
    • Posi­tion power supply
      Bidirec­tional

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration HNF981H
    PDF
    RoHS report HNF981H
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div HNF981H

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

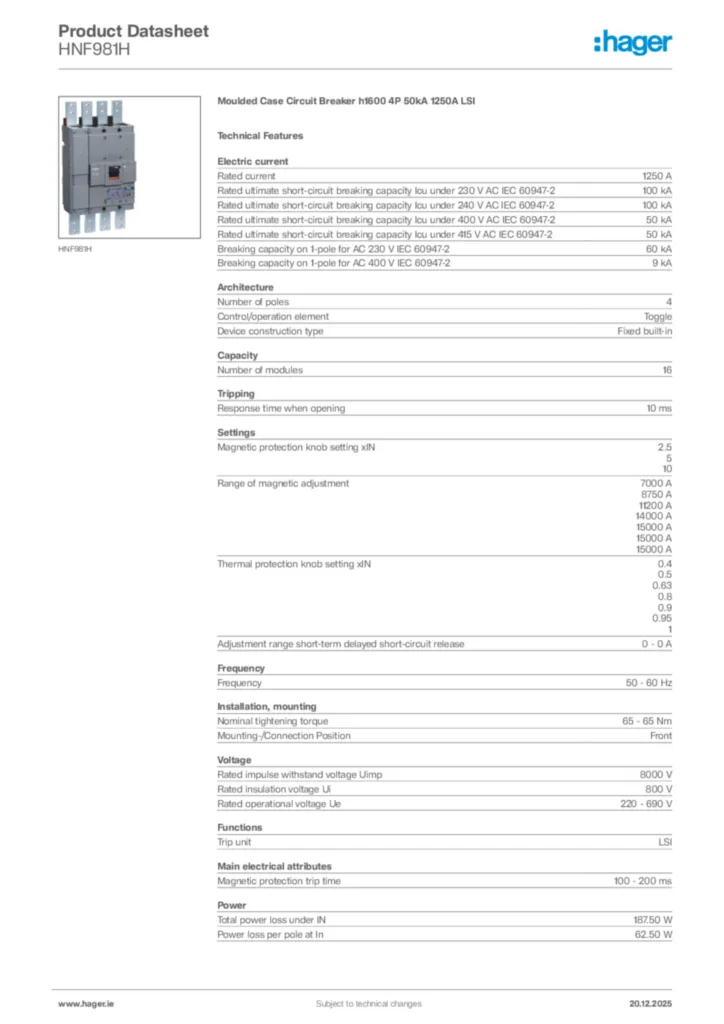

      Hager Product data sheet HNF981H

      Moulded Case Circuit Breaker h1600 4P 50kA 1250A LSI

      PDF

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      Declaration

      Declaration of conformity International 2022-06-23

      PDF
      287,24 kB
      catalog.pagelevel.alt_image.img

      Declaration of conformity en-US 2026-07-14

      PDF
      265,34 kB
