MCB 1P 15kA C-125A 1.5M HMC199

Name: HMC199
Brand: Hager
SKU: HMC199

EAN

3250613230159

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

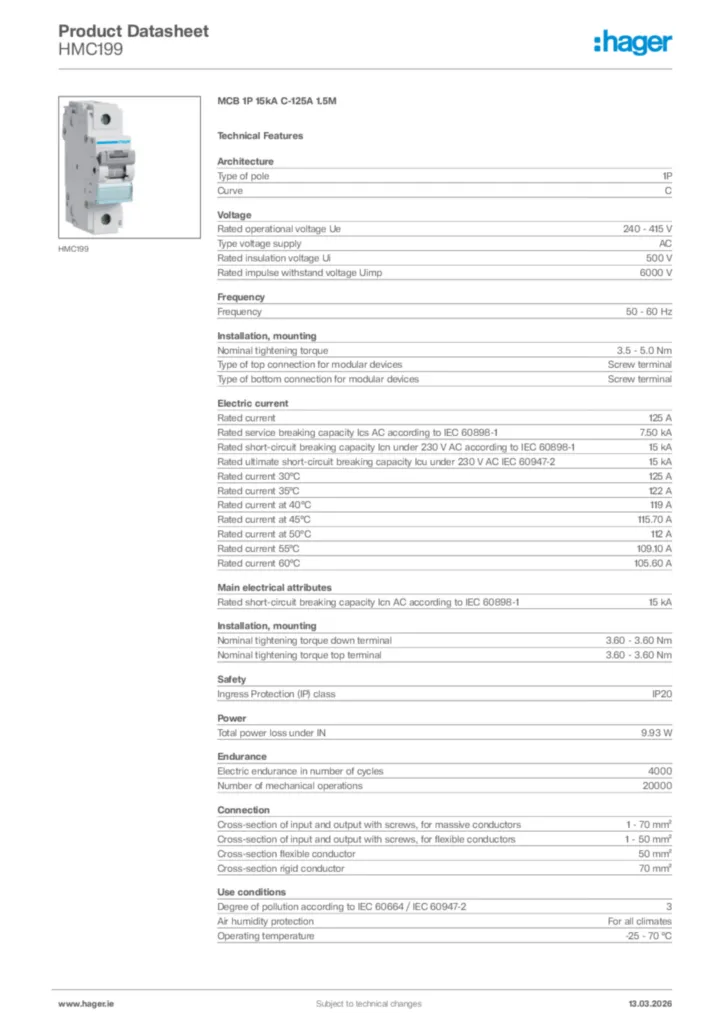

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Phase separation functions 1 products available
Terminal cover 1 products available
Mechanic accessories for low-voltage components 1 products available
Shunt release 1 products available
Auxiliaries contact block 2 products available

Technical properties

Type of pole

1P
Curve

C

Rated operational voltage Ue

240 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6,000 V

Frequency

50 - 60 Hz

Rated current

125 A
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

15 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

15 kA
Rated current 30°C

125 A
Rated current 35°C

122 A
Rated current at 40°C

119 A
Rated current at 45°C

115.70 A
Rated current at 50°C

112 A
Rated current 55°C

109.10 A
Rated current 60°C

105.60 A

Nominal tightening torque

3.5 - 5.0 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal
Nominal tightening torque down terminal

3.60 - 3.60 Nm
Nominal tightening torque top terminal

3.60 - 3.60 Nm

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

15 kA

Ingress Protection (IP) class

IP20

Total power loss under IN

9.93 W

Electric endurance in number of cycles

4,000
Number of mechanical operations

20,000

Cross-section of input and output with screws, for massive conductors

1 - 70 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 50 mm²
Cross-section flexible conductor

50 mm²
Cross-section rigid conductor

70 mm²

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Number of modules

1.50

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

90 mm
Width

27 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

REACh-SVHC free Yes
