            HEE800H - Moulded Case Circuit Breaker h1000 3P 70kA 800A LSI
            HEE800H - Moulded Case Circuit Breaker h1000 3P 70kA 800A LSI

            Moulded Case Circuit Breaker h1000 3P 70kA 800A LSI

            HEE800H

            HEE800H - Moulded Case Circuit Breaker h1000 3P 70kA 800A LSI
            HEE800H - Moulded Case Circuit Breaker h1000 3P 70kA 800A LSI
            • Switching and protective devices

            Moulded Case Circuit Breaker h1000 3P 70kA 800A LSI HEE800H

            EAN
            3250613349776
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products

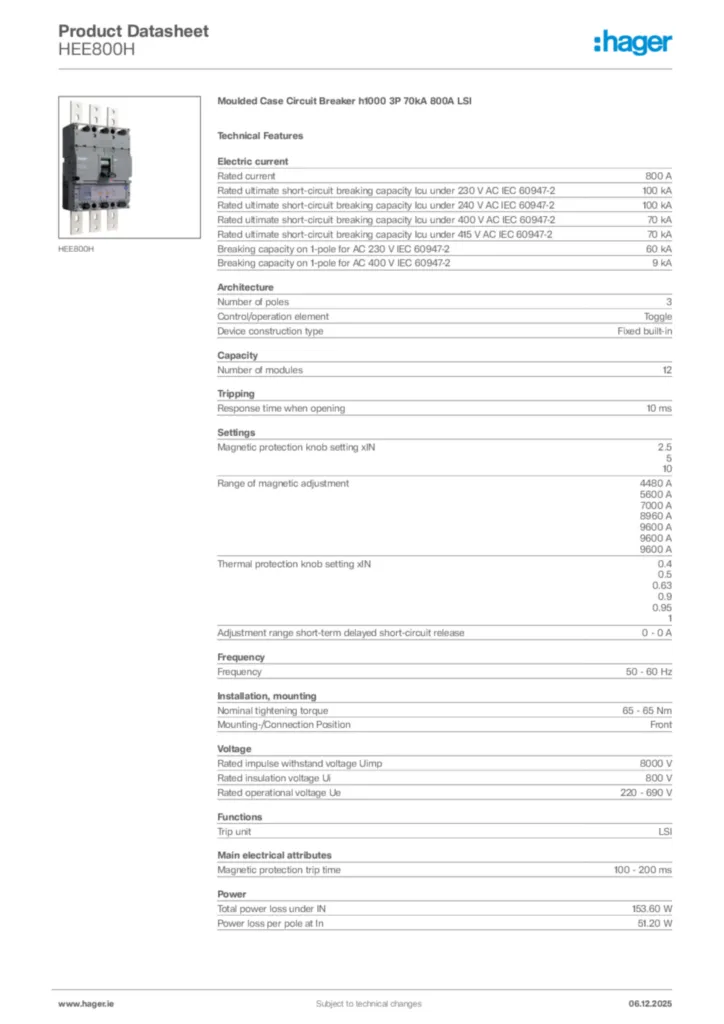

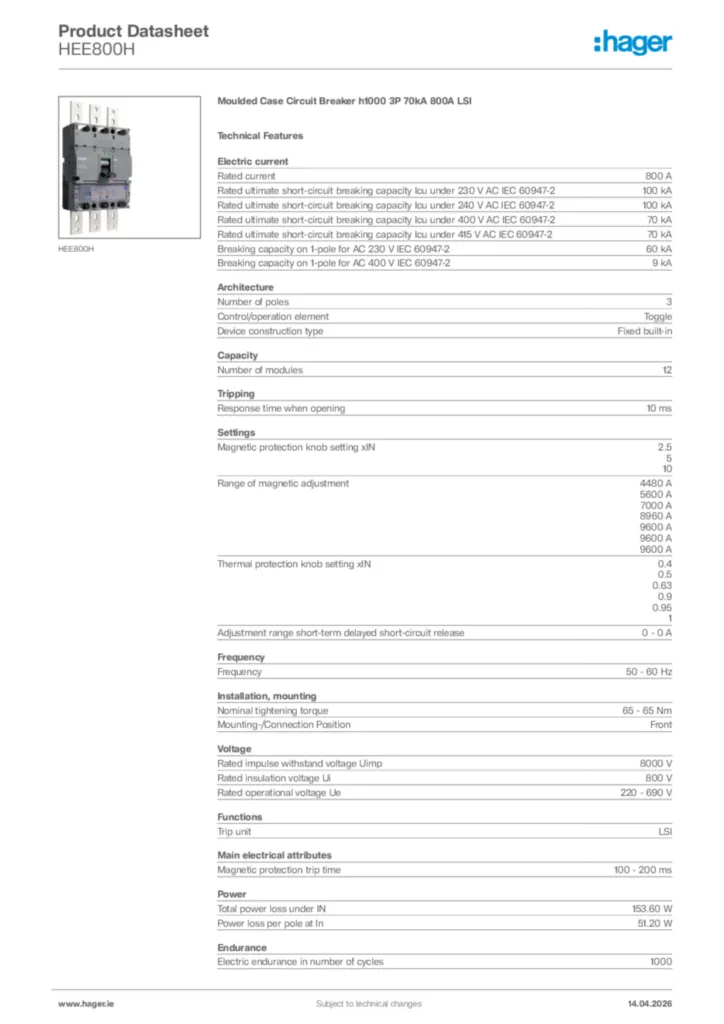

            Download the data sheet

            Complete your system

            Optional accessories

            • Auxil­i­aries inter­locking cable 2 products available
            • Shunt release 10 products available
            • Auxil­i­aries contact block 3 products available
            • Padlock barrier for switch 1 products available
            • Under voltage coil 10 products available
            • See more 8 other products available

            Complete your system

            • Auxil­i­aries inter­locking cable
            • Shunt release
            • Auxil­i­aries contact block
            • Padlock barrier for switch
            • Under voltage coil
            • Handle for power circuit breaker
            • Motor oper­ator
            • Locking inter­locking func­tions
            • Auxil­i­aries cable adaptor
            • Connec­tion Func­tions
            • HXB069H

              Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXD068H

              Electrical interlock for Motor type A (h400-h630-x630-P630-h800-h1000)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXC001H

              Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXC003H

              Shunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXC004H

              Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXC005H

              Shunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXC008H

              Shunt trip Release 110V DC (h250-h400-h630-h800-h1000)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXF001H

              Shunt trip Release h1600 24V DC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXF002H

              Shunt trip Release h1600 48V DC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXF003H

              Shunt trip Release h1600 100-120V AC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXF004H

              Shunt trip Release h1600 200-240V AC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXF005H

              Shunt trip Release h1600 380-450V AC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXC021H

              Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXC024H

              Alarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXC025H

              Auxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXD039H

              Padlock h400-h1000

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE011H

              UVR 24V DC (h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE013H

              UVR 110-120V AC (h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE014H

              UVR 220-240V AC (h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE015H

              UVR 380-415V AC (h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE018H

              UVR 100-120 V DC (h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE019H

              UVR 200-240 V DC (h800-h1000-h1600)

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE051H

              Undervoltage Release delayed h800-h1600 3P 24VDC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE053H

              Undervoltage Release delayed h800-h1600 3P 110-120VAC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE054H

              Undervoltage Release delayed h800-h1000 3P 220-240VAC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE055H

              Undervoltage Release delayed h800-h1600 3P 380-415VAC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE030H

              Direct rotary handle H800-H1000

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE031H

              Extended rotary handle H800-H1000

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE040H

              Motor operator h800-h1000 24-48V DC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE042H

              Motor operator H800-H1000 100-240VAC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXE065H

              Interlocking wire type H800-H1000

              0.00 €  / *
              Add to a list
              Add to a list
            • HYA035H

              Connecting kit 3P/4P

              0.00 €  / *
              Add to a list
              Add to a list
            • HYE007H

              Collar terminal h800/h1000 Al 3P 4x 95-240mm²

              0.00 €  / *
              Add to a list
              Add to a list
            • HYE031H

              Rear connexion H800-H1000 3P

              0.00 €  / *
              Add to a list
              Add to a list

            Technical properties

            Elec­tric current
            • Rated current
              800 A
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
              100 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
              100 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
              70 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
              70 kA
            • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
              60 kA
            • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
              9 kA
            Archi­tec­ture
            • Number of poles
              3
            • Control/­op­er­a­tion element
              Toggle
            • Device construc­tion type
              Fixed built-in
            Capa­city
            • Number of modules
              12
            Trip­ping
            • Response time when opening
              10 ms
            Settings
            • Magnetic protec­tion knob setting xIN
              2.5, 5, 10
            • Range of magnetic adjust­ment
              4480 A, 5600 A, 7000 A, 8960 A, 9600 A, 9600 A, 9600 A
            • Thermal protec­tion knob setting xIN
              0.4, 0.5, 0.63, 0.9, 0.95, 1
            • Adjust­ment range short-term delayed short-­cir­cuit release
              0 - 0 A
            Frequency
            • Frequency
              50 - 60 Hz
            Install­a­tion, mounting
            • Nominal tight­ening torque
              65 - 65 Nm
            • Mount­ing-/­Con­nec­tion Posi­tion
              Front
            Voltage
            • Rated impulse with­stand voltage Uimp
              8,000 V
            • Rated insu­la­tion voltage Ui
              800 V
            • Rated oper­a­tional voltage Ue
              220 - 690 V
            Func­tions
            • Trip unit
              LSI
            Main elec­trical attrib­utes
            • Magnetic protec­tion trip time
              100 - 200 ms
            Power
            • Total power loss under IN
              153.60 W
            • Power loss per pole at In
              51.20 W
            Endur­ance
            • Elec­tric endur­ance in number of cycles
              1,000
            • Number of mech­an­ical oper­a­tions
              4,000
            Equip­ment
            • Number of auxil­iary contacts as change-over contact
              0
            • Number of auxil­iary contacts as normally closed contact
              0
            • Number of auxil­iary contacts as normally open contact
              0
            Safety
            • Ingress Protec­tion (IP) class
              IP4X
            Use condi­tions
            • Oper­ating temper­ature
              -25 - 70 °C
            Connec­tion
            • Cross-sec­tion flex­ible conductor
              2x 240 mm²
            • Cross-sec­tion rigid conductor
              2x 240 mm²
            • Connect­or/plug type
              Terminal
            Controls and indic­ators
            • Motor drive integ­rated
              No
            Compat­ib­ility
            • Suit­able for DIN Rail
              No
            Power supply
            • Posi­tion power supply
              Bidirec­tional

            Environmental value

            We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

            Certifications and documents

            REACH declaration HEE800H (english)
            PDF
            103,10 kB
            RoHS declaration HEE800H (english)
            PDF
            103,59 kB

            Downloads

            • Product image

              Image HEE800H  | Hager

              Product Image HEE800H

            • Declaration of conformity

              Image Declaration  | Hager

              Declaration

              Declaration of conformity International 2022-06-23

              PDF
              311,82 kB
            More documentation

            Discover more of this product range

              5
            • 1
              HDA014Z - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D  16A 18kA CTC
              HDA014Z
              Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 18kA CTC
            • 2
              HDA016L - Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D  16A 18kA CTC
              HDA016L
              Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D 16A 18kA CTC
            • 3
              HDA017L - Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D  16A 18kA CTC
              HDA017L
              Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 16A 18kA CTC
            • 4
              HDA018Z - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D  20A 18kA CTC
              HDA018Z
              Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 20A 18kA CTC
            • 5
              HDA020L - Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D  20A 18kA CTC
              HDA020L
              Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D 20A 18kA CTC

            Products

            • Commercial Distribution
            • Modular Devices and Connection
            • Lighting Connection and Control
            • Residential Distribution
            • Wiring Accessories
            • References

            Solutions

            • Single house
            • Multi-residential
            • Office
            • Hotel
            • Other

            Support

            • FAQs
            • Contact us
            • Catalogues
            • Download center
            • Training
            • How-to videos

            Who we are

            We deliver safe and simple electrical solutions, from energy distribution to lighting control and wiring accessories systems for commercial and residential buildings. We want to make life on our planet safer, cleaner and more enjoyable. While being easy to work with, we remain by your side throughout the entire project, cooperating, collaborating and co-creating with you.



            More about us

            Fol­low us

              • Privacy
              • Cookies
              • Report a vulnerability
              • Hagergroup

            Hager Ltd, Unit M2 Furry Park Industrial Estate, Santry, Dublin D09 NY19, Ireland
