Shunt trip Release 24V DC (h250-h400-h630-h800-h1000) HXC001H
EAN
3250613369415
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 12 products available
Referenced by
-
HCE800HSwitch h1000 3P 800A
-
HCE970HSwitch h1000 3P 1000A
-
HNE800HMoulded Case Circuit Breaker h1000 3P 50kA 800A LSI
-
HEE801HMoulded Case Circuit Breaker h1000 4P 70kA 800A LSI
-
HNE971HMoulded Case Circuit Breaker h1000 4P 50kA 1000A LSI
-
HNE801HMoulded Case Circuit Breaker h1000 4P 50kA 800A LSI
-
HCE801HSwitch h1000 4P 800A
-
HCE971HSwitch h1000 4P 1000A
-
HEE971HMoulded Case Circuit Breaker h1000 4P 70kA 1000A LSI
-
HEE970HMoulded Case Circuit Breaker h1000 3P 70kA 1000A LSI
-
HEE800HMoulded Case Circuit Breaker h1000 3P 70kA 800A LSI
-
HNE970HMoulded Case Circuit Breaker h1000 3P 50kA 1000A LSI
Technical properties
Power
-
Inrush power absorbed0.72 VA
Safety
-
Ingress Protection (IP) classIP4X
Voltage
-
Command voltage AC0 - 0 V
-
Command voltage DC24 - 24 V
-
Rated operational voltage Ue0 - 0 V
-
Rated operational voltage in DC24 - 24 V
Downloads
-
Product image
-
Product datasheet

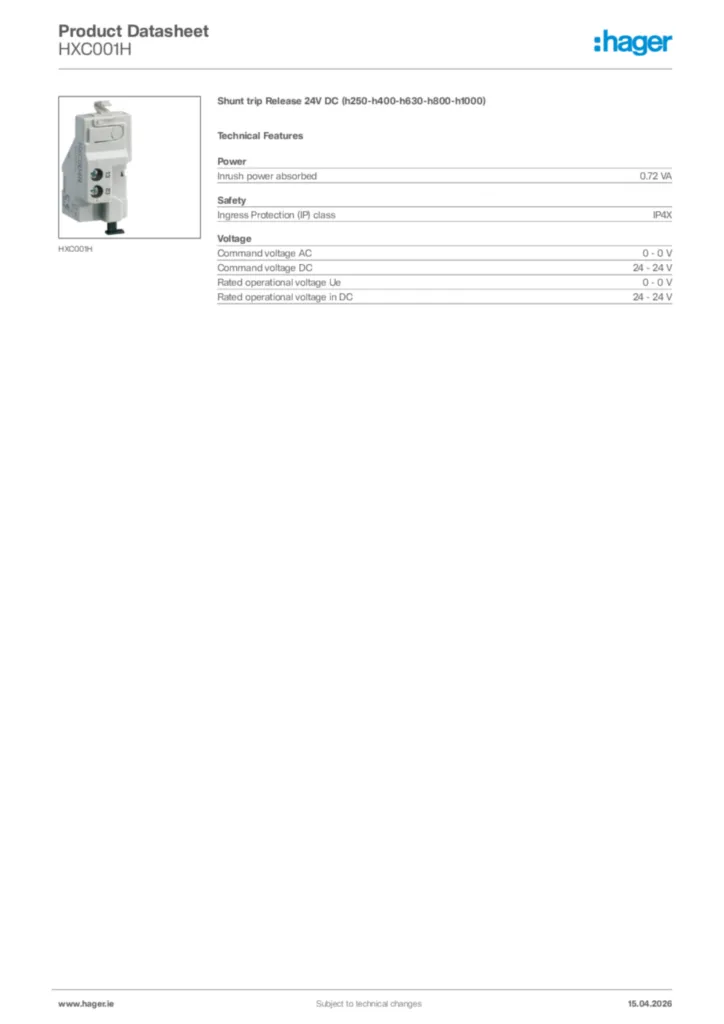

Hager Product data sheet HXC001H
Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-20
PDF329,36 kB
