    • catalog.pagelevel.title_breadcrumb.home
    • catalog.pagelevel.title_breadcrumb.first
    • Distri­bu­tion systems
    • Cabinets up to 1600A
    • Free-standing cabinets
    • FR21E2
    catalog.pageproduct.product.info.ean
    3250610700976
    catalog.pageproduct.product.info.packqty
    1 catalog.pageproduct.product_base_unit_piece.span
    • Free-standing cabinets

    Steel enclosure, Univers, IP55, CL1, 1850x300x275 mm, plinth H200 mm FR21E2

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Steel enclosure, Univers, IP55, CL1, 1850x300x275 mm, plinth H200 mm

    FR21E2

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (19)
    • Gland plate for enclosure 1 product.page.accessories.products-available
    • Insert for lock system 2 product.page.accessories.products-available
    • Touch-up stick 1 product.page.accessories.products-available
    • Lock system 6 product.page.accessories.products-available
    • Docu­ment holder 2 product.page.accessories.products-available
    • Cable gland 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Gland plate for enclosure
    • Insert for lock system
    • Touch-up stick
    • Lock system
    • Docu­ment holder
    • Cable gland
    • Base/­base element
    • Mounting accessories
    • DIN rail
    • Compon­ents for wiring, cable entry and cable fixing
    • Compon­ents for arrange­ment/baying system
    • FZ422

      Metal cable entry plate CL1, Univers, IP55 230x120 mm
      €0.00  / *
    • FZ517

      Key lock insert, Quadro5, 6 mm
      €0.00  / *
    • FZ537PB

      Push Button Insert for sealing handle lock univers FZ537
      €0.00  / *
    • MES-LSTI7035

      Touch-up stick prepared 12ml RAL7035
      €0.00  / *
    • FZ537

      Rotary and sealing handle lock, Univers
      €0.00  / *
    • FZ519

      Euro-profile cylinder 405 for swing lever FZ537
      €0.00  / *
    • FZ506

      Euro-profile cylinder 1242E for swing lever FZ537
      €0.00  / *
    • MES-PHZ4K8

      Profile half cylinder square 8mm
      €0.00  / *
    • MES-PHZ3K7

      Profile half cylinder triangular 7mm
      €0.00  / *
    • MES-PHZDB3

      Profile half cylinder double-bit 3mm
      €0.00  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive
      €0.00  / *
    • FZ757A4

      Document holder, glued, DIN A4
      €0.00  / *
    • VZ020M

      Cable gland, vector, IP65, M20, plastic
      €0.00  / *
    • FZ641A

      Plinth, Univers, H200 300x275 mm
      €0.00  / *
    • FZ829

      Wall fixation lugs, Univers
      €0.00  / *
    • UN12A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 1800mm, 2 pieces
      €0.00  / *
    • FZ771A

      Adapter for vertical connection of 300mm wide FR/FS enclosures
      €0.00  / *
    • FZ7801

      Cable rail 1 section, Univers, L230 mm for plinth
      €0.00  / *
    • FZ721A

      Horizontal coupling kit, Univers, L275 mm
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Dimen­sions
    • Height
      2,050 mm
    • Width
      300 mm
    • Depth
      275 mm
    • Thick­ness of side­wall
      1.50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP55
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      Without lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      2
    • Number of rows
      12
    Install­a­tion, mounting
    • Mounting on
      Floor mounting
    • Suit­able for outdoor usage
      catalog.pageproduct.attribute_boolean.no
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      catalog.pageproduct.attribute_boolean.no
    • Cabinet door type
      Single door
    Elec­tric current
    • Rated current IN
      800 A
    Voltage
    • Nominal voltage
      690 - 690 V

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - FWB enclosure,UNIVERS range, 5-rows 180 modules (English)
    PDF
    49,47 MB
    REACH declaration FR21E2
    PDF
    RoHS report FR21E2
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div FR21E2

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

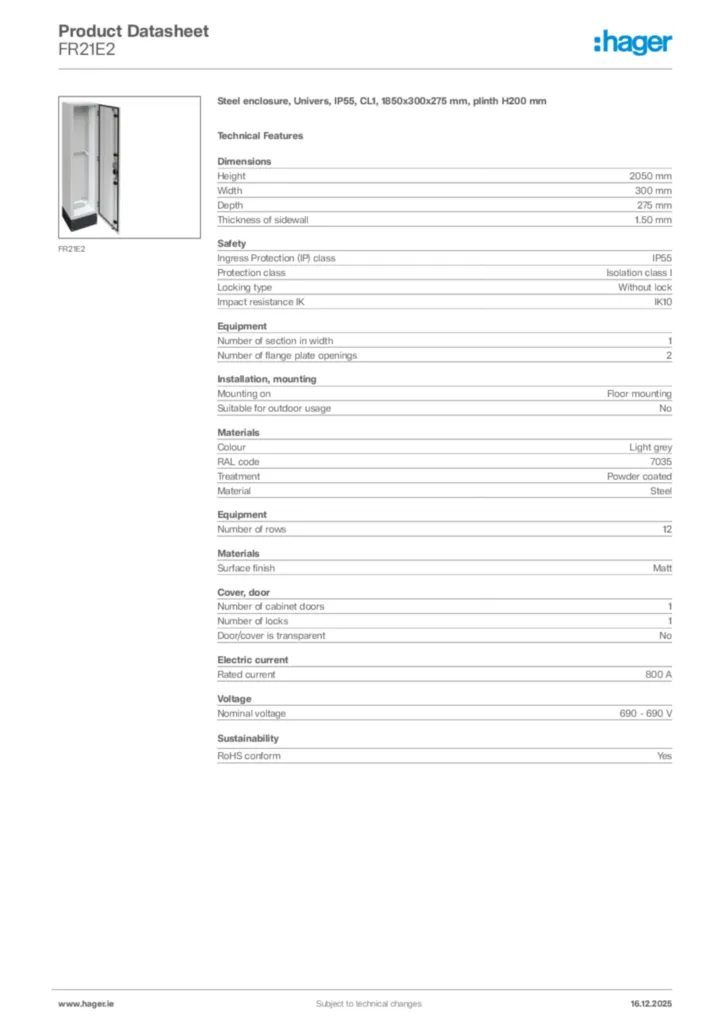

      Hager Product data sheet FR21E2

      Steel enclosure, Univers, IP55, CL1, 1850x300x275 mm, plinth H200 mm

      PDF

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      EU Declaration of Conformity

      Declaration of conformity en-GB 2026-10-01

      PDF
      781,05 kB
      catalog.pagelevel.alt_image.img

      EU Declaration of Conformity

      Declaration of conformity en-GB 2026-10-06

      PDF
      791,59 kB
