2 pole Changeoverswitch 63A I-0-II SF263
EAN-Nr.
3250615561008
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles2
-
Type of pole2P
Electric current
-
Rated current63 A
-
Rated conditional short-circuit current Icc with gl-gG fuses6 kA
Installation, mounting
-
Nominal tightening torque2,90 - 2,90 Nm
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Capacity
-
Number of modules4
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height90 mm
-
Width71,50 mm
-
Depth72 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts0
Use conditions
-
Operating temperature-25 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor16 mm²
-
Cross-section rigid conductor25 mm²
Endurance
-
Number of mechanical operations100000
-
Electrical durability at nominal load in AC21 in operating cycles5000
Power
-
Total power loss under IN3,60 W
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

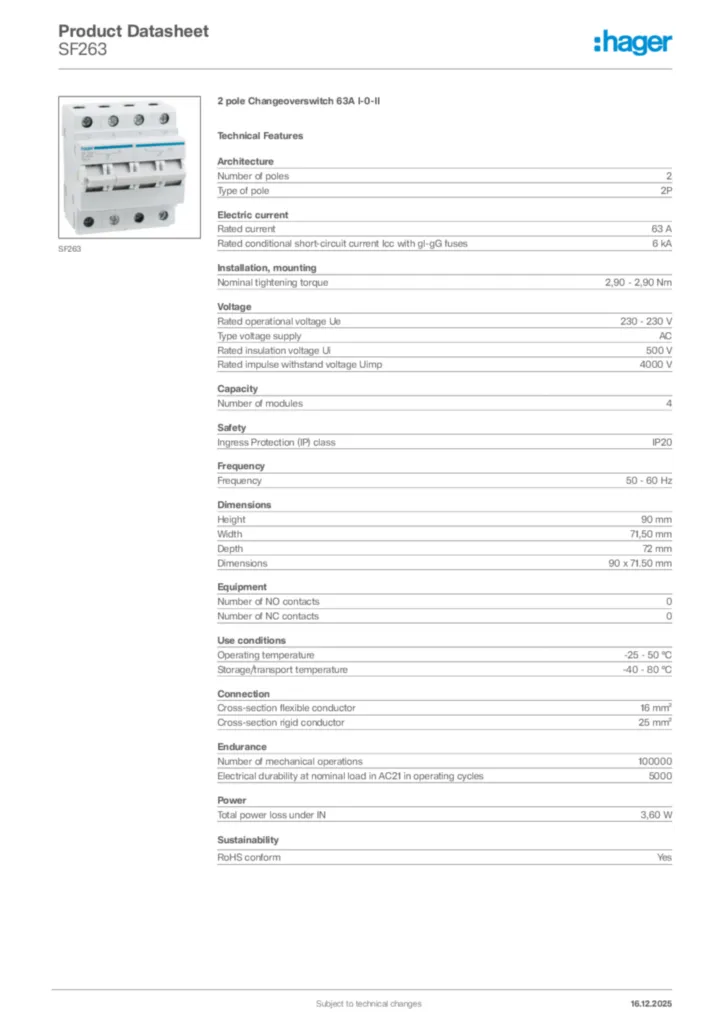

Product datasheet
