    • SF463
    EAN-Nr.
    3250615561015
    Packaging
    1 piece
    • Modular Changeover Switch

    4 pole Changeoverswitch 63A I-0-II SF463

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    4 pole Changeoverswitch 63A I-0-II

    SF463

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Archi­tec­ture
    • Number of poles
      4
    • Type of pole
      4P
    Elec­tric current
    • Rated current
      63 A
    • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
      6 kA
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2,90 - 2,90 Nm
    Voltage
    • Rated oper­a­tional voltage Ue
      400 - 400 V
    • Type voltage supply
      AC
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Capa­city
    • Number of modules
      8
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Height
      90 mm
    • Width
      143 mm
    • Depth
      72 mm
    Equip­ment
    • Number of NO contacts
      0
    • Number of NC contacts
      0
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 50 °C
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      16 mm²
    • Cross-sec­tion rigid conductor
      25 mm²
    Endur­ance
    • Number of mech­an­ical oper­a­tions
      100000
    • Elec­trical durab­ility at nominal load in AC21 in oper­ating cycles
      5000
    Power
    • Total power loss under IN
      7,20 W

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    2-pole, 63A Modular Switch
    PDF
    2,89 MB
    REACH declaration SF463
    PDF
    RoHS report SF463
    PDF

    Downloads

    • Image SF463 | Hager

      Product Image SF463

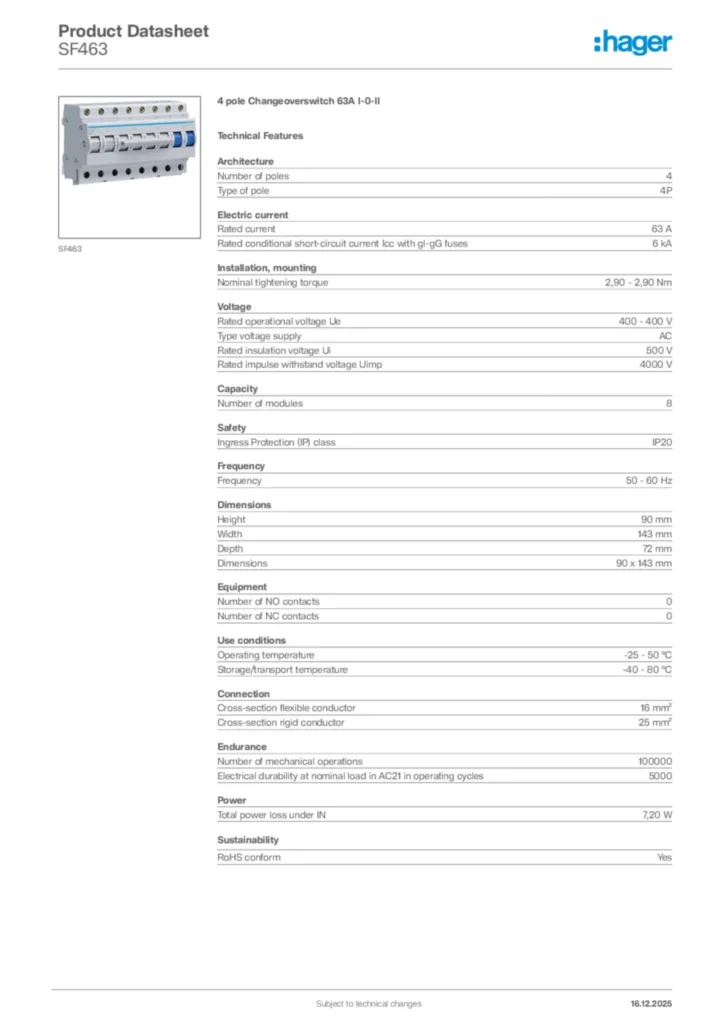

    • Product datasheet

      Image Hager Product data sheet SF463 | Hager

      Hager Product data sheet SF463

      4 pole Changeoverswitch 63A I-0-II

      PDF

    • Installation manual

      Image Installation manual | Hager

      Installation manual

      Specific for Australia

      PDF
      156,46 kB
      Image Inverseur Modulaire 63A SF463 | Hager

      Inverseur Modulaire 63A SF463

      Installation manual International 2019-01-22

      PDF
      158,64 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-04-24

      PDF
      697,86 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-02-03

      PDF
      803,57 kB
