Module 2 inputs flush mounted 230V KNX QL TRB302B
EAN
3250615989284
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (6)
Compatible products
-
Referenced by 6 products available
Accessories mandatory
-
181110Push-button, NO contact, TS, chrome glossy, brass galvanised
-
181112Push-button, NO contact, TS, gold glossy, 24-carat galvanised
-
181113Push-button, NO contact, TS, stainless steel matt, brushed nickel
-
19660215Push-button Black Diamond, TS Crystal, stainless steel matt
-

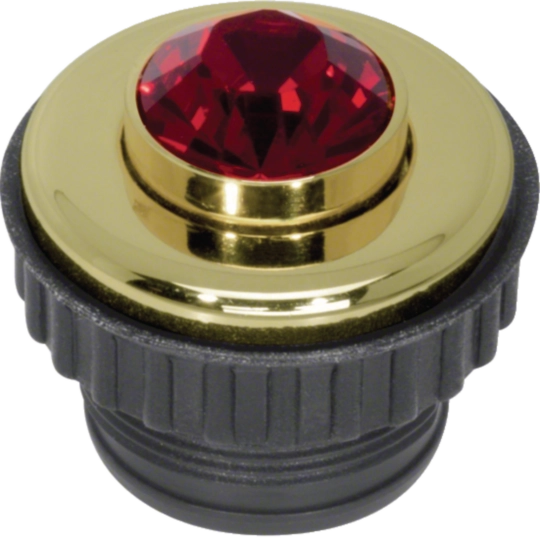

19650208Push-button Siam, TS Crystal, gold glossy
-

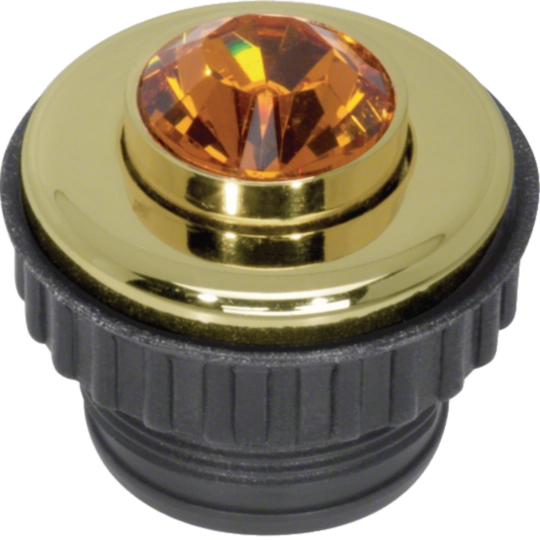

19650203Push-button Topaz, TS Crystal, gold glossy
Referenced by
-
181110
Push-button, NO contact, TS, chrome glossy, brass galvanised
-
181112
Push-button, NO contact, TS, gold glossy, 24-carat galvanised
-
181113
Push-button, NO contact, TS, stainless steel matt, brushed nickel
-
19660215
Push-button Black Diamond, TS Crystal, stainless steel matt
-
19650208
Push-button Siam, TS Crystal, gold glossy
-
19650203
Push-button Topaz, TS Crystal, gold glossy
Technical properties
Architecture
-
Bus systemRadio frequent
Settings
-
Supported configuration modeETS, easy
Electric current
-
Number of entry circuits2
Connectivity
-
With bus system KNX radioYes
Equipment
-
External signal voltage necessaryNo
-
Radio frequency bidirectionalNo
-
With batteryNo
-
With HVAC controlNo
Frequency
-
Frequency transmission868 - 868 MHz
Installation, mounting
-
Mounting onFlush mounting
Internal use only
-
Number of half modules of 17,5 mm0
Lighting
-
LED controllingNo
Materials
-
MaterialPlastic
-
ColourLight grey
-
RAL code7035
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Cable
-
Cable length0.20 m
Voltage
-
Input voltage5 - 5 V
-
Type voltage supplyAC
Texts
-
Installation modeFor installation behind flush-mounted inserts
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

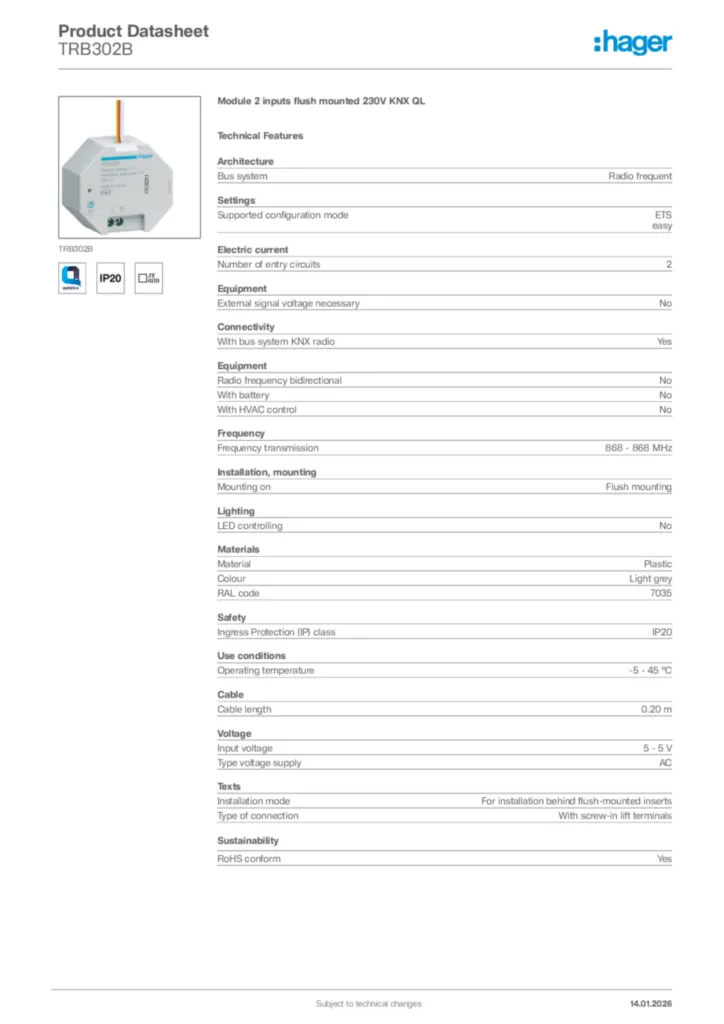

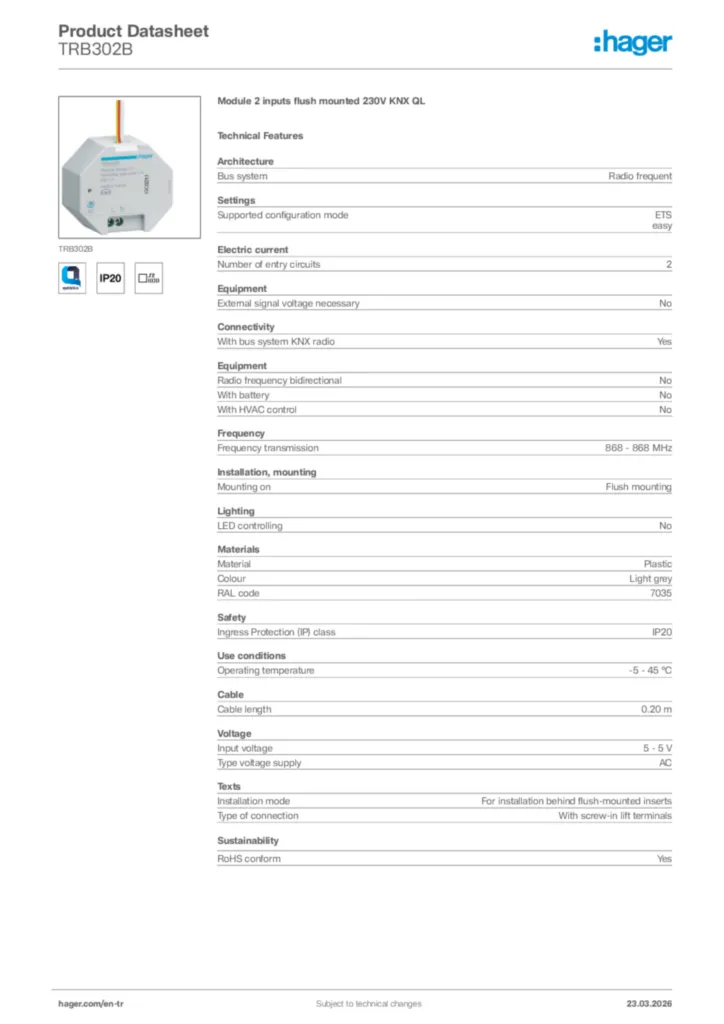

Hager Product data sheet TRB302B
Module 2 inputs flush mounted 230V KNX QL
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2013-05-13
PDF3,17 MB -
Product attachment
Configuration guide quicklink (DE-FR-IT-NL, 2016-02)
Product attachment International 2020-01-01
PDF1,18 MB
