Module 1 flush mounted output 200W, 2 wires + 2 inputs, KNX radio TRM690G
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
-
With bus system KNXNo
-
With bus system KNX radioYes
Settings
-
Supported configuration modeETS, easy, quicklink
Dimensions
-
Height18 mm
-
Width40 mm
-
Depth18 mm
-
Built-in depth40 mm
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalYes
-
With switch for manual switchYes
Electric current
-
Rated current0.85 A
Frequency
-
Frequency50 - 50 Hz
-
Radio reception frequency868.30 - 868.30 MHz
Power
-
Output power200 W
Voltage
-
Operating voltage230 - 230 V
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage230 V AC
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-15 - 45 °C
Connection
-
Cross-section rigid conductor0.5 - 2.5 mm²
-
Cross-section flexible conductor0.5 - 1.5 mm²
Texts
-
FunctionEasy additional functions: +6 scenes, Reset function (to factory setting)
-
Installation modeFor installation behind flush-mounted inserts
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

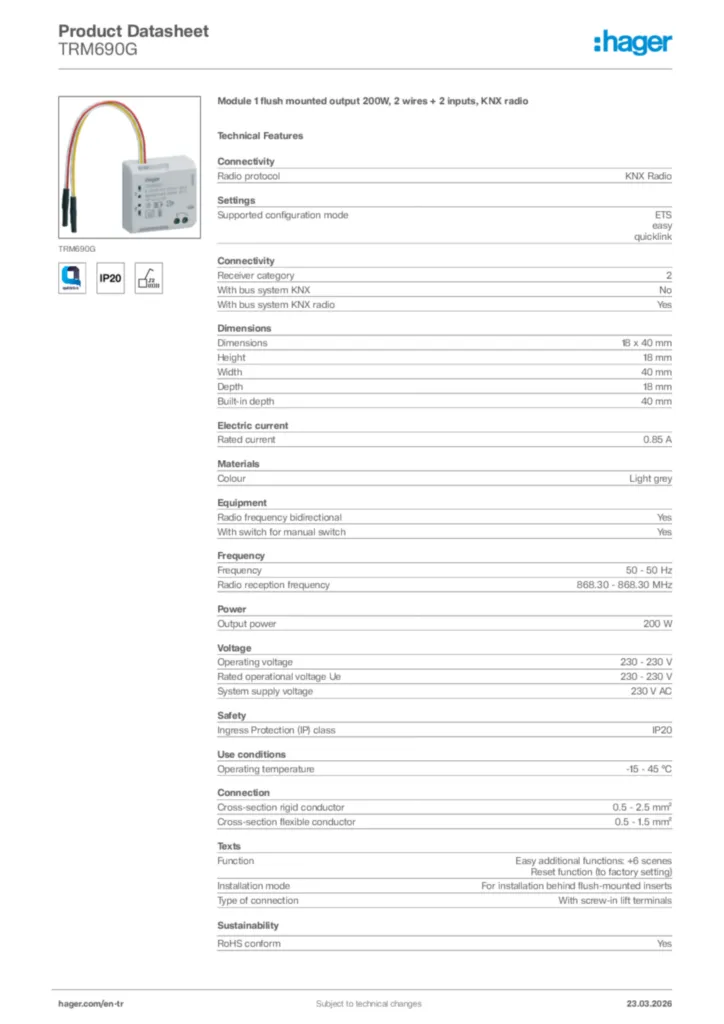

Hager Product data sheet TRM690G
Module 1 flush mounted output 200W, 2 wires + 2 inputs, KNX radio
PDF -
Installation manual
Installation manual en-GB, es-ES, pl-PL, pt-PT 2016-03-03
PDF11,15 MB
Installation manual en-GB, fr-FR, de-DE, nl-NL, sv-SE 2022-10-06
PDF1,14 MB -
Product attachment
Configuration guide quicklink (DE-FR-IT-NL, 2016-02)
Product attachment International 2020-01-01
PDF1,18 MB -
KNX product database
ETS Database for TRM690G
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01
KNXPROD384,11 kB -
Application Guide
Application description ETS-Easy TRM690G_TRM693G_TRM694G
Application Guide en-GB, pl-PL 2015-02-12
PDF6,41 MB -
Declaration of conformity
Declaration of conformity International 2022-10-04
PDF114,06 kB
Declaration of conformity International 2022-10-04
PDF146,08 kB
