    1 FLUSH MOUNTED OUTPUT 3A FOR SHUTTERS OR BLINDS + 2 INPUTS KNX RF TRM692G

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    1 FLUSH MOUNTED OUTPUT 3A FOR SHUTTERS OR BLINDS + 2 INPUTS KNX RF

    TRM692G

    • Technical properties
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Settings
    • Supported config­ur­a­tion mode
      quick­link
    Connectivity
    • With bus system KNX radio
      Yes
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Equip­ment
    • With switch for manual switch
      Yes
    Mater­ials
    • Colour
      Light grey
    Elec­tric current
    • Max. switching current
      3 A
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 50 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      0.5 - 1.5 mm²
    • Cross-sec­tion rigid conductor
      0.5 - 2.5 mm²
    Capa­city
    • Number of modules
      0
    Texts
    • Func­tion
      Easy addi­tional func­tions: +6 scenes, Repeat func­tion can be activ­ated to increase the radio range, Reset func­tion (to factory setting)
    • Type of connec­tion
      With screw-in lift terminals

    Downloads

    • Image TRM692G | Hager

      Product Image TRM692G

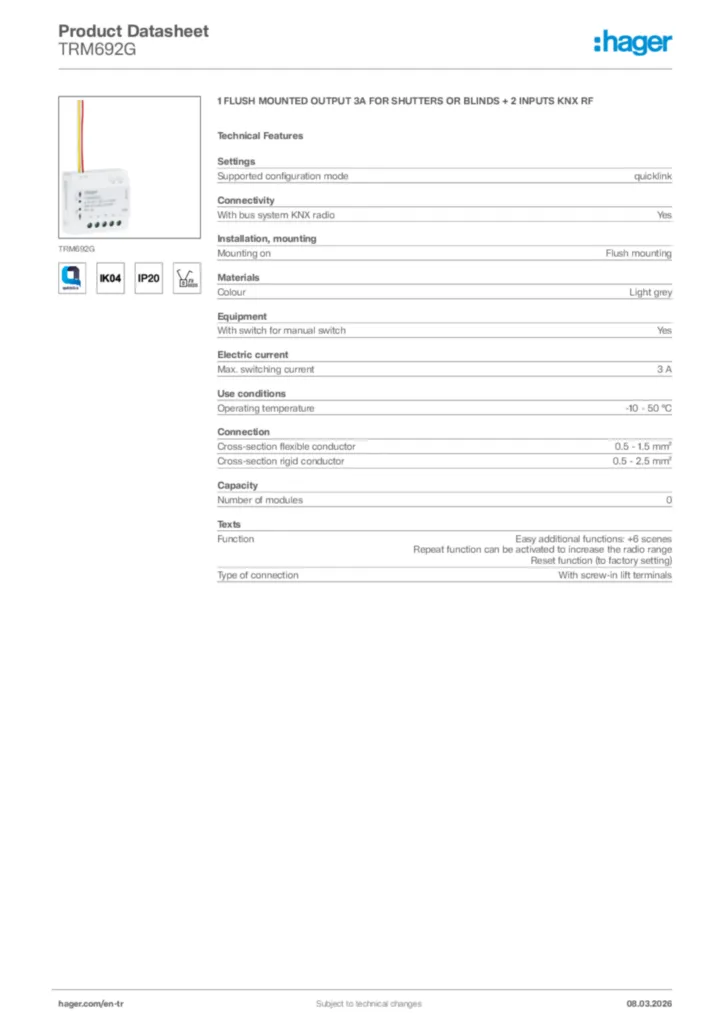

    • Product datasheet

      Image Hager Product data sheet TRM692G | Hager

      Hager Product data sheet TRM692G

      1 FLUSH MOUNTED OUTPUT 3A FOR SHUTTERS OR BLINDS + 2 INPUTS KNX RF

      PDF

    • Operating manual

      Image Operating manual en-GB, fr-FR, de-DE, it-IT, nl-NL 2018-06-20 | Hager

      Operating manual en-GB, fr-FR, de-DE, it-IT, nl-NL 2018-06-20

      PDF
      1,17 MB

    • Installation manual

      Image Installation manual en-GB, es-ES, pl-PL, pt-PT 2016-03-03 | Hager

      Installation manual en-GB, es-ES, pl-PL, pt-PT 2016-03-03

      PDF
      11,15 MB

    • Product attachment

      Image Configuration guide quicklink (DE-FR-IT-NL, 2016-02) | Hager

      Configuration guide quicklink (DE-FR-IT-NL, 2016-02)

      Product attachment International 2020-01-01

      PDF
      1,18 MB

    • KNX product database

      Image KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01 | Hager

      KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01

      KNXPROD
      486,73 kB

    • Application Guide

      Image Application description ETS-Easy TRM692G | Hager

      Application description ETS-Easy TRM692G

      Application Guide en-GB, pl-PL 2015-02-12

      PDF
      6,37 MB

    • Declaration of conformity

      Image Declaration of conformity International 2024-01-18 | Hager

      Declaration of conformity International 2024-01-18

      PDF
      131,29 kB
