Small distributor,golf,flush,2row,36M,IP40,QC-terminal,N+PE,white door VF218PTQ
EAN
3250616466715
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Busbar system for distribution boards 1 products available -
Cover/infill panel/identification strip 1 products available -
Mounting accessories 2 products available -
Common Accessories 1 products available -
See more 3 other products available
Complete your system

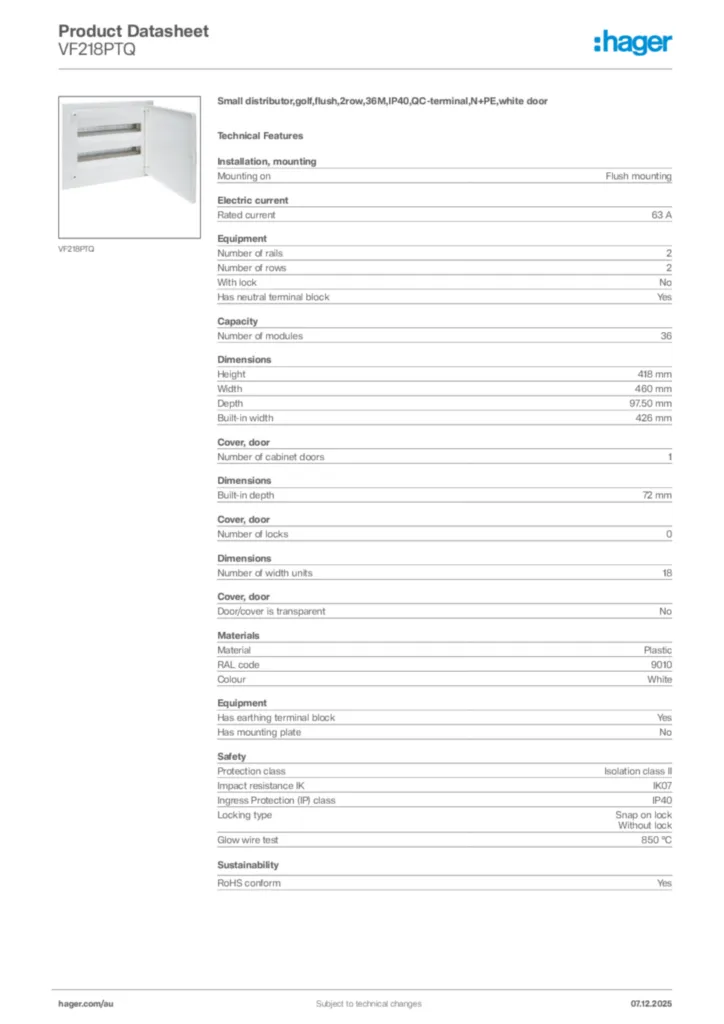

Technical properties
Installation, mounting
-
Mounting onFlush mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails2
-
Number of rows2
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules36
Dimensions
-
Height418 mm
-
Width460 mm
-
Depth97,50 mm
-
Built-in width426 mm
-
Built-in depth72 mm
-
Number of width units18
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentNo
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourWhite
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
-
Locking typeSnap on lock, Without lock
-
Glow wire test850 °C
Environmental value
