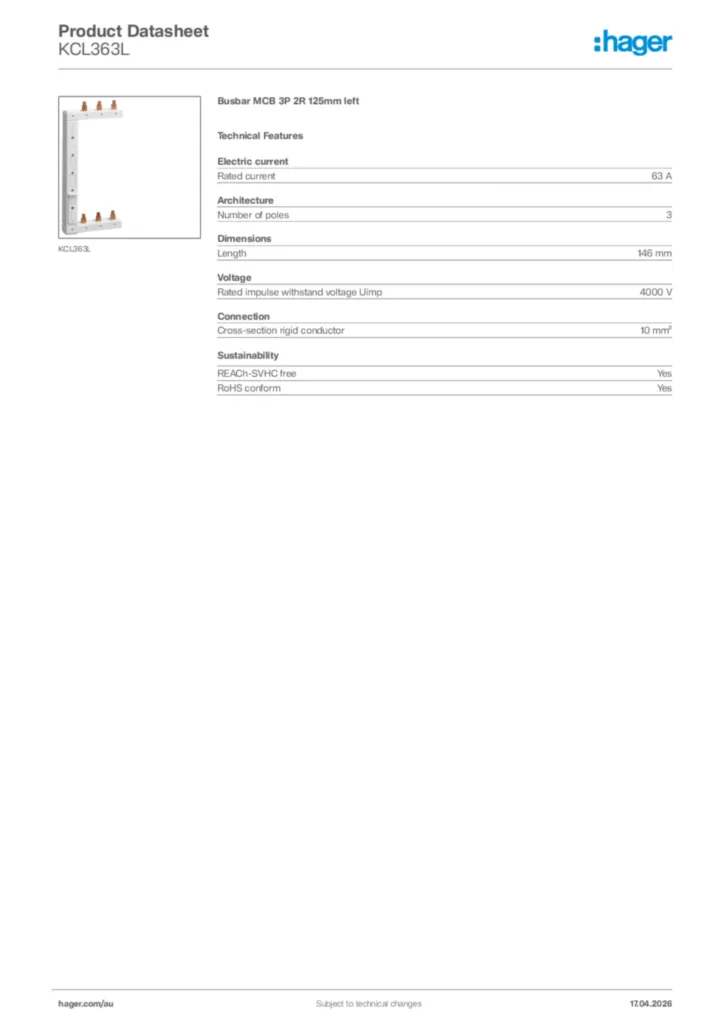

Busbar MCB 3P 2R 125mm left KCL363L
EAN
3250613730246
Packaging
8 PCEs
Login to create a product list
You need to be logged into your myHager account to create product lists
Please install KCL363L on the left hand side only fed from the bottom of the main switch.
The KCL363L vertical busbar is a cable replacement device – the installing electrican needs to ensure adequate conductor overcurrent / circuit protection is in place.
Not fully compatible with golf VF412PT and VF418PT - Suitable for all other two, three and four row Hager golf enclosures.
Suitable for Hager vector 12 module wide enclosures - not suitable for vector 18 module wide enclosures.
The space between DIN rows / devices needs to be 125mm for the KCL363L to align.
Not suitable for enclosures with 150mm spacing between DIN rows / devices.
Technical properties
Architecture
-
Number of poles3 P
-
Type of pole3 P
Compatibility
-
Intended for the compatible referencesModular vertical distribution
Main electrical features
-
Rated operational voltage Ue110 / 415 V
Voltage
-
Max operating voltage456 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Rated current63 A
Dimensions
-
Length146 mm
-
Pitch17.8 mm
Power supply
-
Number of phases for the power supply3-phase
Installation, mounting
-
Mounting wayvertical left hand side
-
Suitable to a device with an auxiliaryNo
Connection
-
Connection cross-sect. rigid cable10mm²
-
Suitable for product with neutral busbarNo
-
Connector typebusbar prong
-
Type of connection-
Cable
-
Conductor Size10 mm²
Safety
-
REACH conformYes
-
RoHS conformYes
Use conditions
-
InsulatedYes
