The Hager MCB 3P 40A D-curve 3M provides robust protection for three-phase circuits, ideal for motors and high-inrush loads in commercial/industrial installations. Breaking capacities: 10kA (IEC 60898-1) and 15kA Icu (IEC 60947-2) at 400V AC. Ui 500V, Uimp 6kV, 50/60Hz. Compact 3 modules, IP20, −25…70°C, 360° mounting. Screw/biconnect terminals accept 1-35 mm², 2.8 Nm. Endurance: 20,000 mech/4,000 elec. For installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250614619281
Packaging
4
Hager MCB 3P 40A Curve D 10kA IEC60898-1 / 15kA IEC60947-2 3 modules NDN340A
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Phase separation functions 1 products available -
Terminal cover 1 products available -
Under voltage coil 1 products available -
Shunt release 2 products available -
Auxiliaries contact block 2 products available
Complete your system
Technical properties
Electric current
-
Rated current40 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-215 kA
-
Rated current 30°C40 A
Architecture
-
Type of pole3P
-
CurveD
Capacity
-
Number of modules3
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Installation, mounting
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
-
Grid distance60 mm
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN10,10 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width52,50 mm
-
Depth70 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

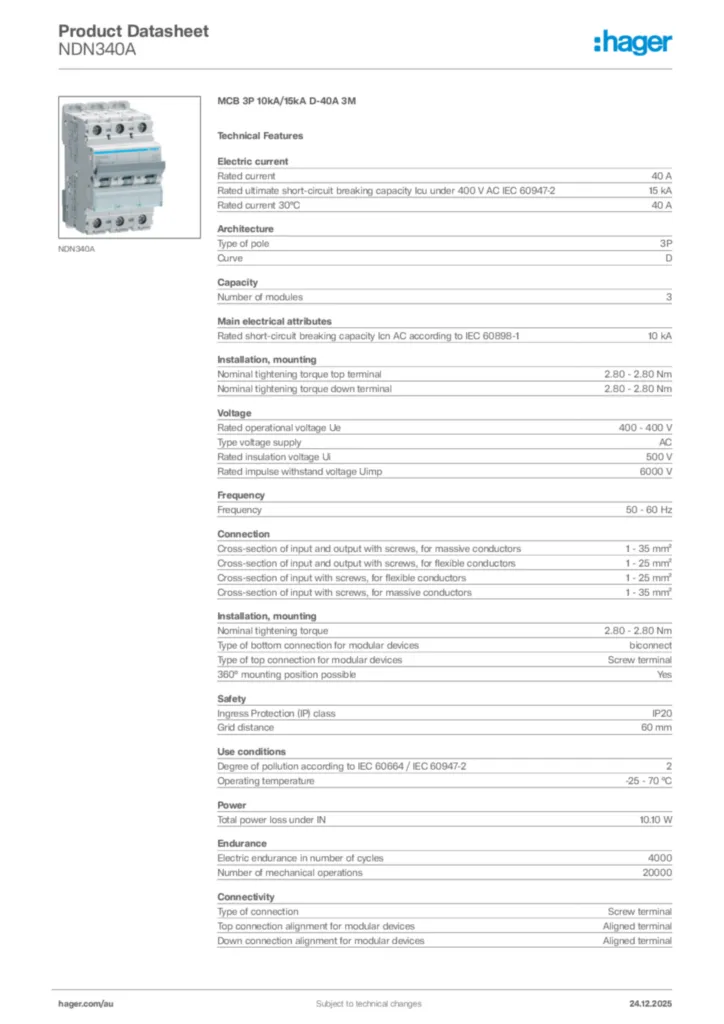

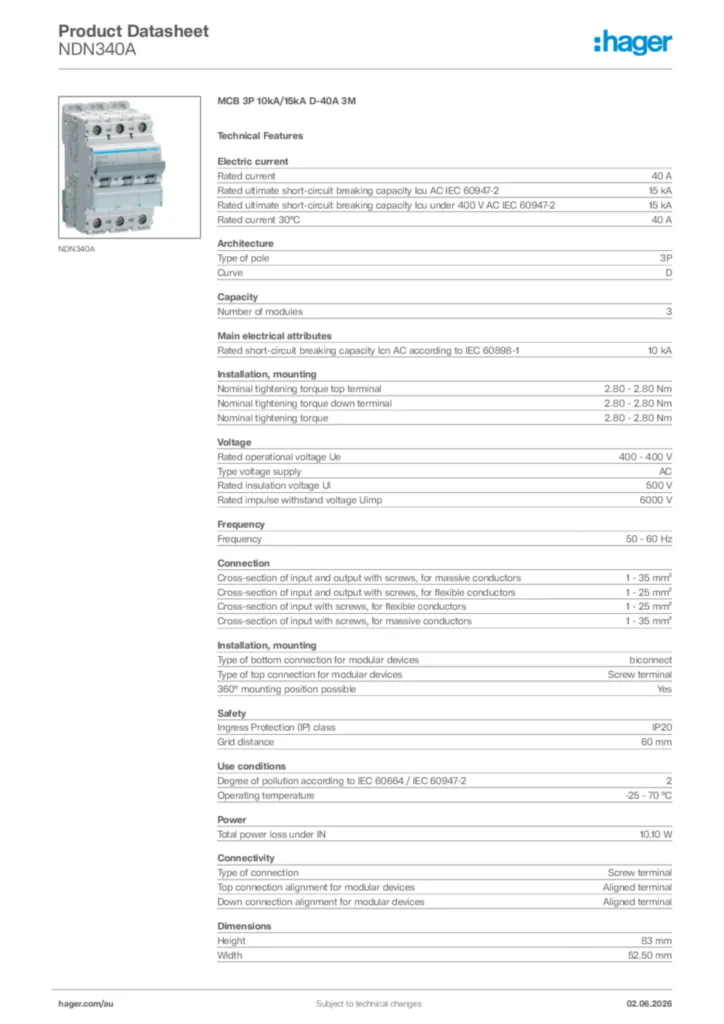

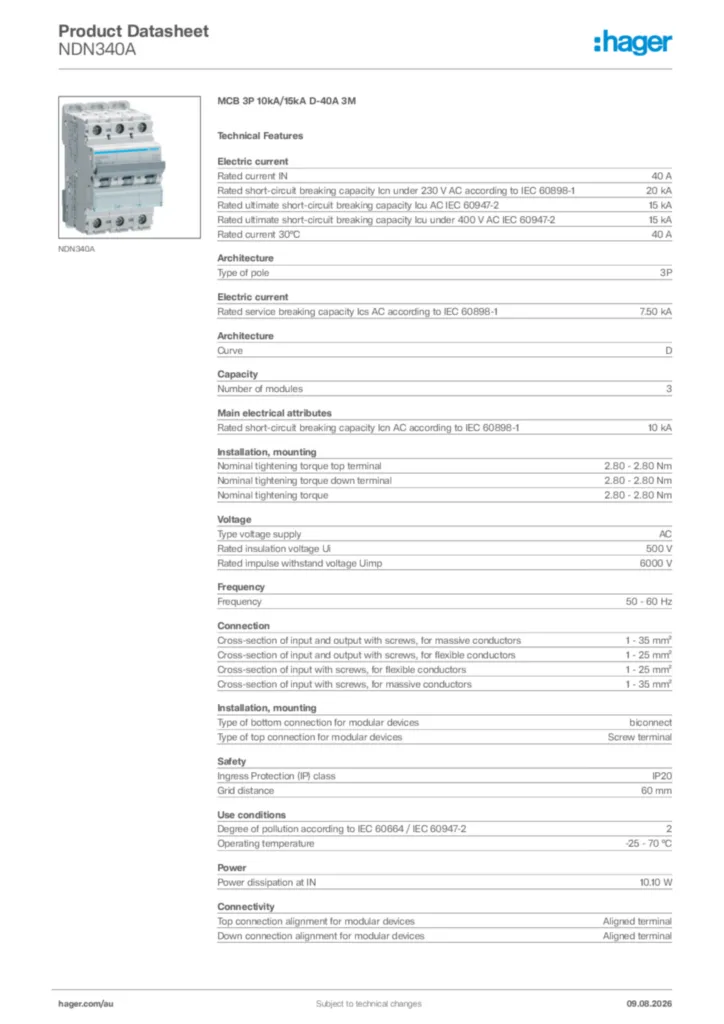

Hager Product data sheet NDN340A
