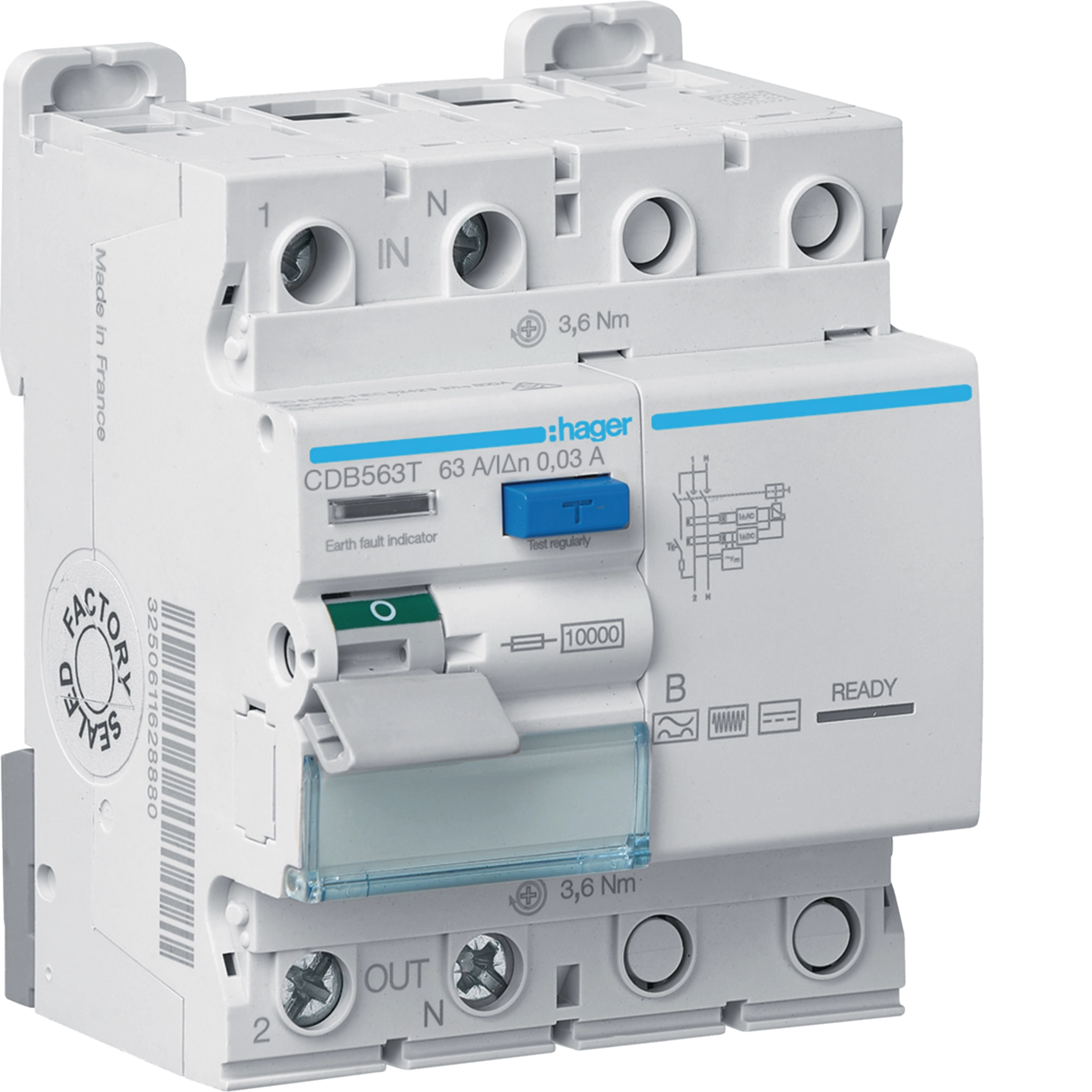

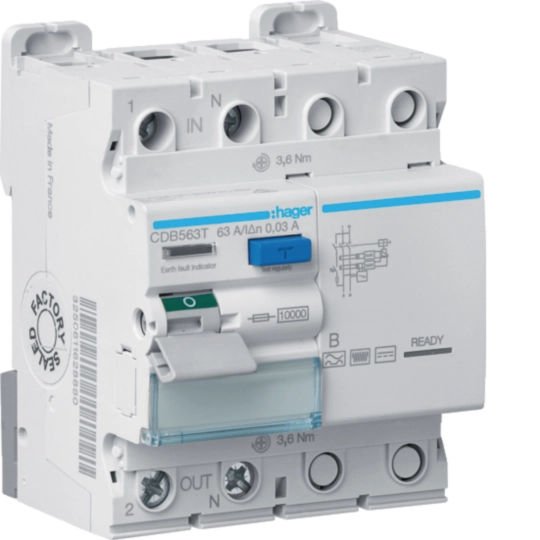

RCCB 1P+N 63A 30mA B CDB563T
EAN
3250611628903
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Phase separation functions 1 products available -
See more 1 other products available
Complete your system
Technical properties
Architecture
-
Type of pole1P+N
Electric current
-
Rated current63 A
-
Rated residual operating current Idn30 mA
-
Breaking and opening capacity Idm0,80 kA
-
Rated conditional short-circuit current Inc according to EN61008-110 kA
-
Rated current -25°C63 A
-
Rated current at -20°C63 A
-
Rated current -15°C63 A
-
Rated current -10°C63 A
-
Rated current -5°C63 A
-
Rated current at 0°C63 A
-
Rated current 5°C63 A
-
Rated current 10°C63 A
-
Rated current 15°C63 A
-
Rated current at 20°C63 A
-
Rated current 25°C63 A
-
Rated current 30°C63 A
-
Rated current 35°C63 A
-
Rated current at 40°C63 A
-
Rated current at 45°C63 A
-
Rated current at 50°C63 A
-
Rated current 55°C63 A
-
Rated current 60°C63 A
-
Rated current 65°C55 A
-
Rated current 70°C50 A
Installation, mounting
-
Nominal tightening torque top terminal3,60 - 3,60 Nm
-
Nominal tightening torque down terminal3,60 - 3,60 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Voltage
-
Rated operational voltage Ue230 - 240 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui400 V
-
Dielectric strength value of power frequency2 kV
-
Rated impulse withstand voltage Uimp4000 V
-
Max. operating voltage253 V
Frequency
-
Frequency50 - 50 Hz
Capacity
-
Number of modules4
Compatibility
-
Suitable for DIN RailYes
Safety
-
Residual current typeB
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of output with screws, for massive conductors1 - 25 mm²
-
Cross-section of output with screws, for flexible conductors1 - 16 mm²
Power
-
Total power loss under IN6,64 W
Use conditions
-
Max. Altitude2000 m
-
Operating temperature-25 - 70 °C
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height85 mm
-
Width72 mm
-
Depth70 mm
