RCCB 2P 25A 30mA A Class CDA225T

Name: CDA225T
Brand: Hager
SKU: CDA225T1

EAN

3250611615446

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Optional accessories

Auxiliaries contact block 1 products available
Busbar system for distribution boards 2 products available
Mechanic accessories for low-voltage components 1 products available
Shunt release 2 products available
Under voltage coil 1 products available
See more 1 other products available

Technical properties

Type of pole

1P+N

Rated current

25 A
Rated residual operating current Idn

30 mA
Breaking and opening capacity Idm

1,50 kA
Rated conditional short-circuit current Inc according to EN61008-1

6 kA
Rated current -25°C

25 A
Rated current at -20°C

25 A
Rated current -15°C

25 A
Rated current -10°C

25 A
Rated current -5°C

25 A
Rated current at 0°C

25 A
Rated current 5°C

25 A
Rated current 10°C

25 A
Rated current 15°C

25 A
Rated current at 20°C

25 A
Rated current 25°C

25 A
Rated current 30°C

25 A
Rated current 35°C

25 A
Rated current at 40°C

25 A
Rated current at 45°C

25 A
Rated current at 50°C

25 A
Rated current 55°C

25 A
Rated current 60°C

25 A
Rated current 65°C

25 A
Rated current 70°C

21 A

Nominal tightening torque top terminal

2,80 - 2,80 Nm
Nominal tightening torque down terminal

2,80 - 2,80 Nm

Rated operational voltage Ue

230 - 230 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V

Frequency

50 - 50 Hz

Number of modules

2

Suitable for DIN Rail

Yes

Residual current type

A
Ingress Protection (IP) class

IP20

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect
Nominal tightening torque

2,80 - 2,80 Nm

Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²

Total power loss under IN

2,32 W

Altitude

2000 m

Electric endurance in number of cycles

2000
Number of mechanical operations

4000

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

REACH declaration CDA225T (english)

PDF

103,10 kB

RoHS declaration CDA225T (english)

PDF

103,84 kB

Downloads

Product image

Product Image CDA225T
Installation manual

Installation manual en-GB 2023-01-16

PDF

1,43 MB

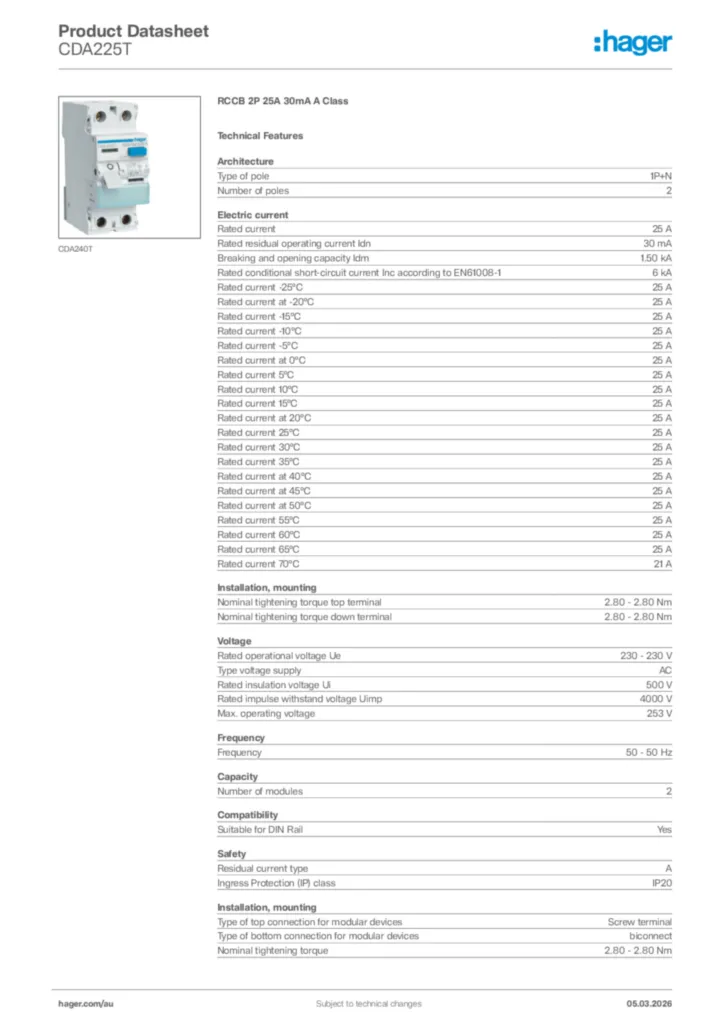

Product data sheet

CDA_CD_CExxxT Product Data and Specifications

Product data sheet en-GB 2017-02-13

PDF

70,39 kB
Declaration of conformity

Declaration

Declaration of conformity International 2023-03-17

PDF

717,91 kB
