RCCB 2P 40A 30mA A Class CDA240T

EAN
3250611615453
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

RCCB 2P 40A 30mA A Class

CDA240T

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Locking inter­locking func­tions 1 products available
  • Mech­anic accessories for low-­voltage compon­ents 1 products available
  • Under voltage coil 1 products available
  • Shunt release 2 products available
  • Auxil­i­aries contact block 1 products available
  • Busbar system for distri­bu­tion boards 2 products available

Complete your system

  • Locking inter­locking func­tions
  • Mech­anic accessories for low-­voltage compon­ents
  • Under voltage coil
  • Shunt release
  • Auxil­i­aries contact block
  • Busbar system for distri­bu­tion boards
  • MZN175

    Padlockable locking kit for MCB, RCCB and RCBO
    EUR 0.00  / *
  • LZ060

    Heat dissipation insert
    EUR 0.00  / *
  • MZ206

    Under voltage release 230V AC
    EUR 0.00  / *
  • MZ204

    Shunt trip 24-48V AC 12-48V DC
    EUR 0.00  / *
  • MZ203

    Shunt trip 230-415V AC 110-130V DC
    EUR 0.00  / *
  • CZ001

    Auxiliary contact for RCCB 2(1C+1O) 6A 240V AC
    EUR 0.00  / *
  • KM03A

    Neutral Link (RCD)
    EUR 0.00  / *

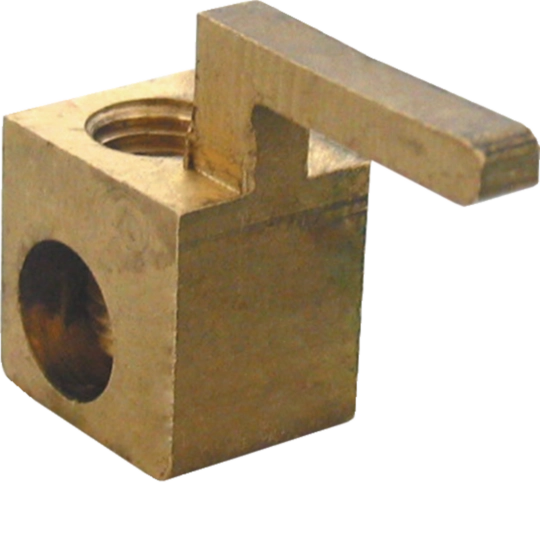

  • KM035

    EUR 0.00  / *

Technical properties

Archi­tec­ture
  • Type of pole
    1P+N
Elec­tric current
  • Rated current
    40 A
  • Rated residual oper­ating current Idn
    30 mA
  • Breaking and opening capa­city Idm
    1,50 kA
  • Rated condi­tional short-­cir­cuit current Inc according to EN61008-1
    6 kA
  • Rated current -25°C
    40 A
  • Rated current at -20°C
    40 A
  • Rated current -15°C
    40 A
  • Rated current -10°C
    40 A
  • Rated current -5°C
    40 A
  • Rated current at 0°C
    40 A
  • Rated current 5°C
    40 A
  • Rated current 10°C
    40 A
  • Rated current 15°C
    40 A
  • Rated current at 20°C
    40 A
  • Rated current 25°C
    40 A
  • Rated current 30°C
    40 A
  • Rated current 35°C
    40 A
  • Rated current at 40°C
    40 A
  • Rated current at 45°C
    38 A
  • Rated current at 50°C
    37 A
  • Rated current 55°C
    34 A
  • Rated current 60°C
    30 A
  • Rated current 65°C
    26 A
  • Rated current 70°C
    21 A
Install­a­tion, mounting
  • Nominal tight­ening torque top terminal
    2,80 - 2,80 Nm
  • Nominal tight­ening torque down terminal
    2,80 - 2,80 Nm
  • Type of top connec­tion for modular devices
    Screw terminal
  • Type of bottom connec­tion for modular devices
    bicon­nect
  • Nominal tight­ening torque
    2,80 - 2,80 Nm
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • Type voltage supply
    AC
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4000 V
  • Max. oper­ating voltage
    253 V
Frequency
  • Frequency
    50 - 50 Hz
Capa­city
  • Number of modules
    2
Compat­ib­ility
  • Suit­able for DIN Rail
    Yes
Safety
  • Residual current type
    A
  • Ingress Protec­tion (IP) class
    IP20
Connec­tion
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 - 25 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 - 16 mm²
  • Cross-sec­tion flex­ible conductor
    16 mm²
  • Cross-sec­tion rigid conductor
    25 mm²
Power
  • Total power loss under IN
    6,24 W
Use condi­tions
  • Max. Alti­tude
    2000 m
Endur­ance
  • Elec­tric endur­ance in number of cycles
    2000
  • Number of mech­an­ical oper­a­tions
    4000
Connectivity
  • Type of connec­tion
    Screw terminal
  • Top connec­tion align­ment for modular devices
    Aligned terminal
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Dimen­sions
  • Height
    83 mm
  • Width
    35 mm
  • Depth
    70 mm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

RCCB 4P 40A 30mA A Class
PDF
23,23 MB
Hager REACH declaration CDA240T
PDF
Hager RoHS report CDA240T
PDF

Downloads

  • Product image

    Image CDA240T | Hager Australia

    Product Image CDA240T

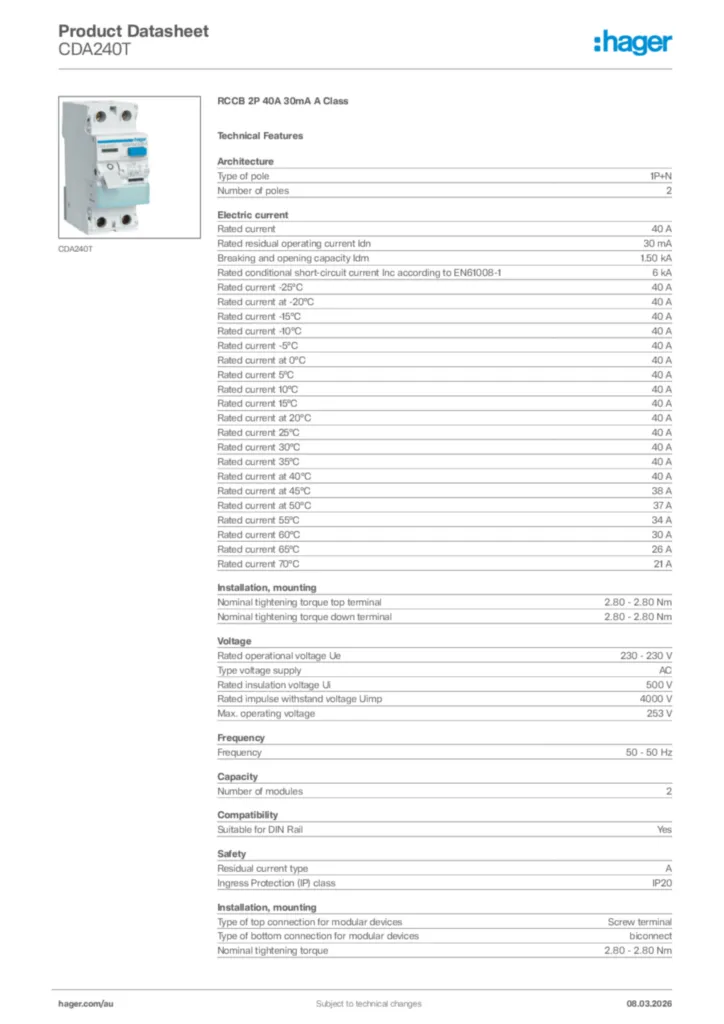

  • Product datasheet

    Image Hager Product data sheet CDA240T | Hager Australia

    Hager Product data sheet CDA240T

    RCCB 2P 40A 30mA A Class

    PDF

  • Installation manual

    Image Installation manual en-GB 2023-01-16 | Hager Australia

    Installation manual en-GB 2023-01-16

    PDF
    1,43 MB

  • Product data sheet

    Image CDA_CD_CExxxT Product Data and Specifications | Hager Australia

    CDA_CD_CExxxT Product Data and Specifications

    Product data sheet en-GB 2017-02-13

    PDF
    70,39 kB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager Australia

    EU Declaration of Conformity

    Declaration of conformity en-GB 2025-08-26

    PDF
    672,76 kB
