RCCB 2P 63A 30mA A Class CDA263T
EAN
3250611615460
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries contact block 1 products available -
Busbar system for distribution boards 2 products available -
Mechanic accessories for low-voltage components 1 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
See more 1 other products available
Complete your system
Technical properties
Architecture
-
Type of pole1P+N
Electric current
-
Rated current63 A
-
Rated residual operating current Idn30 mA
-
Breaking and opening capacity Idm1,50 kA
-
Rated conditional short-circuit current Inc according to EN61008-16 kA
-
Rated current -25°C63 A
-
Rated current at -20°C63 A
-
Rated current -15°C63 A
-
Rated current -10°C63 A
-
Rated current -5°C63 A
-
Rated current at 0°C63 A
-
Rated current 5°C63 A
-
Rated current 10°C63 A
-
Rated current 15°C63 A
-
Rated current at 20°C63 A
-
Rated current 25°C63 A
-
Rated current 30°C63 A
-
Rated current 35°C63 A
-
Rated current at 40°C63 A
-
Rated current at 45°C63 A
-
Rated current at 50°C63 A
-
Rated current 55°C63 A
-
Rated current 60°C56 A
-
Rated current 65°C49 A
-
Rated current 70°C40 A
Main electrical attributes
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
-
Max. operating voltage253 V
Frequency
-
Frequency50 - 50 Hz
Capacity
-
Number of modules2
Compatibility
-
Suitable for DIN RailYes
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
-
Nominal tightening torque2,80 - 2,80 Nm
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
Power
-
Total power loss under IN8,7 W
Use conditions
-
Altitude2000 m
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations4000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth70 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Installation manual en-GB 2023-01-16
PDF1,43 MB -

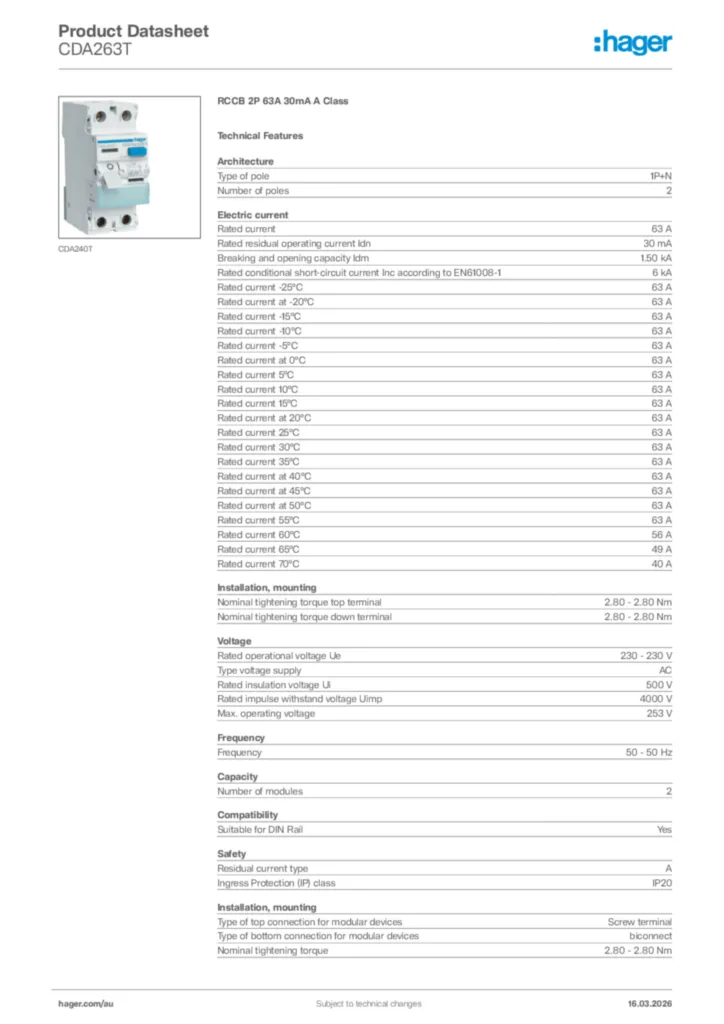

Product data sheet
