    • Home
    • Catalogue
    • Main switchgear
    • Main incomers
    • Air circuit breakers (ACB)
    • HWS2E312D3AE
    EAN-Nr.
    3250610076880
    Packaging
    1 piece
    • Air circuit breakers (ACB)

    Air Circuit Breaker HWS2 66kA 1250A 3P Drawout LSI-AMP HWS2E312D3AE

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Air Circuit Breaker HWS2 66kA 1250A 3P Drawout LSI-AMP

    HWS2E312D3AE

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

  • See more (25)
    • Motor oper­ator 4 products available
    • Shunt release 4 products available
    • Closing coil 4 products available
    • Under voltage coil 2 products available
    • Auxil­i­aries contact block 2 products available
    • Auxil­i­aries switch posi­tion 2 products available

    Complete your system

    • Motor oper­ator
    • Shunt release
    • Closing coil
    • Under voltage coil
    • Auxil­i­aries contact block
    • Auxil­i­aries switch posi­tion
    • Under voltage time controller
    • Cover func­tions
    • Locking inter­locking func­tions
    • Elec­trical accessories for low-­voltage compon­ents
    • HSX014H

      Spring Charging Motor 200V-250 V AC HWS (MO)
      0.00 €  / *
    • HSX016H

      Spring Charging Motor 415V-450 V AC HWS (MO)
      0.00 €  / *
    • HSX714H

      Spring Charging Motor 100V-130 V DC HWS (MO)
      0.00 €  / *
    • HSX716H

      Spring Charging Motor 200V-250 V DC HWS (MO)
      0.00 €  / *
    • HSX023H

      Shunt trip coil 240V AC HWS (SH)
      0.00 €  / *
    • HSX024H

      Shunt trip coil 415V AC HWS (SH)
      0.00 €  / *
    • HSX723H

      Shunt trip coil 110V DC HWS (SH)
      0.00 €  / *
    • HSX724H

      Shunt trip coil 220V DC HWS (SH)
      0.00 €  / *
    • HSX028H

      Closing Coil 240V AC HWS (CC)
      0.00 €  / *
    • HSX029H

      Closing Coil 415V AC HWS (CC)
      0.00 €  / *
    • HSX728H

      Closing Coil 110V DC HWS (CC)
      0.00 €  / *
    • HSX729H

      Closing Coil 220V DC HWS (CC)
      0.00 €  / *
    • HSX033H

      Undervoltage trip 240V AC HWS (UV)
      0.00 €  / *
    • HSX034H

      Undervoltage trip 415V AC HWS (UV)
      0.00 €  / *
    • HSX042H

      Auxilliary Switch 4NO+4NC HWS (AX)
      0.00 €  / *
    • HSX043H

      Auxilliary Switch 6NO+6NC HWS (AX)
      0.00 €  / *
    • HSX050H

      Position Switch HWS (PS)
      0.00 €  / *
    • HSX092H

      Ready To Close contact HWS (RTC)
      0.00 €  / *
    • HSY033H

      Undervoltage Time Delay Controller 240V AC
      0.00 €  / *
    • HSY034H

      Undervoltage Time Delay Controller 415V AC
      0.00 €  / *
    • HSY100H

      Terminal Block Cover HWS (TBC)
      0.00 €  / *
    • HSY261H

      OFF locking Adapter RO. Type (OLK)
      0.00 €  / *
    • HSY950H

      Terminal Block "Type A" HWS (TB)
      0.00 €  / *
    • HSY951H

      Terminal Block "Type B" HWS (TB)
      0.00 €  / *
    • HSY970H

      External Neutral Current Sensor 630-1600A HWS2 (ENCT)
      0.00 €  / *

    Technical characteristics

    Elec­tric current
    • Rated current
      1250 A
    Voltage
    • Rated insu­la­tion voltage Ui
      1000 V
    • Rated impulse with­stand voltage Uimp
      12 kV
    • Type voltage supply
      AC
    Resist­ance
    • Internal resist­ance
      18,3 µΩ
    Archi­tec­ture
    • Number of poles
      3
    • Number of protected poles
      3
    • Device construc­tion type
      Drawout
    • Type of pole
      3P
    Trip­ping
    • Time of response when closing
      40 ms
    Power
    • Total power loss under IN
      100 W

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration HWS2E312D3AE
    PDF
    Hager RoHS report HWS2E312D3AE
    PDF

    Downloads

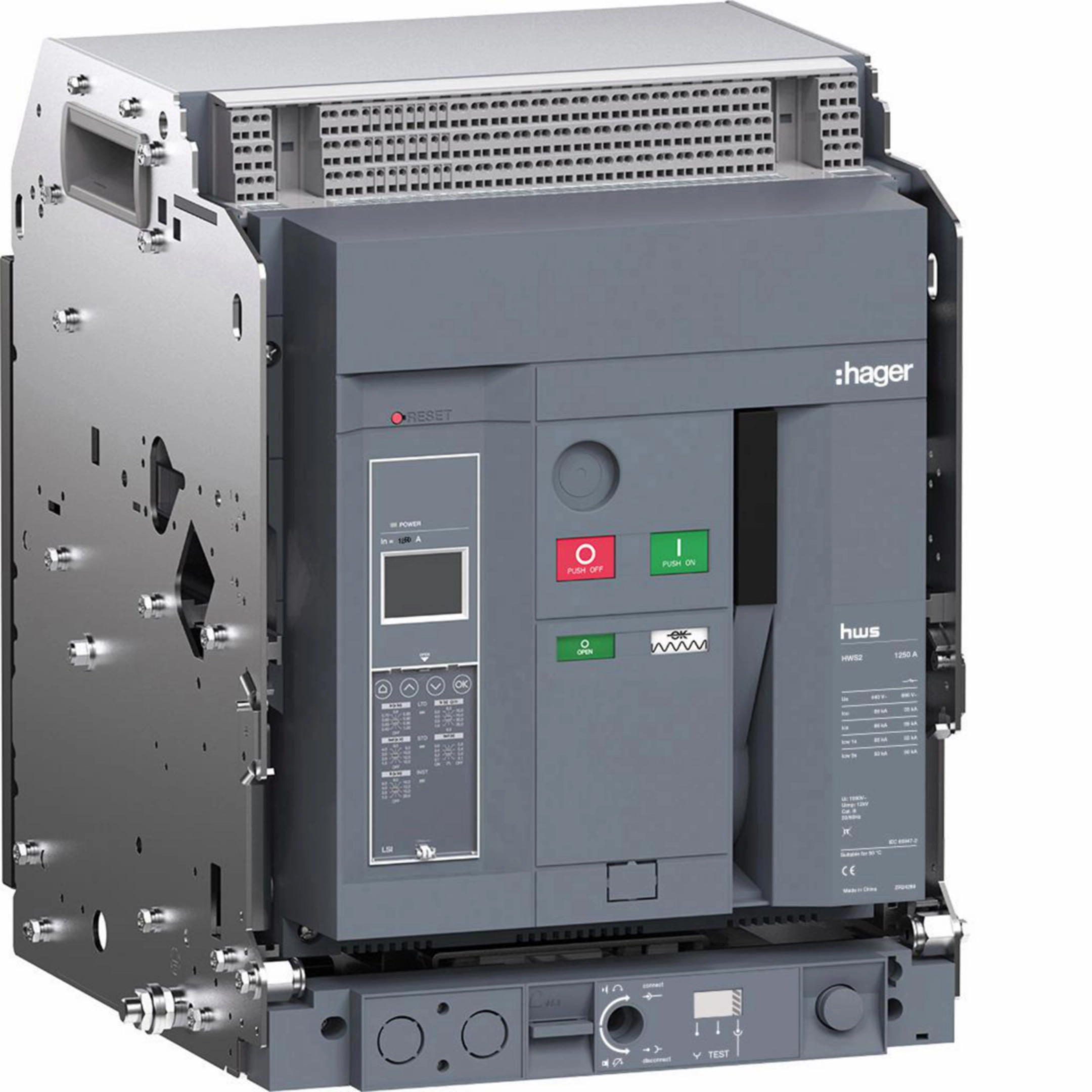

    • Image HWS2E312D3AE | Hager

      Product Image HWS2E312D3AE

    • Product datasheet

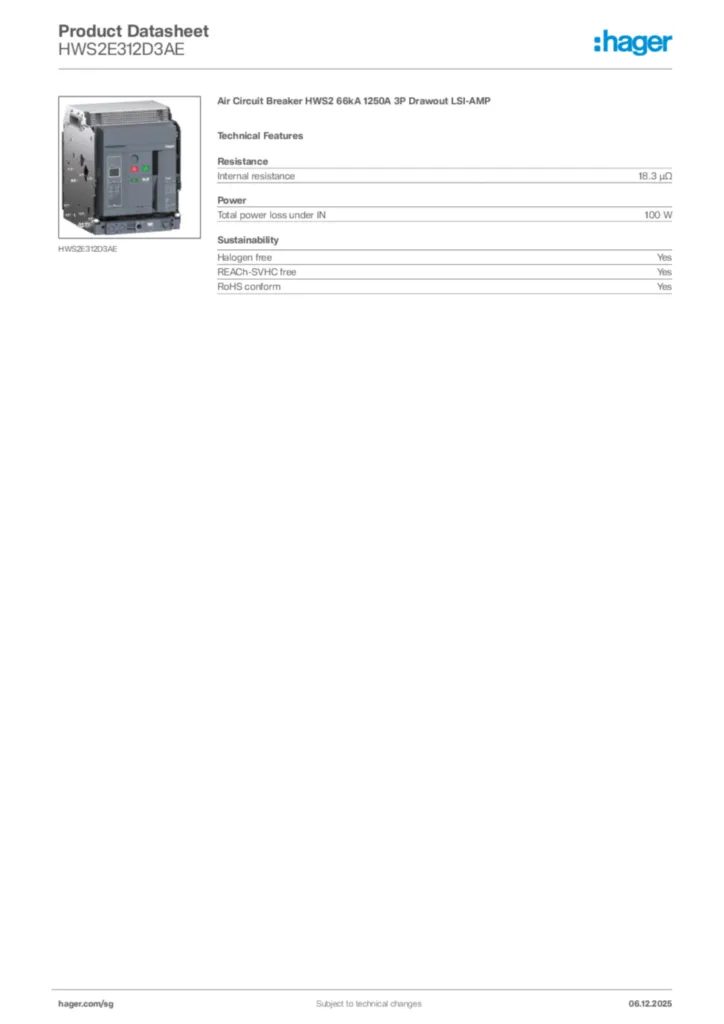

      Image Hager Product data sheet HWS2E312D3AE | Hager

      Hager Product data sheet HWS2E312D3AE

      Air Circuit Breaker HWS2 66kA 1250A 3P Drawout LSI-AMP

      PDF

    • Installation manual

      Image Installation manual International 2025-04-25 | Hager

      Installation manual International 2025-04-25

      PDF
      16,07 MB

    • Manual

      Image Installation and operating manual | Hager

      Installation and operating manual

      HWS2 / HWS4 Air circuit breakers 630 A to 4000 A

      PDF
      86,00 MB
      Image Technical catalogue | Hager

      Technical catalogue

      HWS2 / HWS4 Air circuit breakers 630 A to 4000 A

      PDF
      61,28 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      PDF
      660,53 kB
