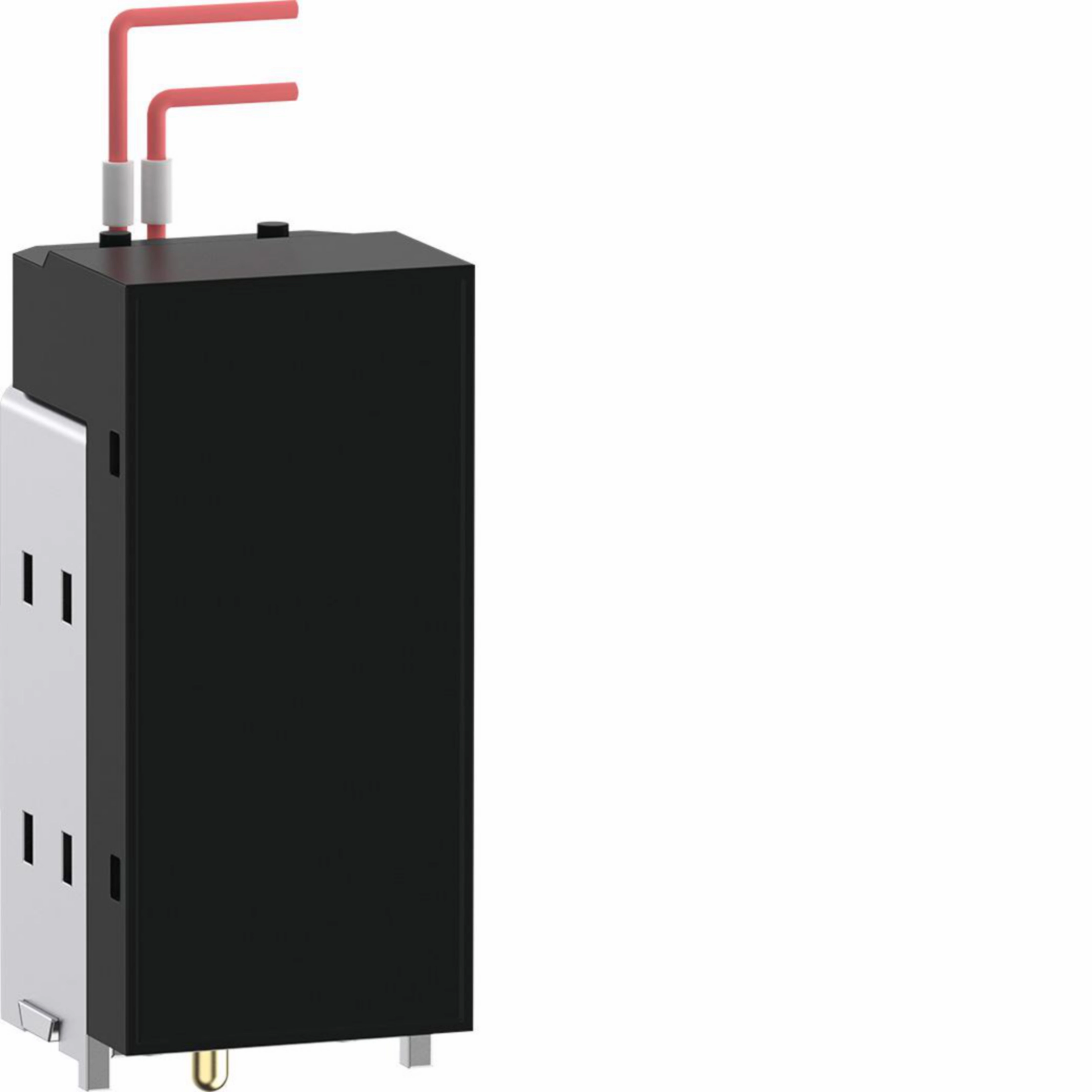

Closing Coil 415V AC HWS (CC) HSX029H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 56 products available
Referenced by
-
HWS2E308D1AEAir Circuit Breaker HWS2 66kA 800A 3P Drawout LSI
-
HWS2E308D3AEAir Circuit Breaker HWS2 66kA 800A 3P Drawout LSI-AMP
-
HWS2E308F1AEAir Circuit Breaker HWS2 66kA 800A 3P Fixed LSI
-
HWS2E308F3AEAir Circuit Breaker HWS2 66kA 800A 3P Fixed LSI-AMP
-
HWS2E310D1AEAir Circuit Breaker HWS2 66kA 1000A 3P Drawout LSI
-
HWS2E310D3AEAir Circuit Breaker HWS2 66kA 1000A 3P Drawout LSI-AMP
-

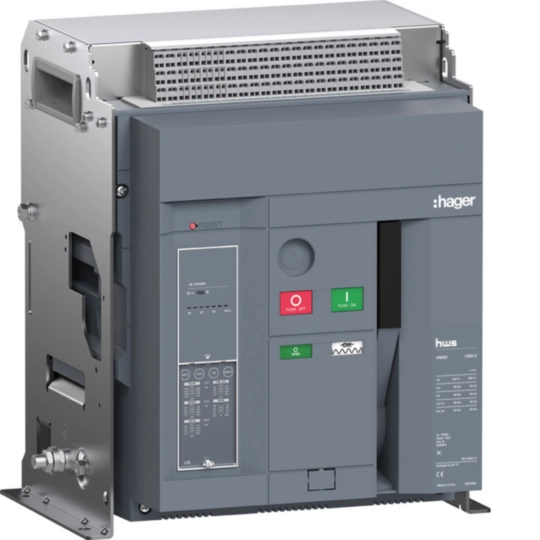

HWS2E310F1AEAir Circuit Breaker HWS2 66kA 1000A 3P Fixed LSI
-

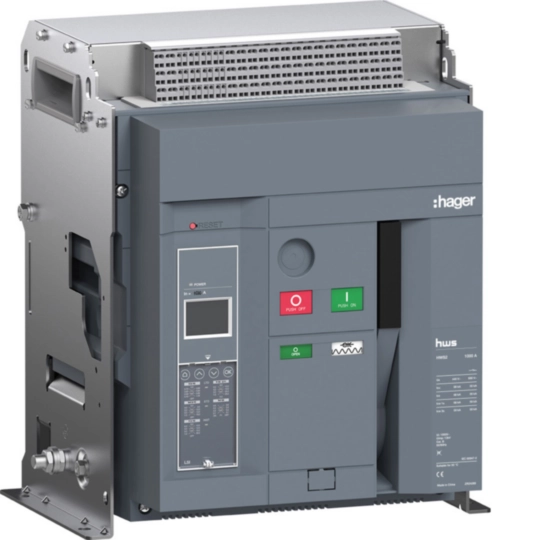

HWS2E310F3AEAir Circuit Breaker HWS2 66kA 1000A 3P Fixed LSI-AMP
-
HWS2E312D1AEAir Circuit Breaker HWS2 66kA 1250A 3P Drawout LSI
-
HWS2E312D3AEAir Circuit Breaker HWS2 66kA 1250A 3P Drawout LSI-AMP
-
HWS2E312F1AEAir Circuit Breaker HWS2 66kA 1250A 3P Fixed LSI
-
HWS2E312F3AEAir Circuit Breaker HWS2 66kA 1250A 3P Fixed LSI-AMP
-

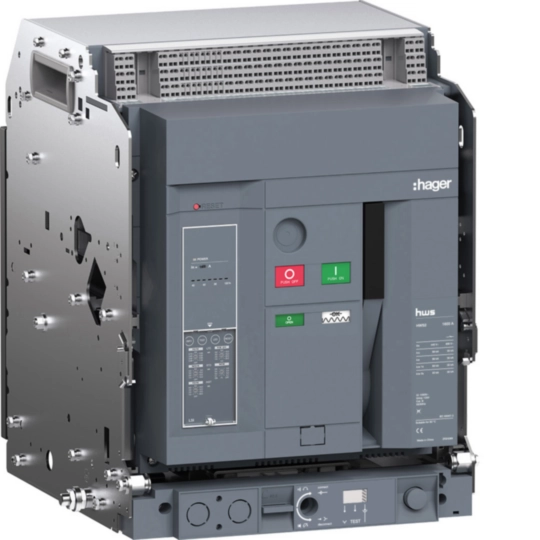

HWS2E316D1AEAir Circuit Breaker HWS2 66kA 1600A 3P Drawout LSI
-
HWS2E316D3AEAir Circuit Breaker HWS2 66kA 1600A 3P Drawout LSI-AMP
-
HWS2E316F1AEAir Circuit Breaker HWS2 66kA 1600A 3P Fixed LSI
-
HWS2E316F3AEAir Circuit Breaker HWS2 66kA 1600A 3P Fixed LSI-AMP
-

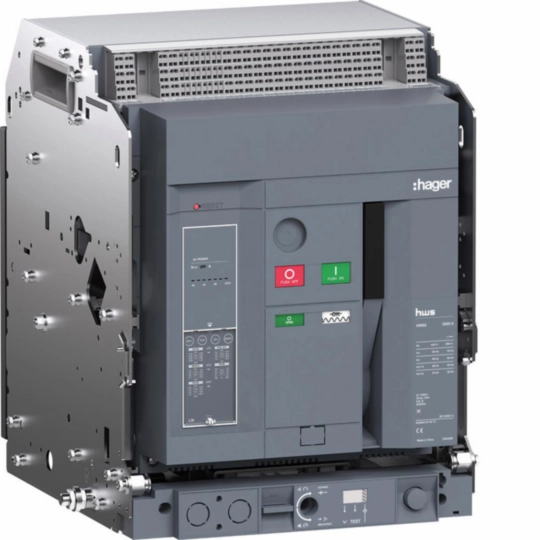

HWS2E320D1AEAir Circuit Breaker HWS2 66kA 2000A 3P Drawout LSI
-
HWS2E320D3AEAir Circuit Breaker HWS2 66kA 2000A 3P Drawout LSI-AMP
-
HWS2E320F1AEAir Circuit Breaker HWS2 66kA 2000A 3P Fixed LSI
-
HWS2E320F3AEAir Circuit Breaker HWS2 66kA 2000A 3P Fixed LSI-AMP
Technical characteristics
Power
-
Inrush power absorbed200 VA
-
Operating consumption5 VA
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Voltage
-
Command voltage AC380 - 480 V
-
Rated insulation voltage Ui480 V
-
Rated impulse withstand voltage Uimp6000 V
-
Overvoltage category according to IEC 60947-12
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet
Hager Product data sheet HSX029H
Closing Coil 415V AC HWS (CC)
PDF -
Instruction manual

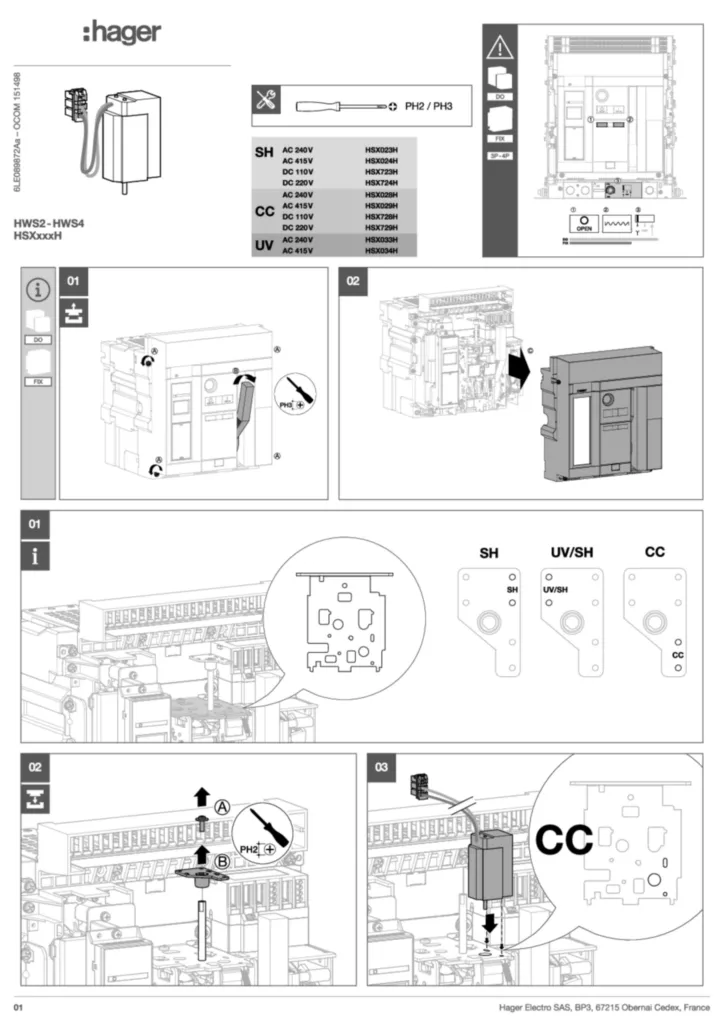

Instruction manual International 2025-04-29
PDF2,61 MB -
Installation manual
Safety instructions
-
PDF159,14 kB -
Manual
Installation and operating manual
HWS2 / HWS4 Air circuit breakers 630 A to 4000 A
PDF86,00 MB
Technical catalogue
HWS2 / HWS4 Air circuit breakers 630 A to 4000 A
PDF61,28 MB -
Declaration of conformity
EU Declaration of Conformity
PDF371,45 kB
More documentation
