Shunt trip coil 415V AC HWS (SH) HSX024H

EAN-Nr.
3250610061763
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Shunt trip coil 415V AC HWS (SH)

HSX024H

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

Complete your system

Compatible products

  • Referenced by 56 products available

Referenced by

  • HWS2E308D1AE

    Air Circuit Breaker HWS2 66kA 800A 3P Drawout LSI
    0.00 €  / *
  • HWS2E308D3AE

    Air Circuit Breaker HWS2 66kA 800A 3P Drawout LSI-AMP
    0.00 €  / *
  • HWS2E308F1AE

    Air Circuit Breaker HWS2 66kA 800A 3P Fixed LSI
    0.00 €  / *
  • HWS2E308F3AE

    Air Circuit Breaker HWS2 66kA 800A 3P Fixed LSI-AMP
    0.00 €  / *
  • HWS2E310D1AE

    Air Circuit Breaker HWS2 66kA 1000A 3P Drawout LSI
    0.00 €  / *
  • HWS2E310D3AE

    Air Circuit Breaker HWS2 66kA 1000A 3P Drawout LSI-AMP
    0.00 €  / *
  • HWS2E310F1AE

    Air Circuit Breaker HWS2 66kA 1000A 3P Fixed LSI
    0.00 €  / *
  • HWS2E310F3AE

    Air Circuit Breaker HWS2 66kA 1000A 3P Fixed LSI-AMP
    0.00 €  / *
  • HWS2E312D1AE

    Air Circuit Breaker HWS2 66kA 1250A 3P Drawout LSI
    0.00 €  / *
  • HWS2E312D3AE

    Air Circuit Breaker HWS2 66kA 1250A 3P Drawout LSI-AMP
    0.00 €  / *
  • HWS2E312F1AE

    Air Circuit Breaker HWS2 66kA 1250A 3P Fixed LSI
    0.00 €  / *
  • HWS2E312F3AE

    Air Circuit Breaker HWS2 66kA 1250A 3P Fixed LSI-AMP
    0.00 €  / *
  • HWS2E316D1AE

    Air Circuit Breaker HWS2 66kA 1600A 3P Drawout LSI
    0.00 €  / *
  • HWS2E316D3AE

    Air Circuit Breaker HWS2 66kA 1600A 3P Drawout LSI-AMP
    0.00 €  / *
  • HWS2E316F1AE

    Air Circuit Breaker HWS2 66kA 1600A 3P Fixed LSI
    0.00 €  / *
  • HWS2E316F3AE

    Air Circuit Breaker HWS2 66kA 1600A 3P Fixed LSI-AMP
    0.00 €  / *
  • HWS2E320D1AE

    Air Circuit Breaker HWS2 66kA 2000A 3P Drawout LSI
    0.00 €  / *
  • HWS2E320D3AE

    Air Circuit Breaker HWS2 66kA 2000A 3P Drawout LSI-AMP
    0.00 €  / *
  • HWS2E320F1AE

    Air Circuit Breaker HWS2 66kA 2000A 3P Fixed LSI
    0.00 €  / *
  • HWS2E320F3AE

    Air Circuit Breaker HWS2 66kA 2000A 3P Fixed LSI-AMP
    0.00 €  / *

Technical characteristics

Power
  • Inrush power absorbed
    200 VA
  • Oper­ating consump­tion
    5 VA
Safety
  • Ingress Protec­tion (IP) class
    IP4X
Use condi­tions
  • Oper­ating temper­ature
    -25 - 70 °C
Voltage
  • Command voltage AC
    380 - 480 V
  • Rated insu­la­tion voltage Ui
    480 V
  • Rated impulse with­stand voltage Uimp
    6000 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes
Halogen free Yes

Certifications and documents

Hager REACH declaration HSX024H
PDF
Hager RoHS report HSX024H
PDF

Downloads

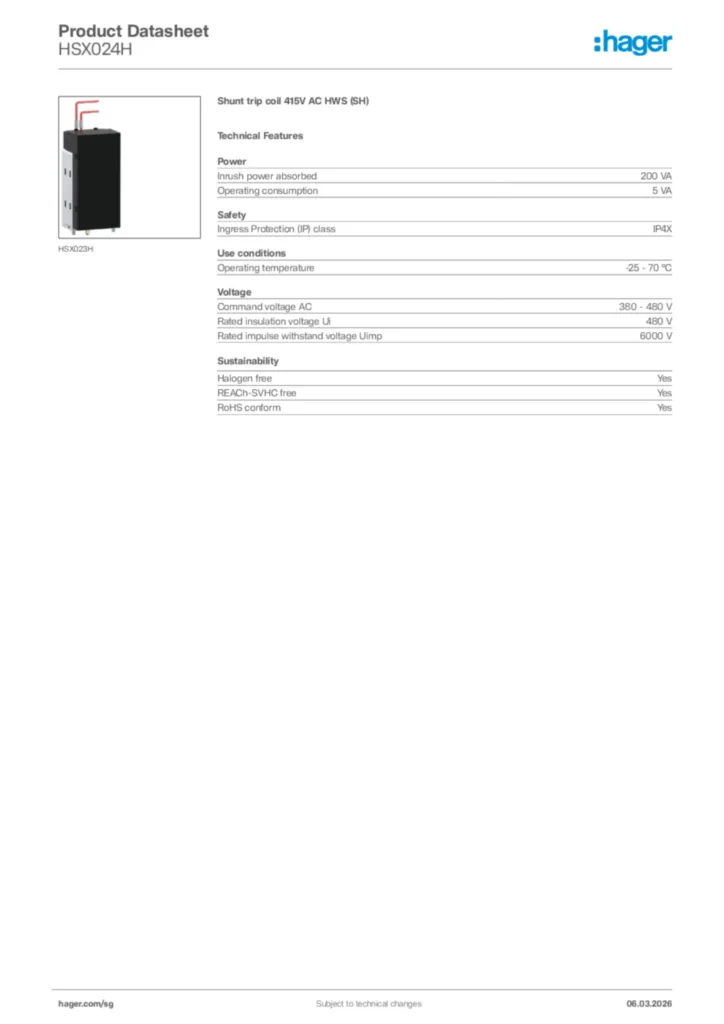

  • Image HSX024H | Hager

    Product Image HSX024H

  • Instruction manual

    Image Instruction manual International 2025-04-29 | Hager

    Instruction manual International 2025-04-29

    PDF
    2,61 MB

  • Installation manual

    Image Safety instructions | Hager

    Safety instructions

    -

    PDF
    159,14 kB

  • Manual

    Image Installation and operating manual | Hager

    Installation and operating manual

    HWS2 / HWS4 Air circuit breakers 630 A to 4000 A

    PDF
    86,00 MB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    PDF
    371,45 kB
More documentation

Discover our other products of this range

    5
  • 1
    HYA028H - Terminal cover for collar terminal x160 4P
    HYA028H
    Terminal cover for collar terminal x160 4P
  • 2
    HYW053H - Earth plate for Spread terminal extension P630 4P
    HYW053H
    Earth plate for Spread terminal extension P630 4P
  • 3
    HYW052H - Earth plate for Spread terminal extension P630 3P
    HYW052H
    Earth plate for Spread terminal extension P630 3P
  • 4
    HYW051H - Earth plate for Straight terminal extension P630 4P
    HYW051H
    Earth plate for Straight terminal extension P630 4P
  • 5
    HYW050H - Earth plate for Straight terminal extension P630 3P
    HYW050H
    Earth plate for Straight terminal extension P630 3P
