    KNX push button 2 gang with LED gallery WXT312

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    KNX push button 2 gang with LED gallery

    WXT312

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Functions
    • With room temperature controller
      No
    Dimensions
    • Built-in depth flush-mounted boxes
      28 mm
    Materials
    • Colour
      White
    • RAL code
      9010
    • Material
      Polycarbonate (PC)
    • Surface finish
      Glossy
    Accessories
    • Has labelling field
      Yes
    Architecture
    • Bus system
      KNX
    Scope of delivery
    • Bus connection included
      Yes
    Data act compliance
    • Is generating data
      Yes
    • Data types
      Basic information, Generic KNX telegram
    • Data formats
      KNX (TP)
    • Real time data generation
      Yes
    • Data stored on device
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - KNX push button 6 gang with LED gallery (English)
    PDF
    10,73 MB
    REACH declaration WXT312
    PDF
    RoHS report WXT312
    PDF

    Downloads

    • Image WXT312  | Hager

      Product Image WXT312

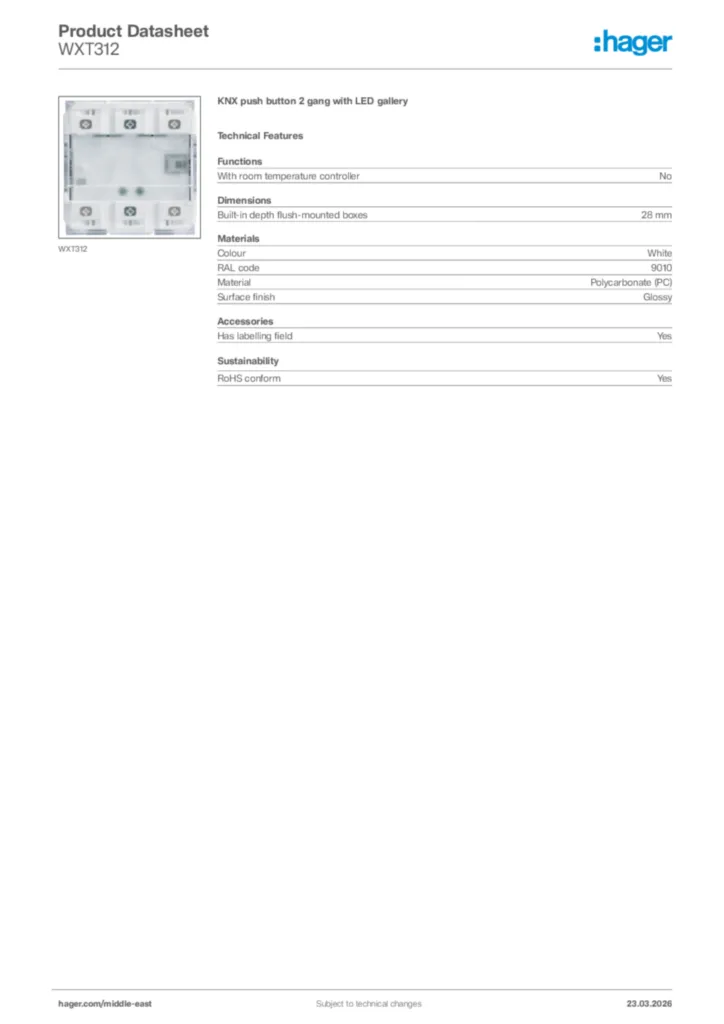

    • Product datasheet

      Image Hager Product data sheet WXT312  | Hager

      Hager Product data sheet WXT312

      KNX push button 2 gang with LED gallery

      PDF
    • Installation manual

      Image Installation manual en-GB, nl-NL 2015-02-18  | Hager

      Installation manual en-GB, nl-NL 2015-02-18

      PDF
      3,51 MB
    • KNX product database

      Image ETS Database for WXT3xx  | Hager

      ETS Database for WXT3xx

      KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01

      KNXPROD
      552,57 kB
    • Application Guide

      Image Application description ETS for WXT30X-WXT31X-WXT32X - KNX Push Button (EN, 2022-02)  | Hager

      Application description ETS for WXT30X-WXT31X-WXT32X - KNX Push Button (EN, 2022-02)

      Application Guide en-GB 2022-02-08

      PDF
      2,98 MB
    • Declaration of conformity

      Image Declaration  | Hager

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      123,42 kB
