Motion detector 2-channel 1,1 m, KNX - Systo WST502
EAN-Nr.
3250617095037
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical characteristics
Dimensions
-
Installation height1.1 - 1.2 m
Settings
-
Minimal duty cycle5 s
Functions
-
Maximal duty cycle30 min
Detection
-
Detection angle180 - 180
-
Detection angle horizontal90 - 180
Materials
-
MaterialPolycarbonate (PC), Plastic
Downloads
-
Product datasheet

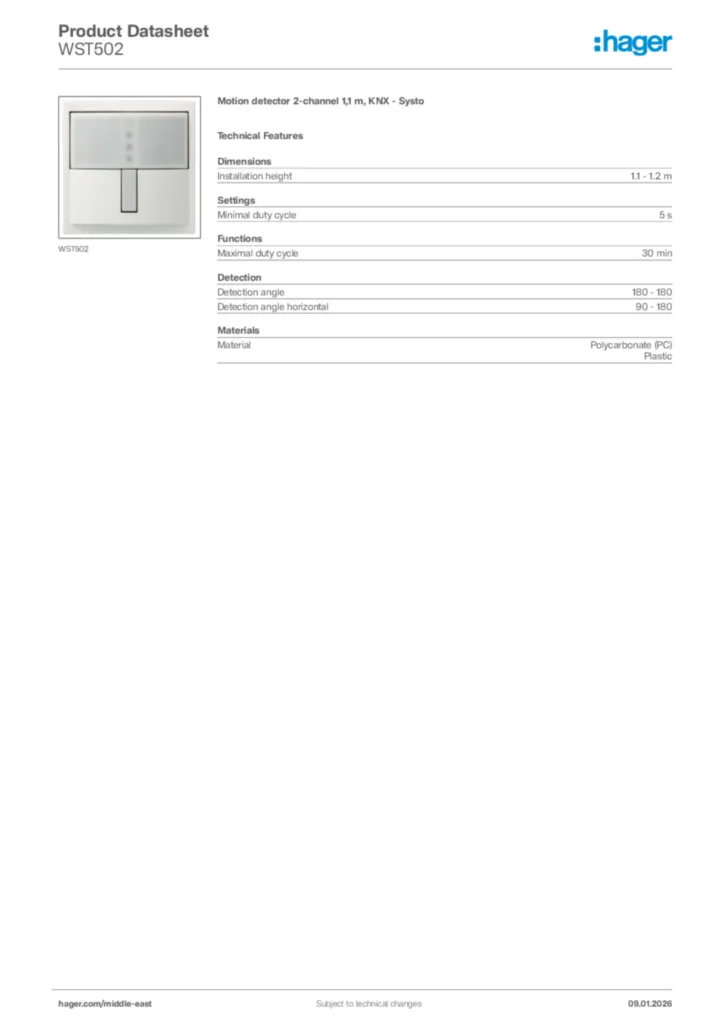

Hager Product data sheet WST502
Motion detector 2-channel 1,1 m, KNX - Systo
PDF -
Installation manual
Installation manual International 2015-12-08
PDF1,16 MB
Installation manual International 2015-12-18
PDF1,15 MB
Manual for WST502xx - KNX motion detector module (EN-NL, 2018-05)
Installation manual en-GB, nl-NL 2018-05-18
PDF1,17 MB -
KNX product database
ETS Database for WST502
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01
KNXPROD254,40 kB
KNX product database International 2020-01-01
KNXPROD258,52 kB -
Application Guide
Application description ETS for KNX Motion detector (EN, 2016-09)
Application Guide en-GB 2016-09-23
PDF2,91 MB
Application description ETS for WST502 - Motion detector with bus coupling unit (EN, 2016-08), easy link
Application Guide en-GB 2016-08-04
PDF2,33 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF252,67 kB
