    • Hager dream
    • Socket outlets
    • WGDS116IS
    EAN-Nr.
    3250617507806
    Packaging
    10 Pieces
    • Socket outlets

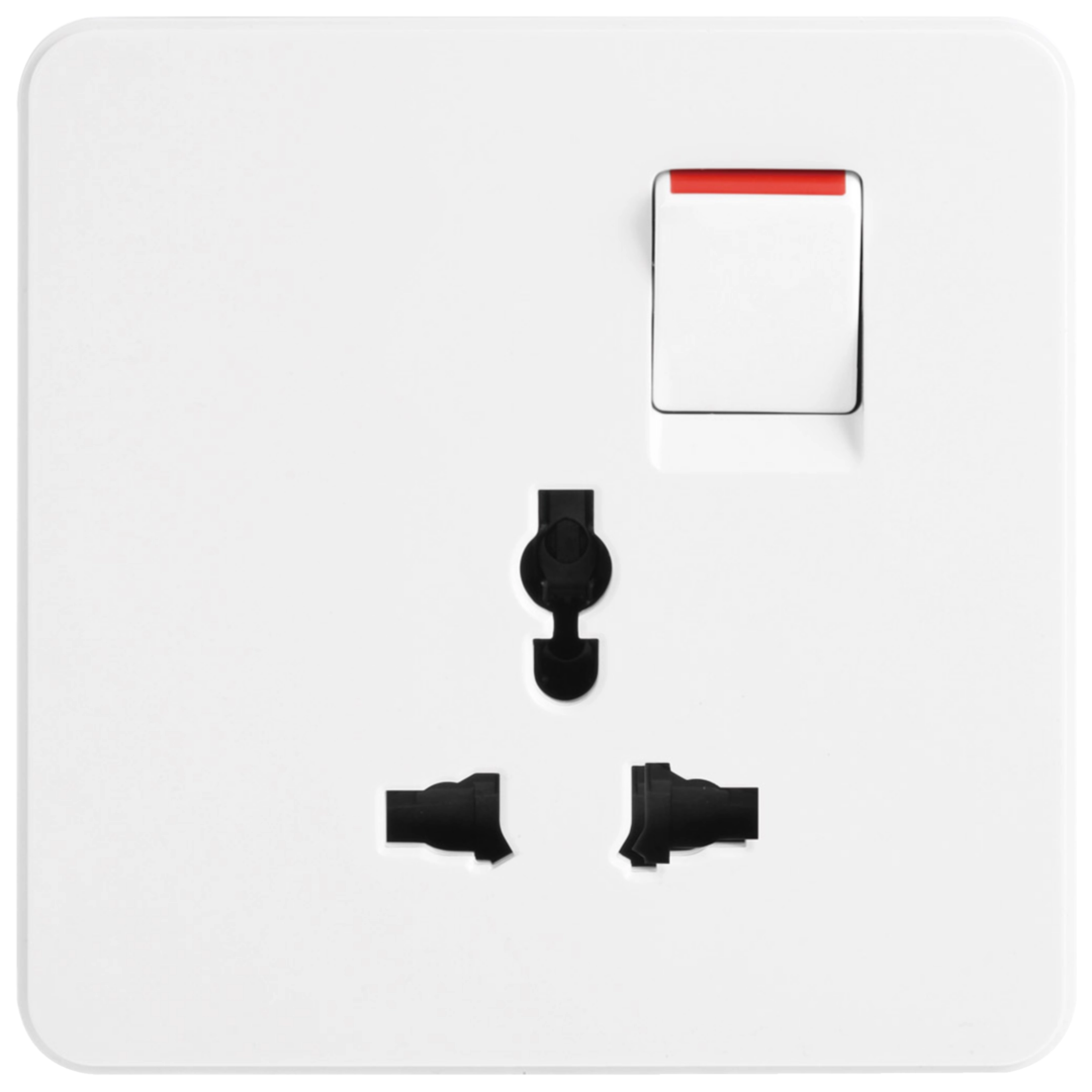

    16A SINGLE SWITCHED UNIVERSAL SOCKET WGDS116IS

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Also available in

    On/off switch
    No
    No
    Yes
    Yes

    16A SINGLE SWITCHED UNIVERSAL SOCKET

    WGDS116IS

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 20 products available

    Referenced by

    • WGDCH4

      4G multi-gang frame
      0.00 €  / *
    • WGDCH5NB

      5G multi-gang frame;nb
      0.00 €  / *
    • WGDCH5KB

      5G multi-gang frame;kb
      0.00 €  / *
    • WGDCH5IG

      5G multi-gang frame;ig
      0.00 €  / *
    • WGDCH5EG

      5G multi-gang frame;eg
      0.00 €  / *
    • WGDCH5

      5G multi-gang frame
      0.00 €  / *
    • WGDCH4NB

      4G multi-gang frame;nb
      0.00 €  / *
    • WGDCH4KB

      4G multi-gang frame;kb
      0.00 €  / *
    • WGDCH4IG

      4G multi-gang frame;ig
      0.00 €  / *
    • WGDCH4EG

      4G multi-gang frame;eg
      0.00 €  / *
    • WGDCH2

      2G multi-gang frame
      0.00 €  / *
    • WGDCH3NB

      3G multi-gang frame;nb
      0.00 €  / *
    • WGDCH3KB

      3G multi-gang frame;kb
      0.00 €  / *
    • WGDCH3IG

      3G multi-gang frame;ig
      0.00 €  / *
    • WGDCH3EG

      3G multi-gang frame;eg
      0.00 €  / *
    • WGDCH3

      3G multi-gang frame
      0.00 €  / *
    • WGDCH2NB

      2G multi-gang frame;nb
      0.00 €  / *
    • WGDCH2KB

      2G multi-gang frame;kb
      0.00 €  / *
    • WGDCH2IG

      2G multi-gang frame;ig
      0.00 €  / *
    • WGDCH2EG

      2G multi-gang frame;eg
      0.00 €  / *

    Technical characteristics

    Voltage
    • Rated voltage
      250 V
    • Output voltage
      0-0 V
    Electric current
    • Output current
      0
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consumption standby
      0
    Materials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycarbonate (PC)
    • Treatment
      Untreated
    • Contains recycled material (% of total plastic weight)
      0
    Dimensions
    • Height
      32 mm
    • Width
      86 mm
    • Depth
      21 mm
    • Built-in depth flush-mounted boxes
      35 mm
    • Built-in depth
      21 mm
    Cable
    • Cable length
      0
    Connection
    • Connector/plug type
      British Standard
    • Cross-section flexible conductor without wire end sleeve
      0.08 - 4 mm²
    Installation, mounting
    • Mounting on
      Flush mounting
    • Mounting-/Connection Position
      Back
    Connectivity
    • Type of connection
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connector/plug type USB
      British Standard
    Equipment
    • Connector/plug type socket outlet
      British Standard
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capacity
    • Number of modules
      0
    Safety
    • With enhanced contact protection
      No
    • Impact resistance IK
      IK02
    • Ingress Protection (IP) class
      IP20
    Functions
    • With orientation lighting
      No
    • With function lighting
      No
    Identification
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration WGDS116IS
    PDF
    Hager RoHS report WGDS116IS
    PDF

    Downloads

    • Image WGDS116IS | Hager

      Product Image WGDS116IS

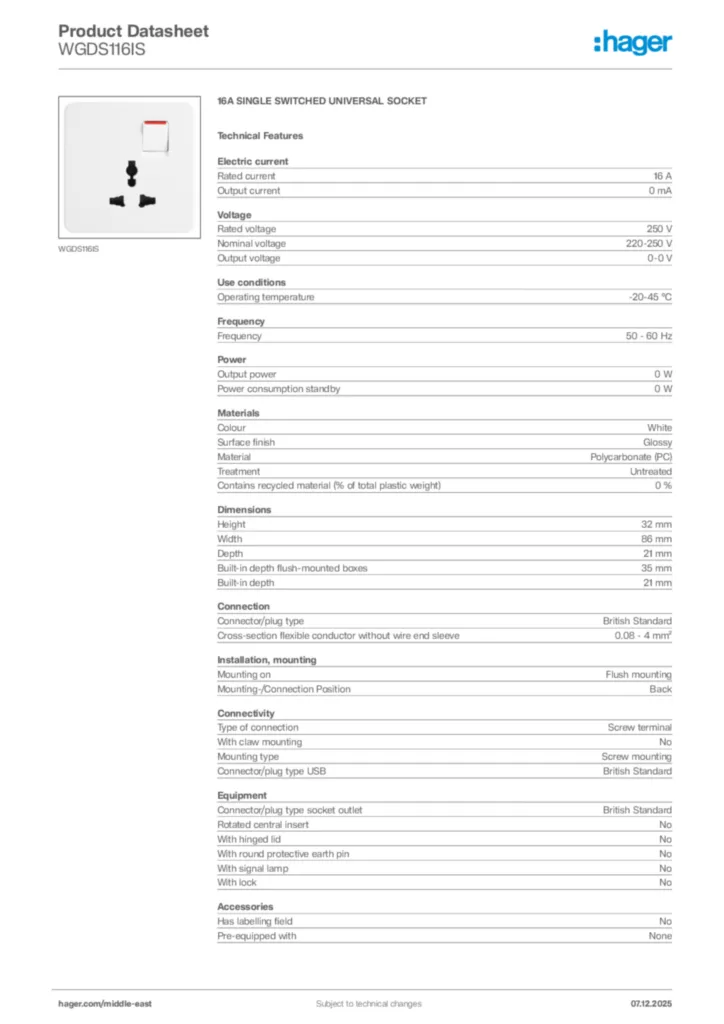

    • Product datasheet

      Image Hager Product data sheet WGDS116IS | Hager

      Hager Product data sheet WGDS116IS

      16A SINGLE SWITCHED UNIVERSAL SOCKET

      PDF

    • Installation manual

      Image Manual for WGDS116ISXX - Universal socket (EN, 2019-11) | Hager

      Manual for WGDS116ISXX - Universal socket (EN, 2019-11)

      Installation manual en-GB 2020-01-01

      PDF
      811,29 kB
    More documentation
