40-500W single dimmer;ig WGDEDR500IG
EAN-Nr.
3250617288385
Packaging
6 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 4 products available
Technical characteristics
Voltage
-
Operating voltage0-230 V
-
Rated operational voltage Ue0-230 V
Connectivity
-
With bus system KNX radioNo
Frequency
-
Frequency50-60 Hz
Electric current
-
Control current170-2,170 mA
Materials
-
ColourInterstellar grey
-
MaterialPolycarbonate (PC)
Dimensions
-
Built-in depth34 mm
-
Height41 mm
-
Width86 mm
-
Depth41 mm
Architecture
-
Control/operation elementDimmer
Power
-
230 V incandescent and halogen lamp500 W
-
Power incandescent lamp40-500 W
Lighting
-
Dimmable 230 V LED lamp40-250 W
-
LED lamp power40 W
Use conditions
-
Operating temperature-5-45 °C
Connection
-
Cross-section rigid conductor1.5 - 2.5 mm²
-
Cross-section flexible conductor1.5 - 2.5 mm²
Capacity
-
Number of modules1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

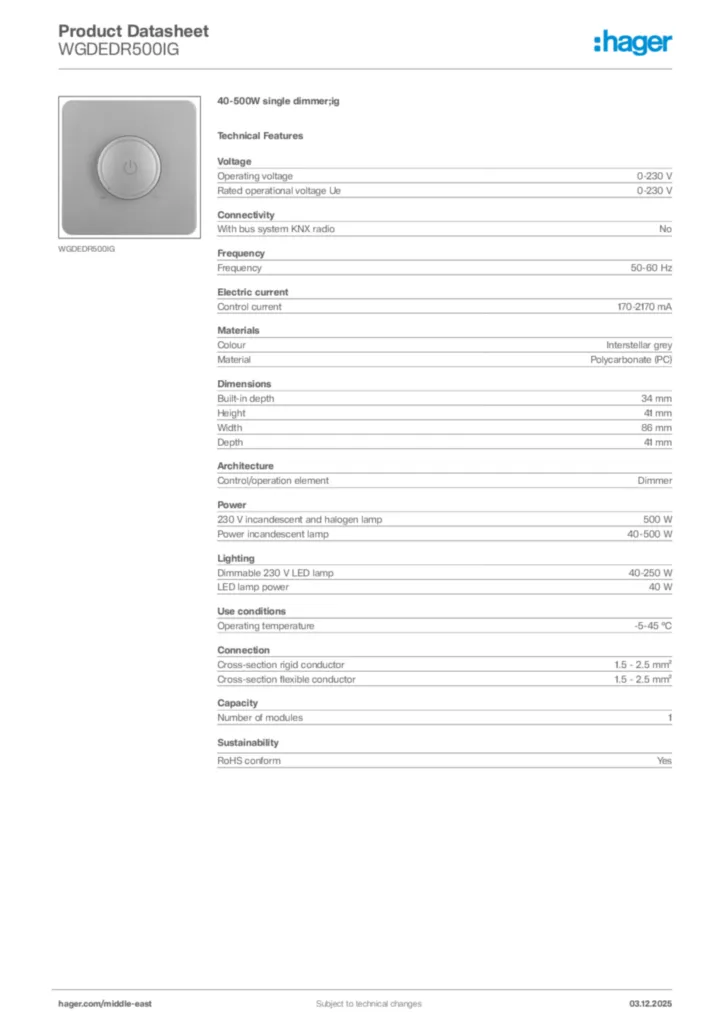

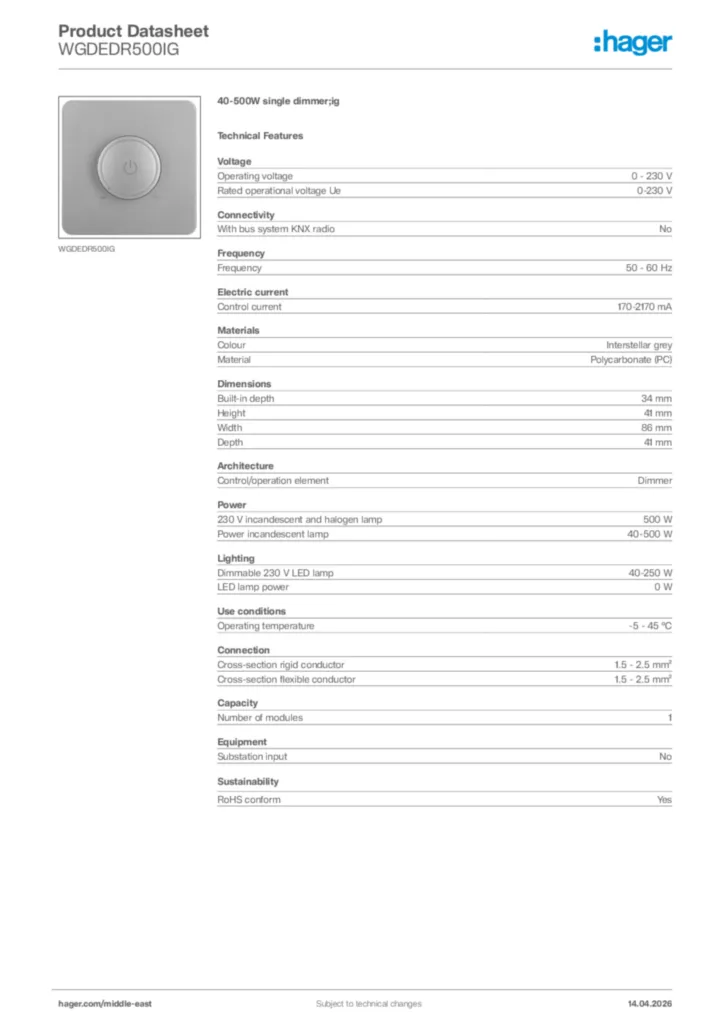

Hager Product data sheet WGDEDR500IG
40-500W single dimmer;ig
PDF -
Installation manual
Manual for WGDEDR500XX - Dimmer (EN, 2019-04)
Installation manual en-GB 2020-01-01
PDF877,06 kB -
Declaration of conformity
Declaration
Declaration of conformity en-GB 2022-12-30
PDF96,63 kB
