    • WGCXS216EAEG
    EAN-Nr.
    3250617272025
    Packaging
    10 Pieces

    16A TWIN EURO-AMERICAN SOCKET, EG WGCXS216EAEG

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    No longer available

    16A TWIN EURO-AMERICAN SOCKET, EG

    WGCXS216EAEG

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Voltage
    • Rated voltage
      250 V
    • Output voltage
      0-0 V
    Electric current
    • Output current
      0
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consumption standby
      0
    Materials
    • Colour
      Gold
    • Surface finish
      Matt
    • Material
      Polycarbonate (PC)
    • Treatment
      Coated
    • Contains recycled material (% of total plastic weight)
      0
    Dimensions
    • Height
      30 mm
    • Width
      86 mm
    • Depth
      20 mm
    • Built-in depth flush-mounted boxes
      35 mm
    • Built-in depth
      20 mm
    Cable
    • Cable length
      0
    Connection
    • Connector/plug type
      NEMA
    • Cross-section flexible conductor without wire end sleeve
      0.08 - 4 mm²
    Installation, mounting
    • Mounting on
      Flush mounting
    • Mounting-/Connection Position
      Back
    Connectivity
    • Type of connection
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connector/plug type USB
      NEMA
    Equipment
    • Connector/plug type socket outlet
      British Standard
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capacity
    • Number of modules
      0
    Safety
    • With enhanced contact protection
      No
    • Impact resistance IK
      IK02
    • Ingress Protection (IP) class
      IP20
    Functions
    • With orientation lighting
      No
    • With function lighting
      No
    Identification
    • With imprint
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration WGCXS216EAEG
    PDF
    Hager RoHS report WGCXS216EAEG
    PDF

    Downloads

    • Image WGCXS216EAEG | Hager

      Product Image WGCXS216EAEG

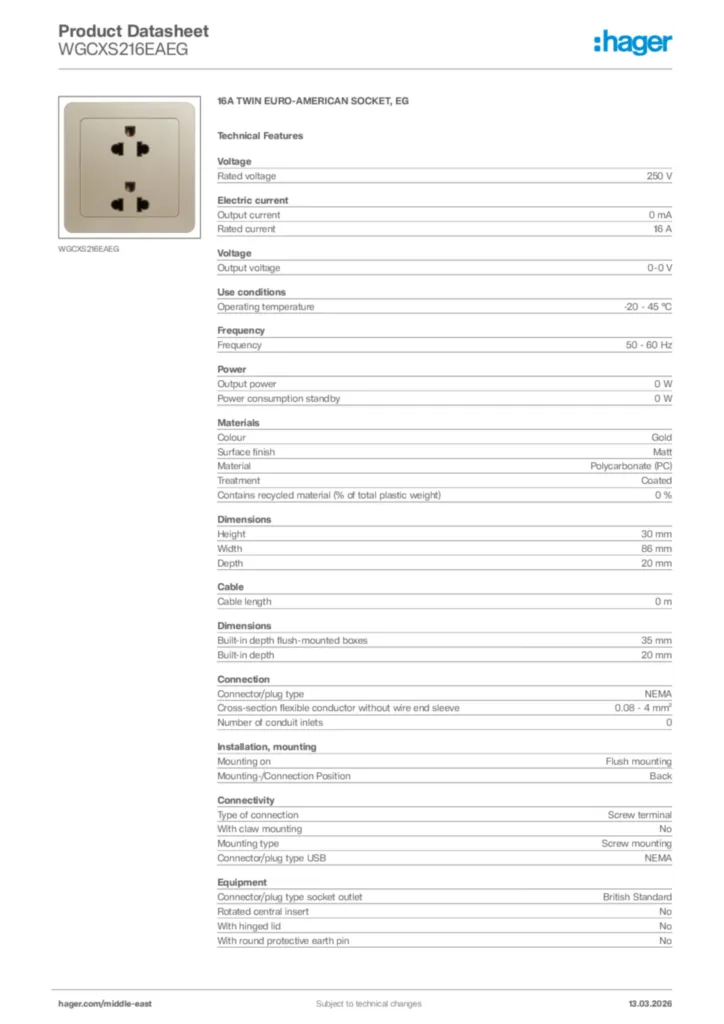

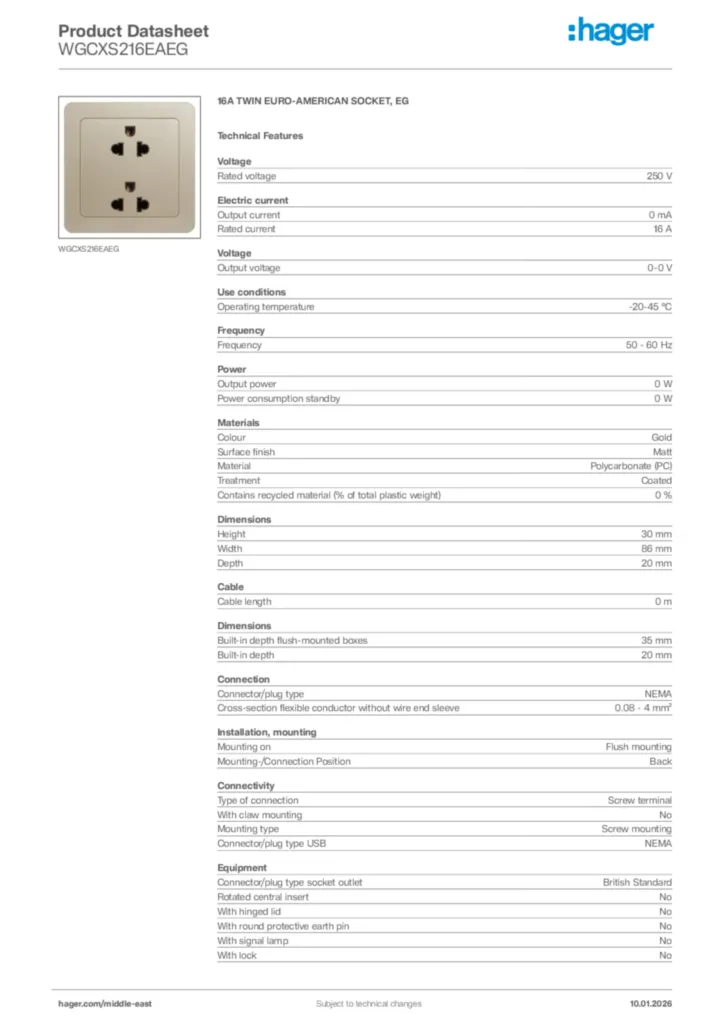

    • Product datasheet

      Image Hager Product data sheet WGCXS216EAEG | Hager

      Hager Product data sheet WGCXS216EAEG

      16A TWIN EURO-AMERICAN SOCKET, EG

      PDF

    • Installation manual

      Image Manual for WGMSX16EAXX-WGCXSX16EAXX - Euro-American sockets (EN, 2019-04) | Hager

      Manual for WGMSX16EAXX-WGCXSX16EAXX - Euro-American sockets (EN, 2019-04)

      Installation manual en-GB 2020-01-01

      PDF
      852,31 kB

    • Declaration of conformity

      Image BOC_CE_CERT_GSI_GSIG_GHF_IT_EN_28072021 | Hager

      BOC_CE_CERT_GSI_GSIG_GHF_IT_EN_28072021

      Declaration of conformity en-GB 2022-12-29

      PDF
      96,44 kB
