floor box set cpl. incl. st. steel cassette Q06, outlet box sq, socket outlets UDKPQ06E
EAN-Nr.
4012002247426
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Architecture
-
With carpet protection frameNo
-
With opening carpetingYes
Dimensions
-
Built-in depth105 mm
-
Built-in width200 mm
-
Built-in length200 mm
-
Length217 mm
-
Width200 mm
-
Thickness of carpet recess23 mm
Configuration
-
Installation size (underfloor installations)Q06
Installation, mounting
-
Suitable for recessed floor mountingYes
-
Suitable for concrete installationYes
-
Suitable for outdoor usageNo
-
Suitable for raised floor installationYes
-
Suitable for wet cleaningNo
Instructions
-
Floor maintenanceDry
Materials
-
MaterialStainless steel
-
ColourStainless steel
Use conditions
-
Vertical load applied across large surface area (heavy load)3 kN
-
Vertical load applied across small surface area1.5 kN
Functions
-
Suitable for sub-floor ductYes
Shape
-
ShapeSquare
Texts
-
Cable outletWith cable outlet in cover
Connection
-
Number of conduit inlets1
-
Number of sockets SCHUKO6
Equipment
-
Number of built-in devices6
-
Number of outlet boxes2
Safety
-
Ingress Protection (IP) classIP20
-
Protection class in unused conditionIP30
Downloads
-
Product datasheet

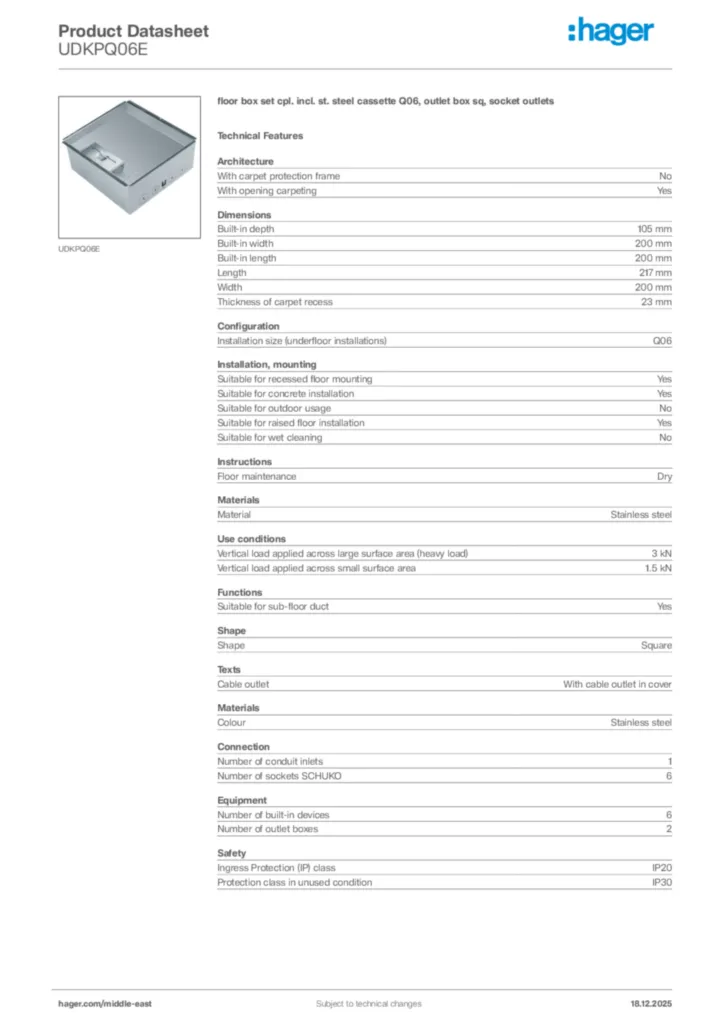

Hager Product data sheet UDKPQ06E
