Heating actuator 6 channels KNX, with regulation, 24/230V TYM646R
EAN-Nr.
3250618502022
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Connectivity
-
With bus system KNX radioNo
Voltage
-
Operating voltage over bus21 - 32 V
-
Output voltage24 - 230 V
-
Auxiliary tension110 - 230 V
Power
-
Power consumption during operation1 VA
-
Power consumption standby0.40 W
Electric current
-
Max. switching current0.16 A
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.5 - 4 mm²
-
Cross-section rigid conductor0.5 - 4 mm²
Dimensions
-
Number of width units4
Texts
-
FunctionBlocking function can be activated per actuator output via manual operation buttons or bus, With valve protection function
-
FuseShort-circuit proof and overload-proof (display using LEDs)
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

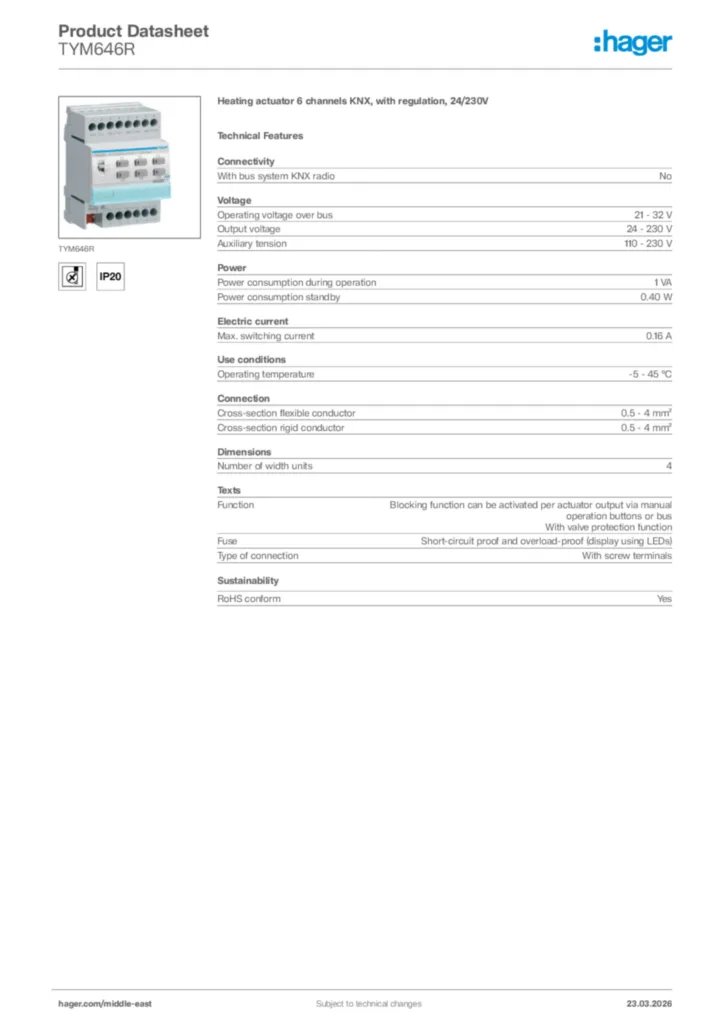

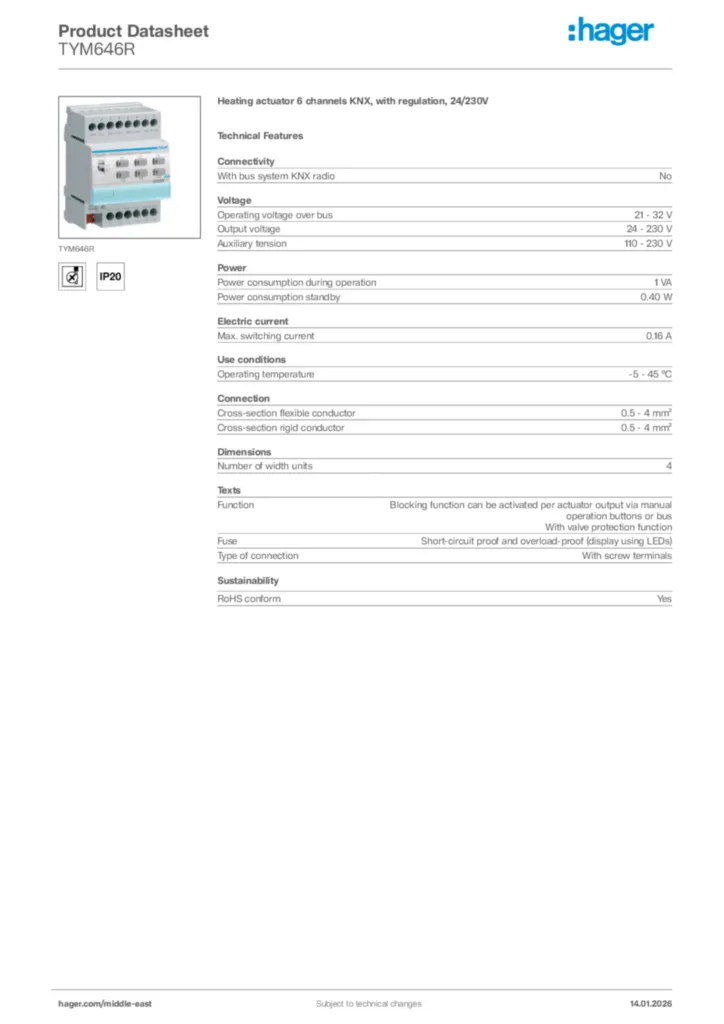

Hager Product data sheet TYM646R
