EAN-Nr.

3250617579865

Packaging

1 piece

Module multi applications 16 outputs TYF616

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Documentations

Download the sheet

Technical characteristics

With bus system KNX

Yes
With bus system KNX radio

No

Height

90 mm
Width

171 mm
Depth

64 mm
Number of width units

10

Colour

Light grey

Radio frequency bidirectional

No
With switch for manual switch

Yes

Rated current

10 A

Frequency

50 - 60 Hz

Output power

2,300 W

Rated operational voltage Ue

195 - 255 V
System supply voltage

30 V DC Via bus
Operating voltage over bus

21 - 32 V

Ingress Protection (IP) class

IP20

Operating temperature

-5 - 45 °C

Cross-section flexible conductor

0.75 - 4 mm²

Downloads

Product Image TYF616

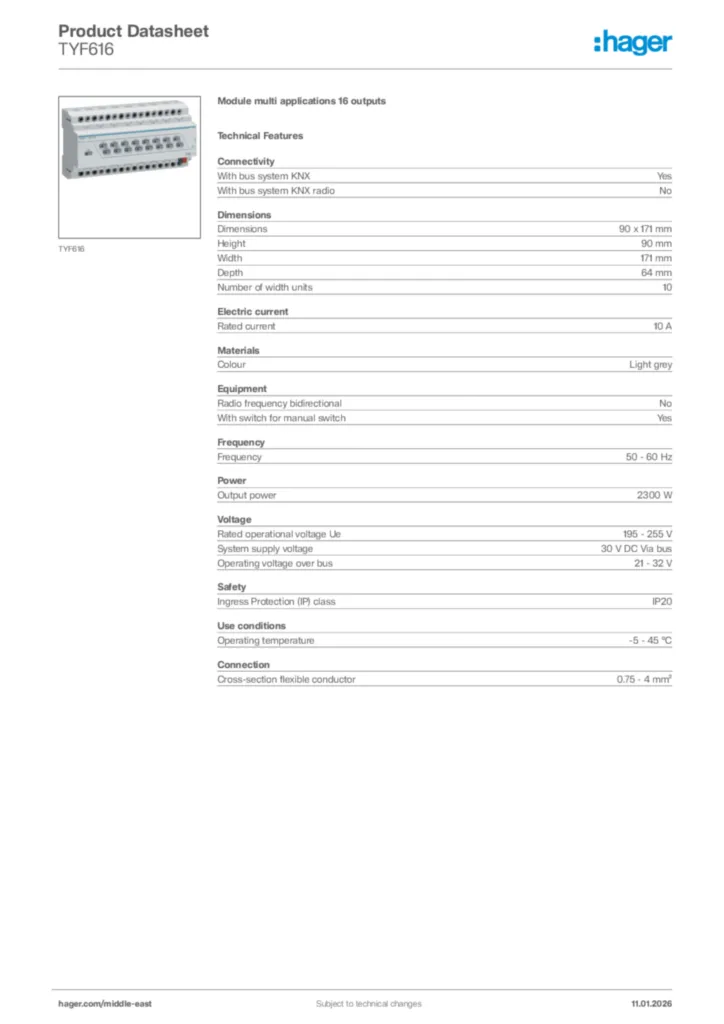

Product datasheet

Hager Product data sheet TYF616

Module multi applications 16 outputs

PDF
Installation manual

Installation manual en-GB 2017-08-31

PDF

821,09 kB
KNX product database

ETS Database for TYF616

KNX product database en-GB, fr-FR, de-DE 2023-08-25

VD4

1,73 MB
Application Guide

Application description TYF612 TYF616

Application Guide en-GB 2015-07-29

PDF

2,17 MB
