Output module 2x 6A /230V~, flush mounted, KNX TYB602F

Name: TYB602F
Brand: Hager
SKU: TYB602FP1

EAN-Nr.

3250616059405

Packaging

1 piece

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Environmental value
Documentations

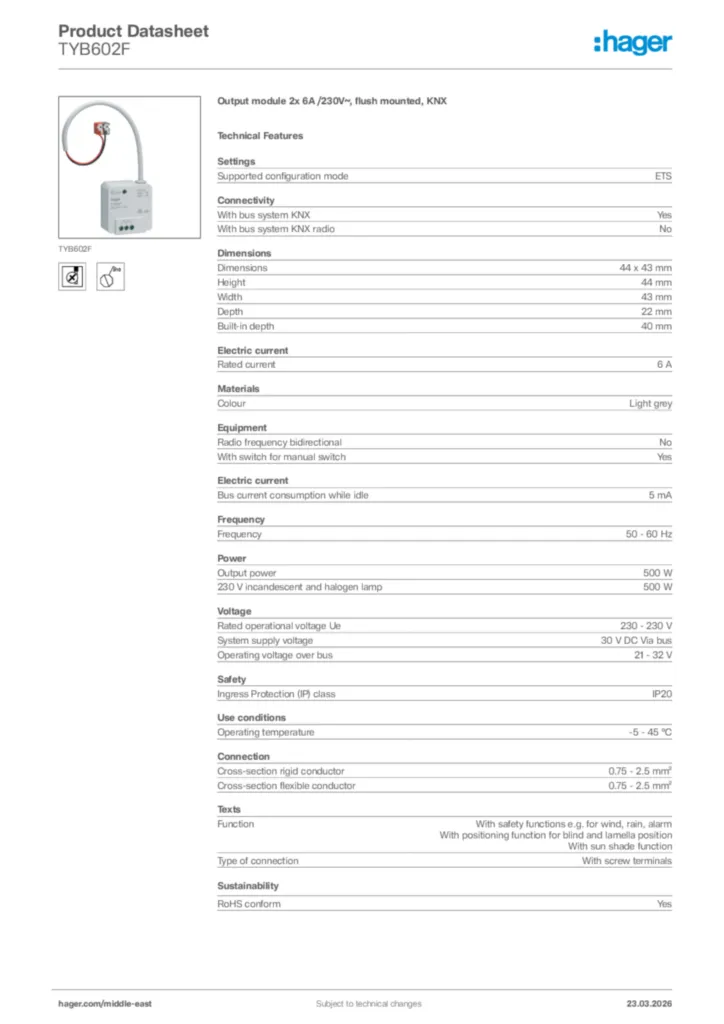

Download the sheet

Technical characteristics

With bus system KNX

Yes
With bus system KNX radio

No

Supported configuration mode

ETS

Height

44 mm
Width

43 mm
Depth

22 mm
Built-in depth

40 mm

Colour

Light grey

Radio frequency bidirectional

No
With switch for manual switch

Yes

Rated current

6 A
Bus current consumption while idle

5 mA

Frequency

50 - 60 Hz

Output power

500 W
230 V incandescent and halogen lamp

500 W

Rated operational voltage Ue

230 - 230 V
System supply voltage

30 V DC Via bus
Operating voltage over bus

21 - 32 V

Ingress Protection (IP) class

IP20

Operating temperature

-5 - 45 °C

Cross-section rigid conductor

0.75 - 2.5 mm²
Cross-section flexible conductor

0.75 - 2.5 mm²

Function

With safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
Type of connection

With screw terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
