Output module 1x 10A /230V~, flush mounted, KNX TYB601B
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS
Dimensions
-
Height44 mm
-
Width43 mm
-
Depth22 mm
-
Built-in depth40 mm
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Rated current10 A
-
Bus current consumption while idle5 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Power incandescent lamp 230 V600 - 600 W
-
Output power500 W
-
230 V incandescent and halogen lamp600 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

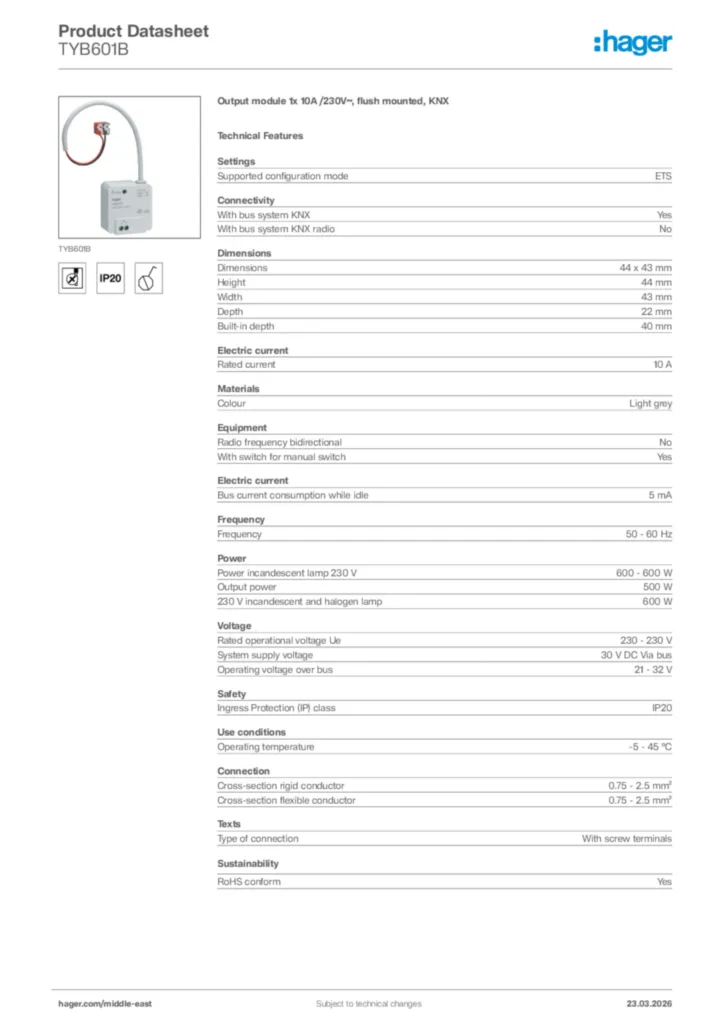

Hager Product data sheet TYB601B
Output module 1x 10A /230V~, flush mounted, KNX
PDF -
Enduserquickguide
Enduserquickguide en-GB 2019-11-08
PDF334,01 kB -
KNX product database
ETS Database for TYB601B
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01
KNXPROD151,58 kB -
Application Guide
Application description ETS TYB601B
Application Guide en-GB, pl-PL 2013-10-28
PDF2,87 MB
Application description ETS TYB601B
Application Guide en-GB, nn-NO, pl-PL 2014-01-08
PDF2,90 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-01-13
PDF129,43 kB
