1 flush mounted output 4A twisted pair TYB601A
EAN-Nr.
3250616059610
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS
Dimensions
-
Height29 mm
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Rated current4 A
-
Bus current consumption while idle5 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Power incandescent lamp 230 V600 - 600 W
-
Output power600 W
-
230 V incandescent and halogen lamp600 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
Type of connectionWith screw terminals
Downloads
-
Product datasheet

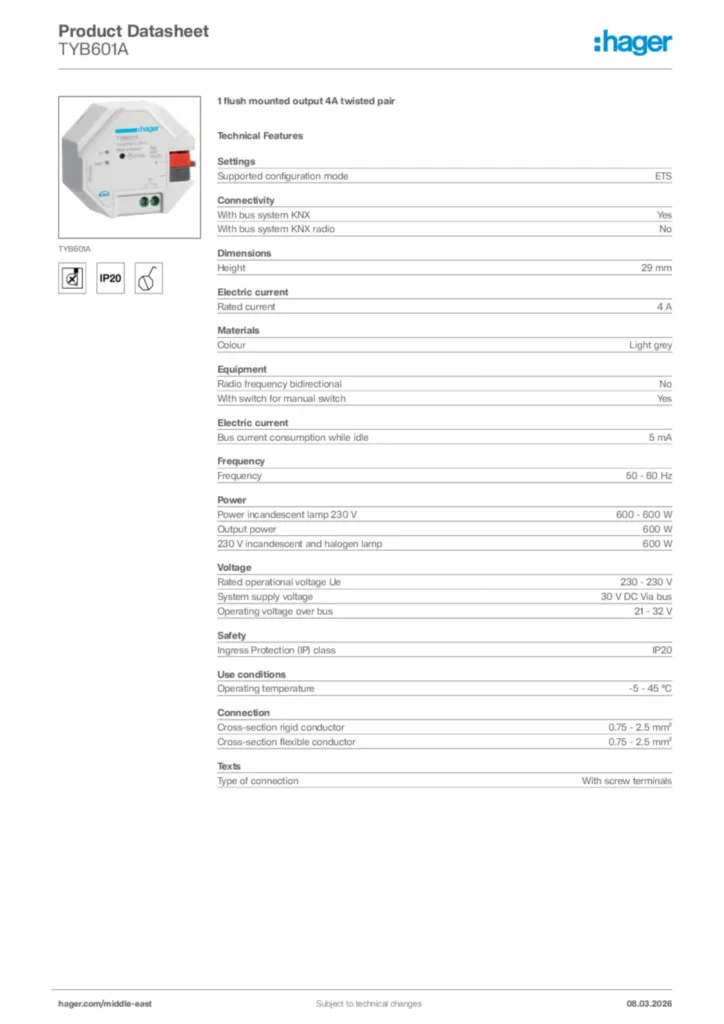

Hager Product data sheet TYB601A
1 flush mounted output 4A twisted pair
PDF -
Installation manual
Module 1 sortie à encastrer TYB601A
Installation manual en-GB, fr-FR, de-DE, it-IT, nl-NL 2013-04-24
PDF645,65 kB -
KNX product database
Logiciel d'application ETS du TYB601A
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01
KNXPROD158,47 kB
Logiciel d'application ETS du TYB601A
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01
VD5192,63 kB -
Application Guide
Description d'application ETS TYB601A TYB602A EN
Application Guide en-GB 2013-10-28
PDF3,52 MB
