Gateway KNX-DALI, tunable white, 4 modules TYA670W
EAN-Nr.
3250618502374
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Equipment
-
Web serverYes
-
Number of channels1
Voltage
-
Operating voltage240 - 240 V
-
Operating voltage over bus21 - 32 V
Connectivity
-
Type of interface bus system/media gatewayLight system interface/DALI
Settings
-
Supported configuration modeETS
Power
-
Power consumption VA0.15 VA
Safety
-
Ingress Protection (IP) classIP30
Use conditions
-
Operating temperature5 - 45 °C
Controls and indicators
-
With LED indicationYes
Dimensions
-
Width72 mm
-
Depth70 mm
-
Number of width units4
Connection
-
Connector/plug typeDRA (DIN-rail Adapter)
Texts
-
VoltageAs DALI master and power supply for DALI devices
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

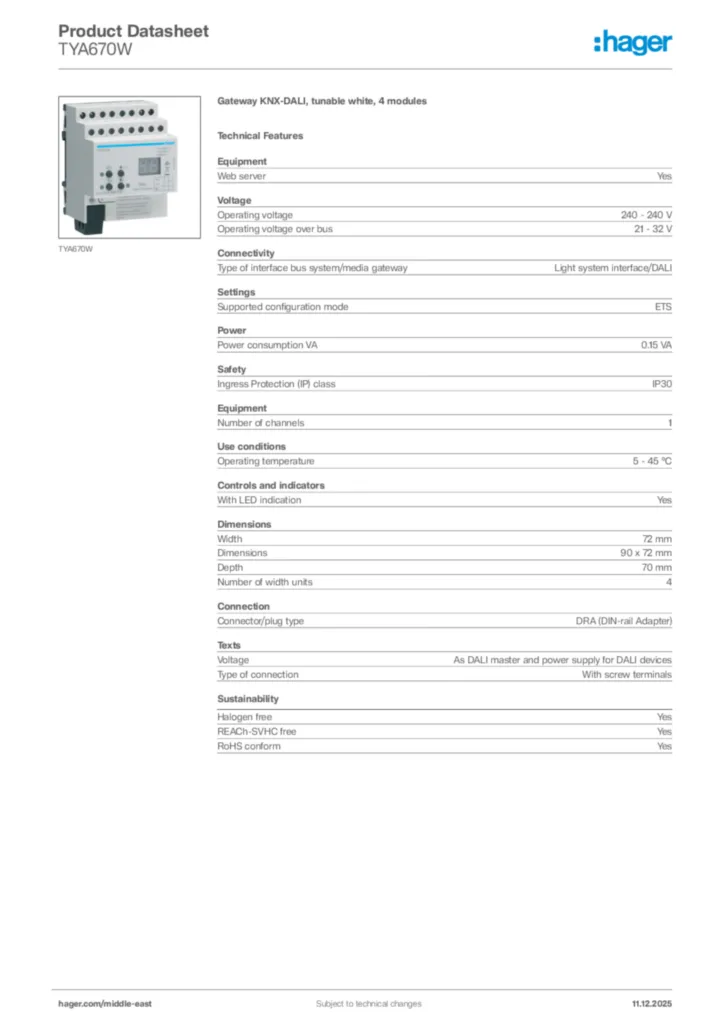

Product datasheet
Hager Product data sheet TYA670W
Gateway KNX-DALI, tunable white, 4 modules
PDF -
Installation manual
Installation manual en-GB, nl-NL 2018-02-09
PDF3,02 MB -
KNX product database
ETS Database for TYA670W / TYA670WD2
KNX product database fr-FR 2020-01-01
KNXPROD9,43 MB
ETS Database for TYA670W / TYA670WD2
KNX product database fr-FR 2020-01-01
VD510,72 MB
ETS Database for TYA670W / TYA670WD2
KNX product database en-GB 2020-01-01
KNXPROD6,10 MB
ETS Database for TYA670W / TYA670WD2
KNX product database de-DE 2020-01-01
KNXPROD6,15 MB
ETS Database for TYA670W / TYA670WD2
KNX product database en-GB 2020-01-01
VD56,82 MB
ETS Database for TYA670W / TYA670WD2
KNX product database de-DE 2020-01-01
VD56,93 MB -
Application Guide
Application description TYA670W
Application Guide en-GB 2018-07-12
PDF3,55 MB
