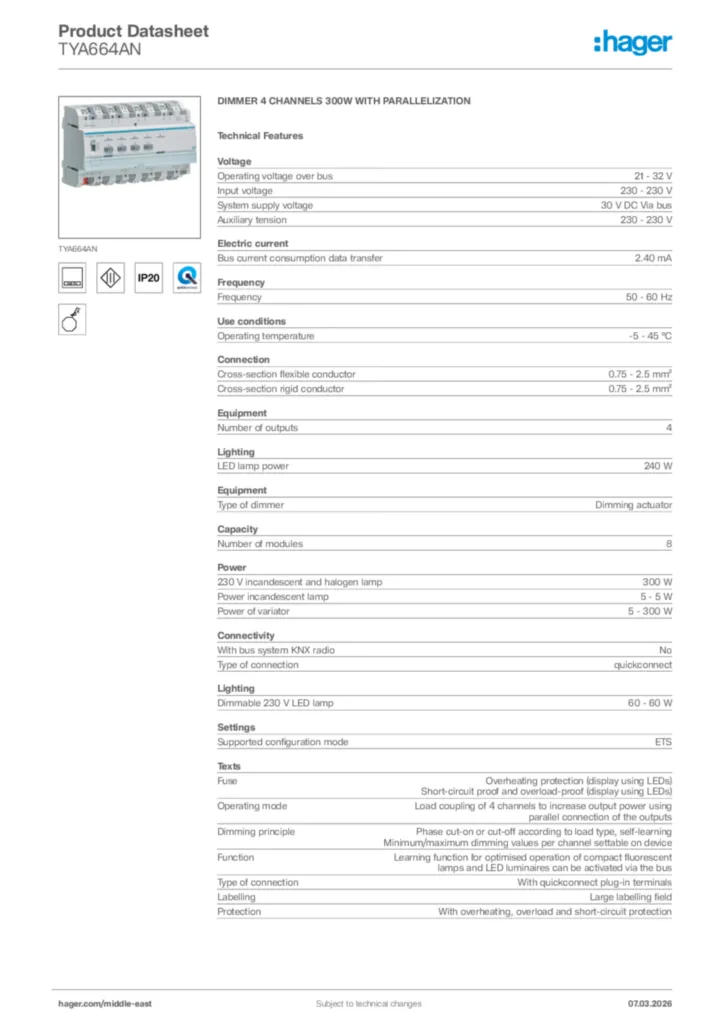

DIMMER 4 CHANNELS 300W WITH PARALLELIZATION TYA664AN
EAN-Nr.
3250617579889
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Voltage
-
Operating voltage over bus21 - 32 V
-
Input voltage230 - 230 V
-
System supply voltage30 V DC Via bus
-
Auxiliary tension230 - 230 V
Electric current
-
Bus current consumption data transfer2.40 mA
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Equipment
-
Number of outputs4
-
Type of dimmerDimming actuator
Lighting
-
LED lamp power240 W
-
Dimmable 230 V LED lamp60 - 60 W
Capacity
-
Number of modules8
Power
-
230 V incandescent and halogen lamp300 W
-
Power incandescent lamp5 - 5 W
-
Power of variator5 - 300 W
Connectivity
-
With bus system KNX radioNo
-
Type of connectionquickconnect
Settings
-
Supported configuration modeETS
Texts
-
FuseOverheating protection (display using LEDs), Short-circuit proof and overload-proof (display using LEDs)
-
Operating modeLoad coupling of 4 channels to increase output power using parallel connection of the outputs
-
Dimming principlePhase cut-on or cut-off according to load type, self-learning, Minimum/maximum dimming values per channel settable on device
-
FunctionLearning function for optimised operation of compact fluorescent lamps and LED luminaires can be activated via the bus
-
Type of connectionWith quickconnect plug-in terminals
-
LabellingLarge labelling field
-
ProtectionWith overheating, overload and short-circuit protection
