Dimmer 1 channel 300W TYA661AN

Name: TYA661AN
Brand: Hager
SKU: TYA661ANP1

EAN-Nr.

3250616059375

Packaging

1 piece

Technical characteristics
Environmental value
Documentations

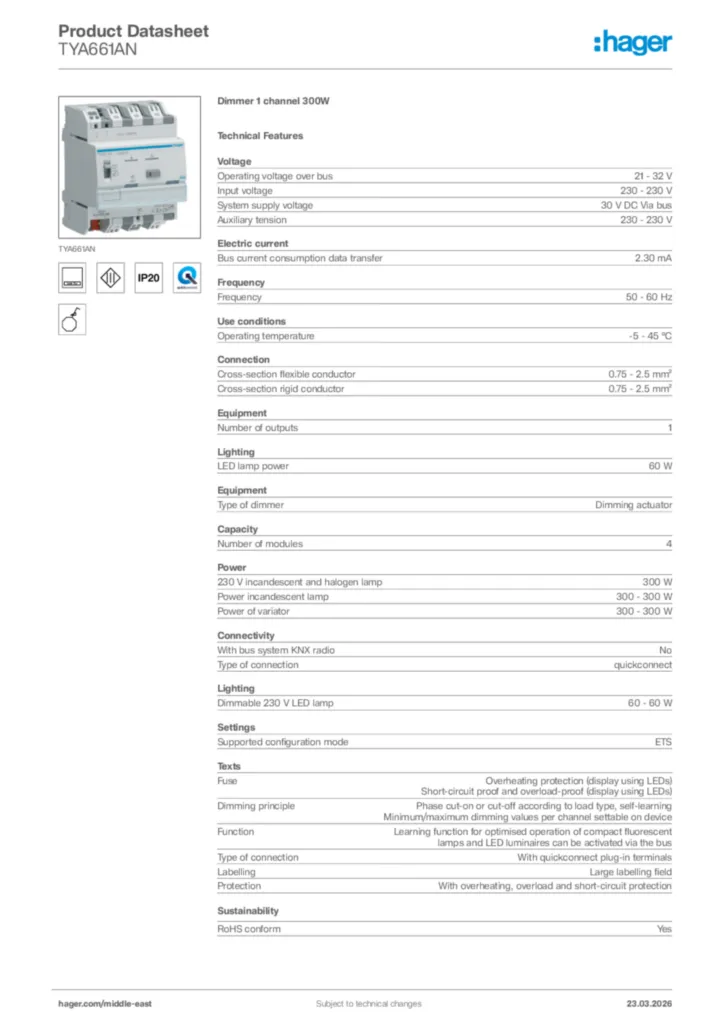

Download the sheet

Technical characteristics

Operating voltage over bus

21 - 32 V
Input voltage

230 - 230 V
System supply voltage

30 V DC Via bus
Auxiliary tension

230 - 230 V

Bus current consumption data transfer

2.30 mA

Frequency

50 - 60 Hz

Operating temperature

-5 - 45 °C

Cross-section flexible conductor

0.75 - 2.5 mm²
Cross-section rigid conductor

0.75 - 2.5 mm²

Number of outputs

1
Type of dimmer

Dimming actuator

LED lamp power

60 W
Dimmable 230 V LED lamp

60 - 60 W

Number of modules

4

230 V incandescent and halogen lamp

300 W
Power incandescent lamp

300 - 300 W
Power of variator

300 - 300 W

With bus system KNX radio

No
Type of connection

quickconnect

Supported configuration mode

ETS

Fuse

Overheating protection (display using LEDs), Short-circuit proof and overload-proof (display using LEDs)
Dimming principle

Phase cut-on or cut-off according to load type, self-learning, Minimum/maximum dimming values per channel settable on device
Function

Learning function for optimised operation of compact fluorescent lamps and LED luminaires can be activated via the bus
Type of connection

With quickconnect plug-in terminals
Labelling

Large labelling field
Protection

With overheating, overload and short-circuit protection

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
