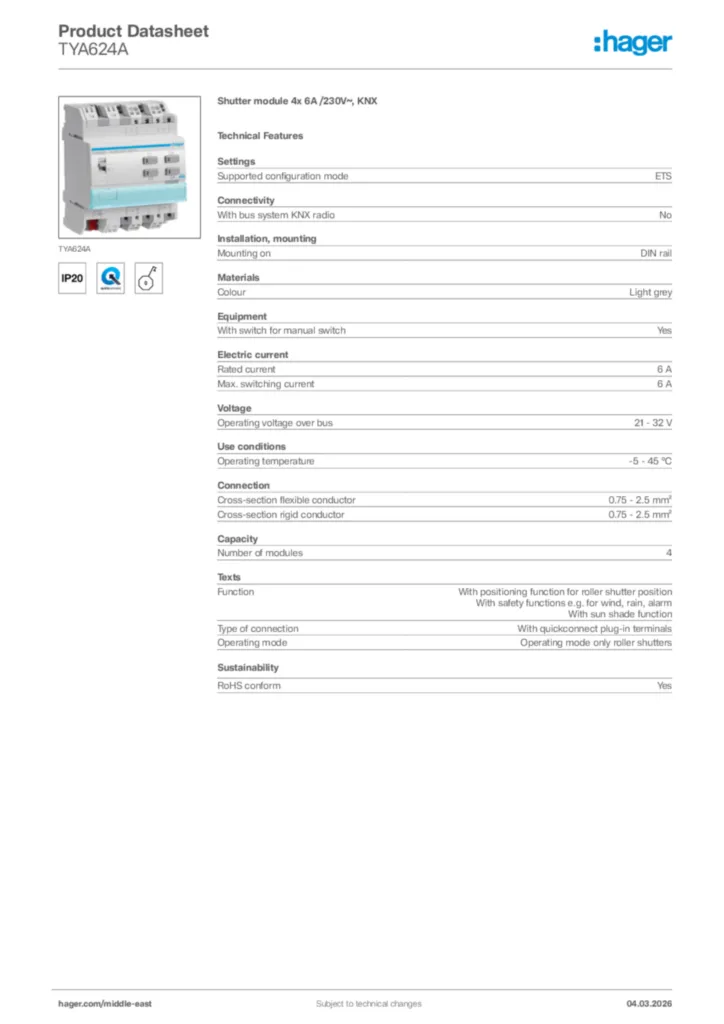

Shutter module 4x 6A /230V~, KNX TYA624A

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Environmental value
Documentations

Download the sheet

Technical characteristics

Supported configuration mode

ETS

With bus system KNX radio

No

Mounting on

DIN rail

With switch for manual switch

Yes

Colour

Light grey

Rated current

6 A
Max. switching current

6 A

Operating voltage over bus

21 - 32 V

Operating temperature

-5 - 45 °C

Cross-section flexible conductor

0.75 - 2.5 mm²
Cross-section rigid conductor

0.75 - 2.5 mm²

Number of modules

4

Function

With positioning function for roller shutter position, With safety functions e.g. for wind, rain, alarm, With sun shade function
Type of connection

With quickconnect plug-in terminals
Operating mode

Operating mode only roller shutters

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
