Output module 4x 4A /230V~, KNX TYA604A

Name: TYA604A
Brand: Hager
SKU: TYA604AP1

EAN-Nr.

3250616059863

Packaging

1 piece

Technical characteristics
Environmental value
Documentations

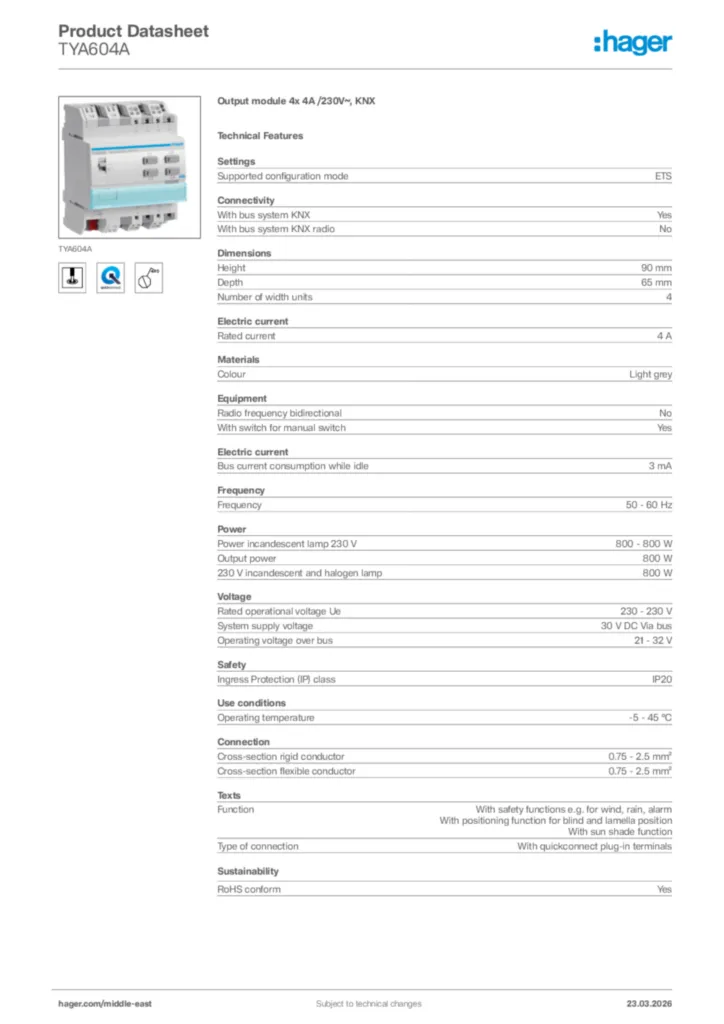

Download the sheet

Technical characteristics

With bus system KNX

Yes
With bus system KNX radio

No

Supported configuration mode

ETS

Height

90 mm
Depth

65 mm
Number of width units

4

Colour

Light grey

Radio frequency bidirectional

No
With switch for manual switch

Yes

Rated current

4 A
Bus current consumption while idle

3 mA

Frequency

50 - 60 Hz

Power incandescent lamp 230 V

800 - 800 W
Output power

800 W
230 V incandescent and halogen lamp

800 W

Rated operational voltage Ue

230 - 230 V
System supply voltage

30 V DC Via bus
Operating voltage over bus

21 - 32 V

Ingress Protection (IP) class

IP20

Operating temperature

-5 - 45 °C

Cross-section rigid conductor

0.75 - 2.5 mm²
Cross-section flexible conductor

0.75 - 2.5 mm²

Function

With safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
Type of connection

With quickconnect plug-in terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
