Output module 2x 6A /230V~, 2 inputs, flush mounted, KNX TXB692F
EAN-Nr.
3250616048881
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Settings
-
Supported configuration modeETS, easy
Connectivity
-
With bus system KNX radioNo
Installation, mounting
-
Mounting onFlush mounting
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Rated current6 A
-
Max. switching current6 A
Voltage
-
Operating voltage over bus21 - 32 V
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Capacity
-
Number of modules0
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, Binary input functions: Switching, dimming, blind, value transmitter, scene, priority, timer operation, subplate, With positioning function for blind and lamella position
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

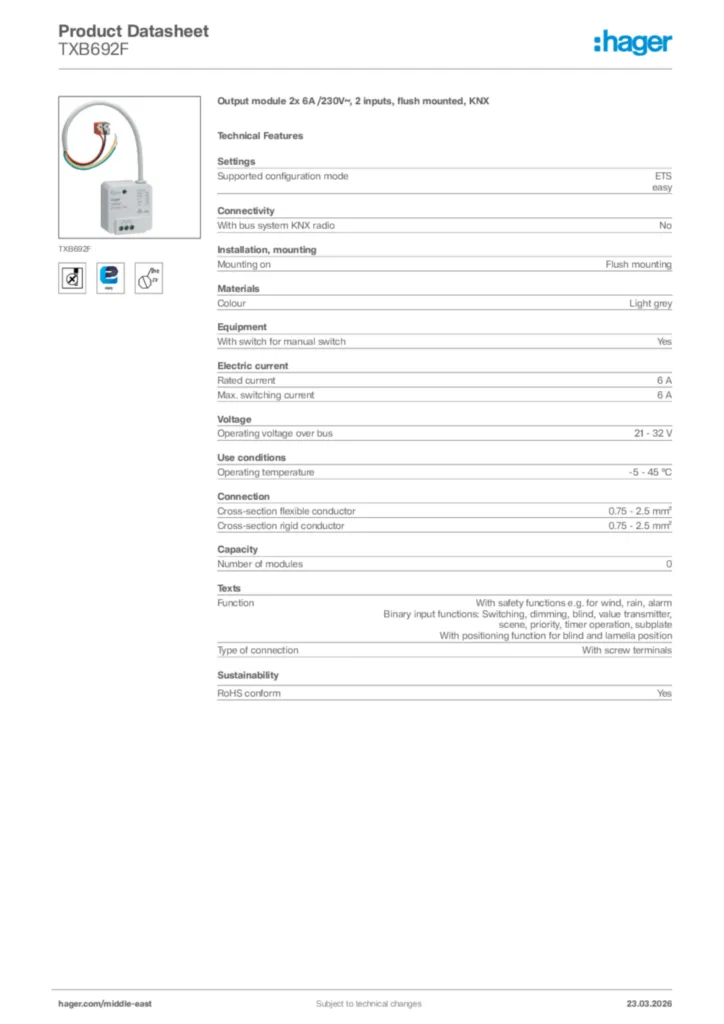

Hager Product data sheet TXB692F
