Binary input 4 fold + LED output 4 fold, flush mounted, KNX TXB344
EAN-Nr.
3250616049055
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Bus systemEIB
Settings
-
Supported configuration modeETS, easy
Electric current
-
Number of entry circuits4
Connectivity
-
With bus system KNX radioNo
Equipment
-
External signal voltage necessaryYes
-
Radio frequency bidirectionalNo
-
With batteryNo
-
With HVAC controlNo
Installation, mounting
-
Mounting onFlush mounting
Lighting
-
LED controllingYes
Materials
-
MaterialPolyamide (PA)
-
ColourLight grey
-
RAL code7035
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature0 - 45 °C
Voltage
-
Input voltage5 - 5 V
-
Operating voltage over bus21 - 32 V
-
Type voltage supplyDC
-
System supply voltage30 V DC Via bus
Texts
-
Installation modeFor flush-mounted and hollow wall mounting
-
Type of connectionWith pre-assembled cable
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

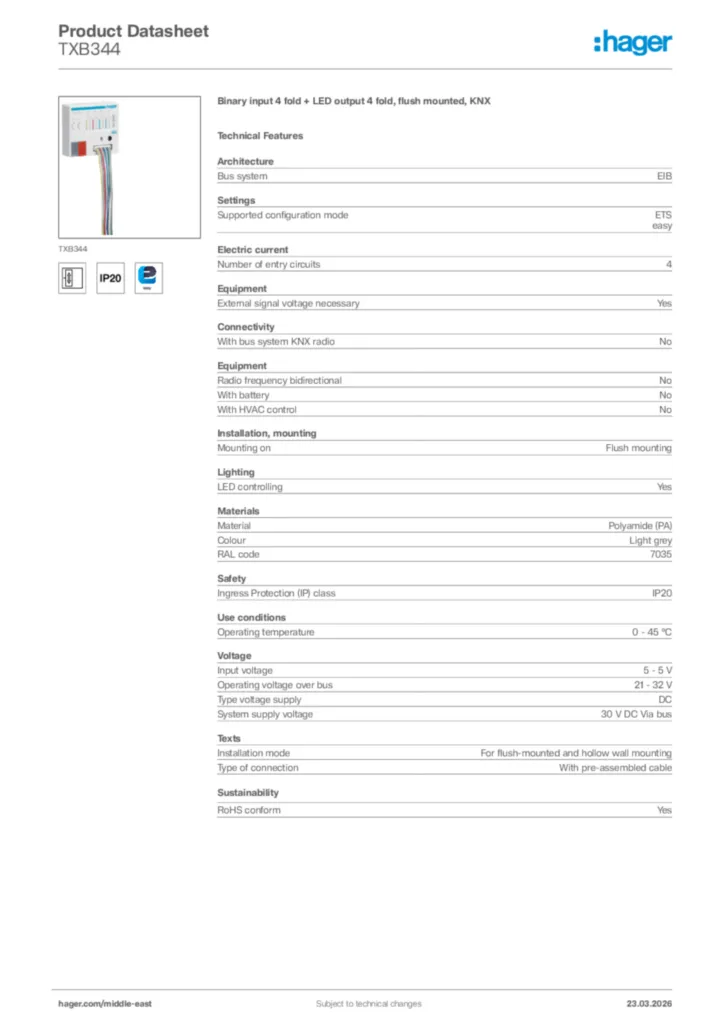

Hager Product data sheet TXB344
Binary input 4 fold + LED output 4 fold, flush mounted, KNX
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-02-15
PDF936,22 kB -
KNX product database
Logiciel d'application ETS du TXB344
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2023-08-25
VD2152,98 kB -
Application Guide
Description d'application TXB322AU_TXB344-AU
Application Guide en-GB, pl-PL 2020-01-01
PDF913,44 kB
