Binary input 4 fold, flush mounted, KNX TXB304

EAN-Nr.
3250616049413
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Binary input 4 fold, flush mounted, KNX

TXB304

  • Technical characteristics
  • Environmental value
  • Documentations
Download the sheet

Technical characteristics

Architecture
  • Bus system
    EIB
Settings
  • Supported configuration mode
    ETS, easy
Electric current
  • Number of entry circuits
    4
Connectivity
  • With bus system KNX radio
    No
Equipment
  • External signal voltage necessary
    No
  • Radio frequency bidirectional
    No
  • With battery
    No
  • With HVAC control
    No
Installation, mounting
  • Mounting on
    Flush mounting
Lighting
  • LED controlling
    No
Materials
  • Material
    Plastic
  • Colour
    Light grey
  • RAL code
    7035
Safety
  • Ingress Protection (IP) class
    IP30
Use conditions
  • Operating temperature
    0 - 45 °C
Voltage
  • Input voltage
    5 - 5 V
  • Operating voltage over bus
    21 - 32 V
  • Type voltage supply
    DC
  • System supply voltage
    30 V DC Via bus
Texts
  • Installation mode
    For flush-mounted and hollow wall mounting
  • Type of connection
    With pre-assembled cable

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration TXB304
PDF
Hager RoHS report TXB304
PDF

Downloads

  • Image TXB304 | Hager

    Product Image TXB304

  • Product datasheet

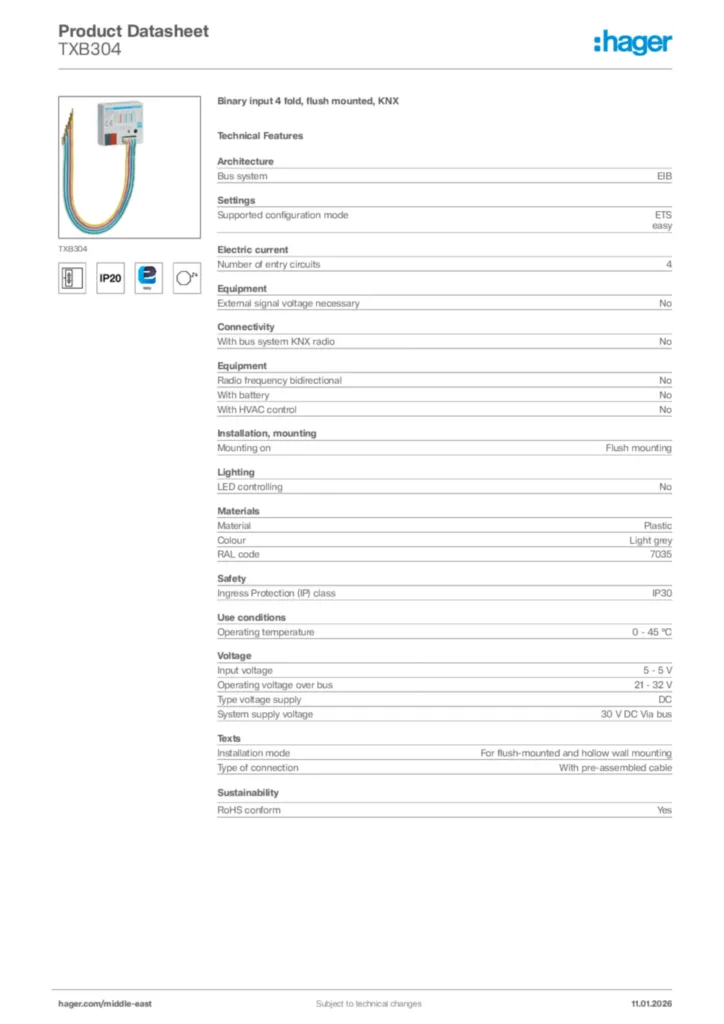

    Image Hager Product data sheet TXB304 | Hager

    Hager Product data sheet TXB304

    Binary input 4 fold, flush mounted, KNX

    PDF

  • Installation manual

    Image Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2021-12-23 | Hager

    Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2021-12-23

    PDF
    1017,39 kB

  • KNX product database

    Image Logiciel d'application ETS du TXB304 | Hager

    Logiciel d'application ETS du TXB304

    KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2023-08-25

    VD2
    97,19 kB

  • Application Guide

    Image Application description ETS TXA304_TXA310_TXB302_TXB304 | Hager

    Application description ETS TXA304_TXA310_TXB302_TXB304

    Application Guide en-GB 2015-02-11

    PDF
    1,64 MB
    Image Application description Easy TXA304_TXA306_TXA310_TXB302_TXB304_TXB322_TXB344 | Hager

    Application description Easy TXA304_TXA306_TXA310_TXB302_TXB304_TXB322_TXB344

    Application Guide en-GB 2015-02-11

    PDF
    2,35 MB
    Image Description d'application TXB302_304 | Hager

    Description d'application TXB302_304

    Application Guide en-GB, pl-PL 2020-01-01

    PDF
    648,37 kB

  • Function description

    Image Description d'application TXB3XX_TXA3XX | Hager

    Description d'application TXB3XX_TXA3XX

    Function description en-GB 2020-01-01

    PDF
    1,48 MB
