Binary input 2 fold, flush mounted, KNX TXB302
EAN-Nr.
3250616049420
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Architecture
-
Bus systemEIB
Settings
-
Supported configuration modeETS, easy
Electric current
-
Number of entry circuits2
Connectivity
-
With bus system KNX radioNo
Equipment
-
External signal voltage necessaryNo
-
Radio frequency bidirectionalNo
-
With batteryNo
-
With HVAC controlNo
Installation, mounting
-
Mounting onFlush mounting
Internal use only
-
Number of half modules of 17,5 mm0
Lighting
-
LED controllingNo
Materials
-
MaterialPlastic
-
ColourLight grey
-
RAL code7035
Safety
-
Ingress Protection (IP) classIP30
Use conditions
-
Operating temperature0 - 45 °C
Voltage
-
Input voltage5 - 5 V
-
Operating voltage over bus21 - 32 V
-
Type voltage supplyDC
-
System supply voltage30 V DC Via bus
Texts
-
Installation modeFor flush-mounted and hollow wall mounting
-
Type of connectionWith pre-assembled cable
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

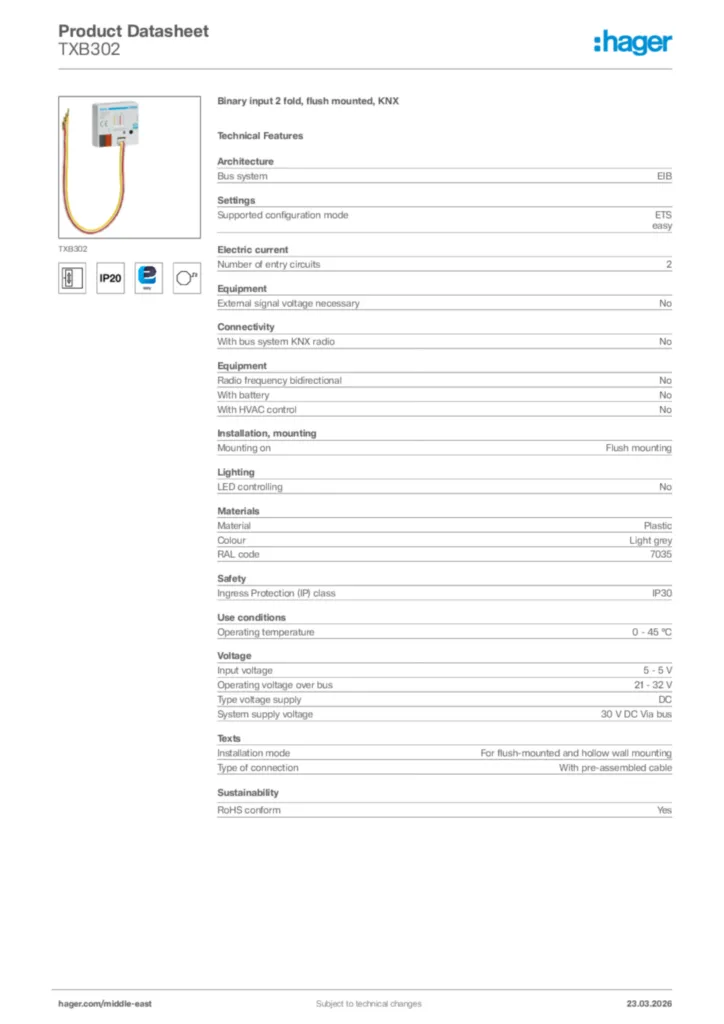

Hager Product data sheet TXB302
