    DIMMER 4 CHANNELS 300W NE WITH PARALLELIZATION TXA664AN

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    DIMMER 4 CHANNELS 300W NE WITH PARALLELIZATION

    TXA664AN

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Voltage
    • Operating voltage over bus
      21 - 32 V
    • Input voltage
      230 - 230 V
    • System supply voltage
      30 V DC Via bus
    • Auxiliary tension
      230 - 230 V
    Electric current
    • Bus current consumption data transfer
      2.40 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Use conditions
    • Operating temperature
      -5 - 45 °C
    Connection
    • Cross-section flexible conductor
      0.75 - 2.5 mm²
    • Cross-section rigid conductor
      0.75 - 2.5 mm²
    Equipment
    • Number of outputs
      4
    • Type of dimmer
      Dimming actuator
    Lighting
    • LED lamp power
      240 W
    Capacity
    • Number of modules
      8
    Power
    • 230 V incandescent and halogen lamp
      300 W
    • Power incandescent lamp
      5 - 5 W
    • Power of variator
      5 - 300 W
    Connectivity
    • With bus system KNX radio
      No
    • Type of connection
      quickconnect
    Settings
    • Supported configuration mode
      ETS, easy
    Texts
    • Fuse
      Overheating protection (display using LEDs), Short-circuit and overload-proof (electronic fuse), Short-circuit proof and overload-proof (display using LEDs)
    • Operating mode
      Load coupling of 4 channels to increase output power using parallel connection of the outputs
    • Dimming principle
      Phase cut-on or cut-off according to load type, self-learning, Minimum/maximum dimming values per channel settable on device
    • Function
      Learning function for optimised operation of compact fluorescent lamps and LED luminaires can be activated via the bus
    • Type of connection
      With quickconnect plug-in terminals
    • Labelling
      Large labelling field
    • Protection
      With overheating, overload and short-circuit protection

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration TXA664AN
    PDF
    RoHS report TXA664AN
    PDF
    PEP document en-GB 2023-11-07
    PDF
    435,30 kB

    Downloads

    • Image TXA664AN | Hager

      Product Image TXA664AN

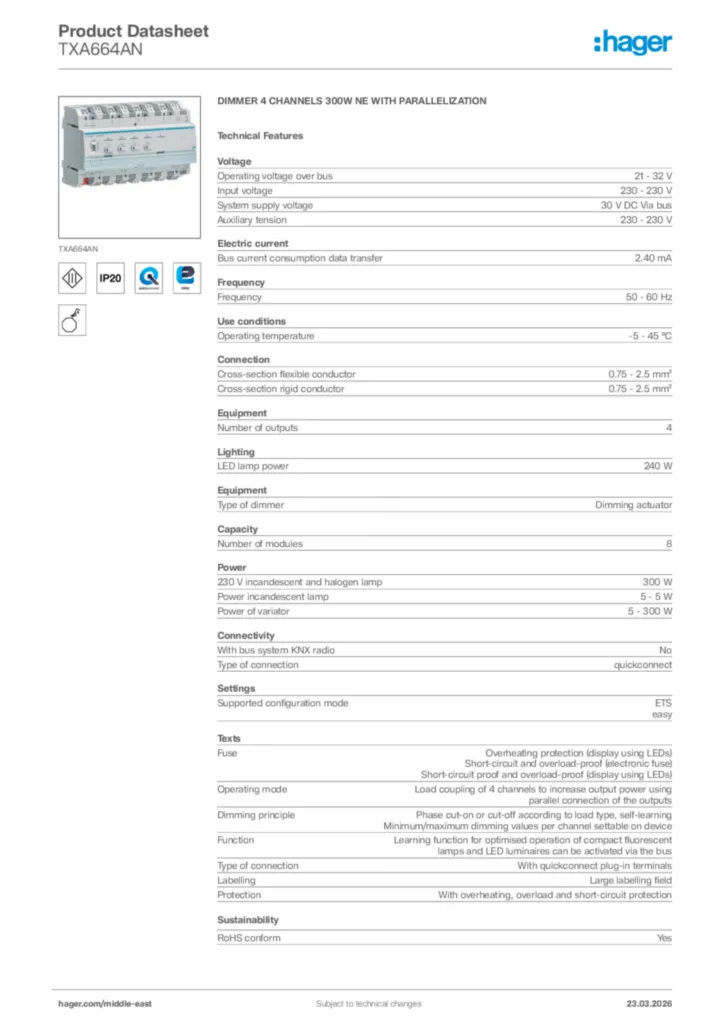

    • Product datasheet

      Image Hager Product data sheet TXA664AN | Hager

      Hager Product data sheet TXA664AN

      DIMMER 4 CHANNELS 300W NE WITH PARALLELIZATION

      PDF

    • Installation manual

      Image Installation manual en-GB, pl-PL 2015-04-01 | Hager

      Installation manual en-GB, pl-PL 2015-04-01

      PDF
      3,84 MB

    • KNX product database

      Image ETS Database for TXA664AN | Hager

      ETS Database for TXA664AN

      KNX product database es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01

      KNXPROD
      221,73 kB
