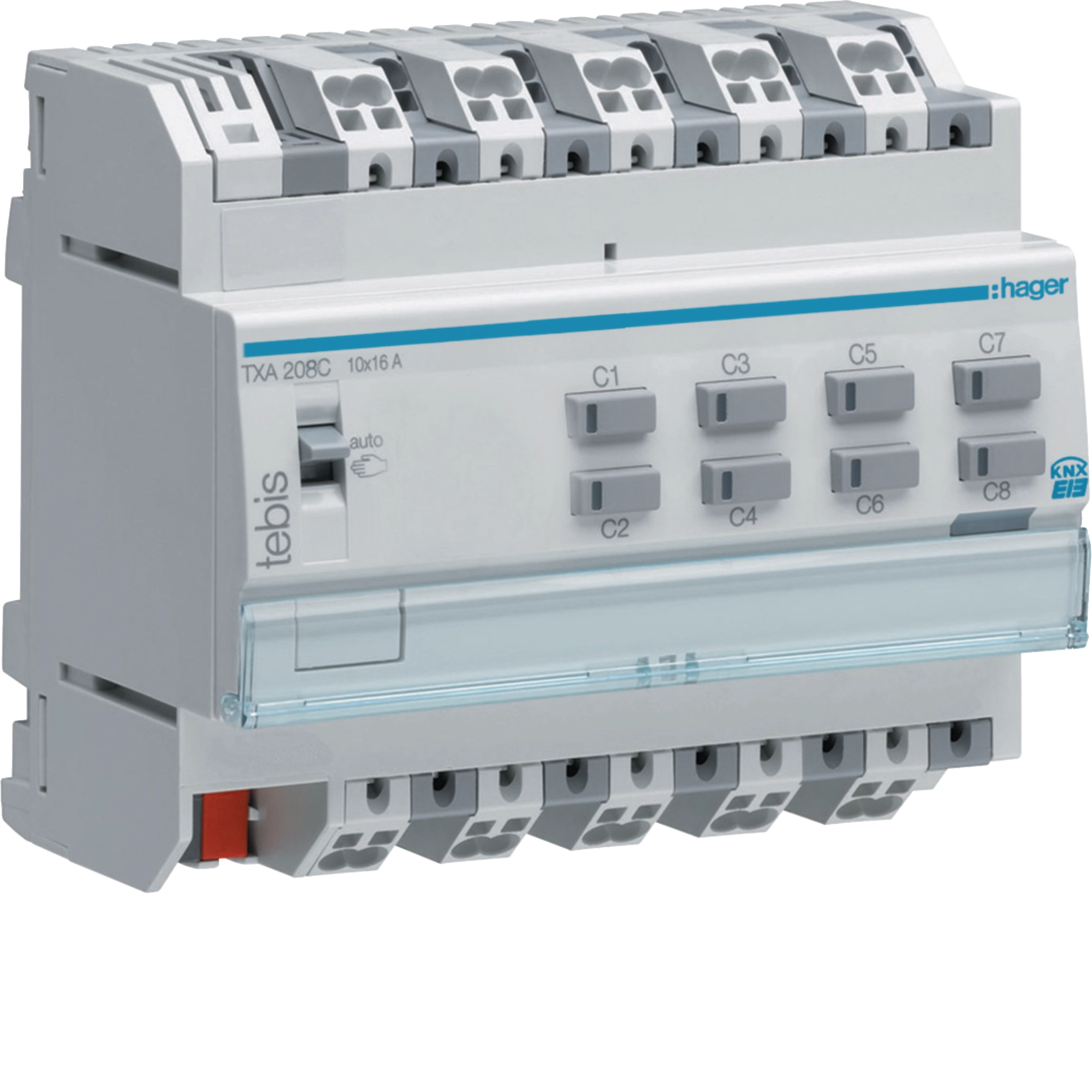

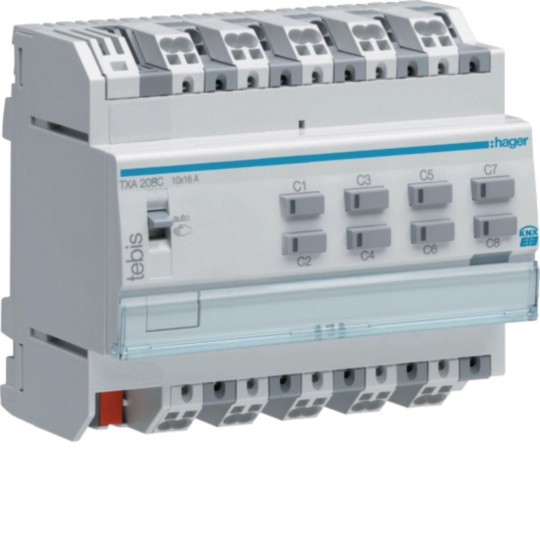

8-fold output module 16A/230V~ with manual override without bus supply TXA208C
EAN-Nr.
3250616049550
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS, easy
Dimensions
-
Number of width units6
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Rated current16 A
Power
-
Output power1,200 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature0 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Downloads
-
Product datasheet
Hager Product data sheet TXA208C
8-fold output module 16A/230V~ with manual override without bus supply
PDF -
Installation manual
Module 8 sorties TXA208
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL 2020-01-01
PDF1,23 MB -
KNX product database
Logiciel d'application ETS du TXA208
KNX product database en-GB, fr-FR, de-DE 2023-08-25
VD2573,20 kB -
Application Guide
Description d'application TXA208
Application Guide en-GB 2020-01-01
PDF963,71 kB
Description d'application TXA208
Application Guide en-GB 2020-01-01
PDF1,25 MB -
Function description
Description d'application TXA20Y
Function description en-GB 2020-01-01
PDF728,96 kB
More documentation
