Presence detector 360° KNX, 2 channels, with BCU TX510

Name: TX510
Brand: Hager
SKU: TX5101

EAN-Nr.

3250616045101

Packaging

1 piece

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Environmental value
Documentations

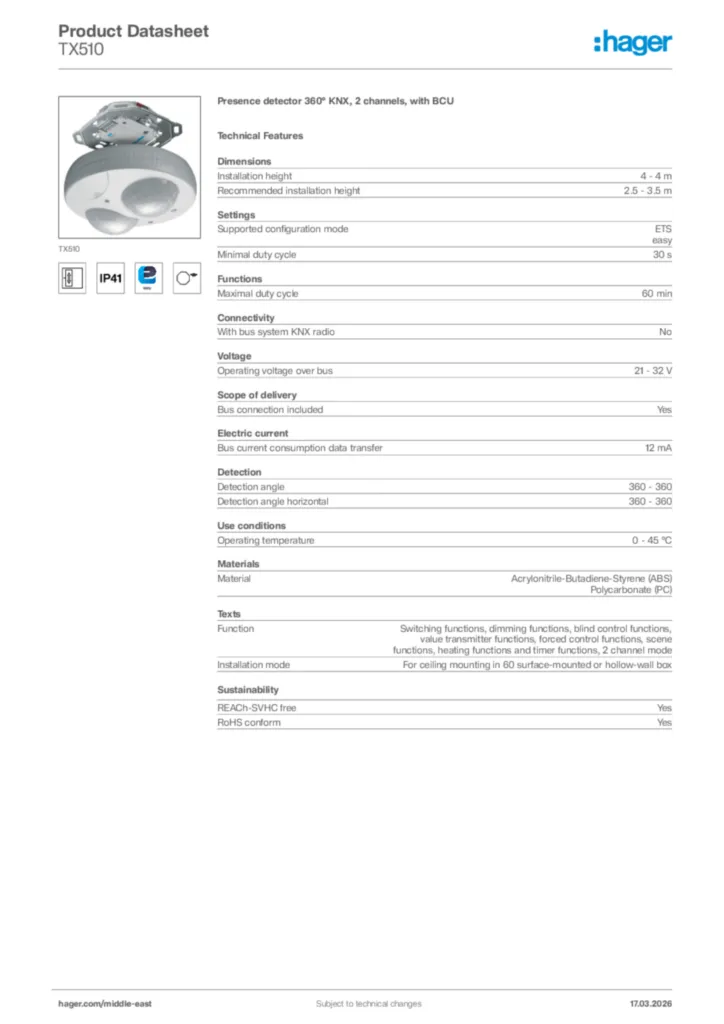

Download the sheet

Technical characteristics

Installation height

4 - 4 m
Recommended installation height

2.5 - 3.5 m

Supported configuration mode

ETS, easy
Minimal duty cycle

30 s

Maximal duty cycle

60 min

With bus system KNX radio

No

Operating voltage over bus

21 - 32 V

Bus connection included

Yes

Bus current consumption data transfer

12 mA

Detection angle

360 - 360
Detection angle horizontal

360 - 360

Operating temperature

0 - 45 °C

Material

Acrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)

Function

Switching functions, dimming functions, blind control functions, value transmitter functions, forced control functions, scene functions, heating functions and timer functions, 2 channel mode
Installation mode

For ceiling mounting in 60 surface-mounted or hollow-wall box

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
