Kit detector RF white + 1 output receiver 10A TRE700
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Dimensions
-
Installation height4 - 4 m
Settings
-
Supported configuration modeETS, easy
-
Minimal duty cycle5 s
Functions
-
Maximal duty cycle30 min
Connectivity
-
With bus system KNX radioYes
Lighting
-
Response brightness adjustable5 - 1,000 lx
Detection
-
Detection angle adjustable45 - 90 °
-
Detection angle horizontal220 - 220
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
Texts
-
FunctionSwitch-off pre-warning on dimmer inserts, With memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours, Reset function (to factory setting)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

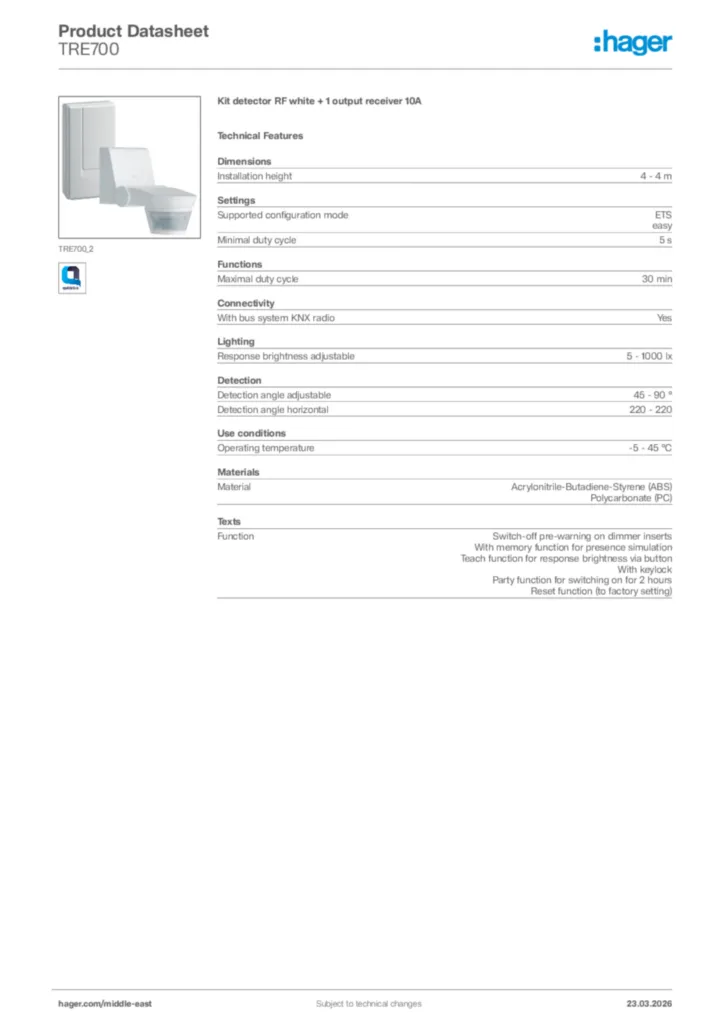

Product datasheet
Hager Product data sheet TRE700
Kit detector RF white + 1 output receiver 10A
PDF -
Product attachment
Notice de configuration quicklink pour produits radio
Product attachment en-GB, es-ES, nn-NO, pt-PT, sv-SE 2020-01-01
PDF5,92 MB -
KNX product database
Logiciel d'application ETS du TRE201
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
VD5117,73 kB
Logiciel d'application ETS du TRE201
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
KNXPROD123,65 kB -
Declaration of conformity
Declaration of conformity International 2022-07-26
PDF164,19 kB
