Motion detector IR solar, radio, IP55, surface mounted, white TRE530
EAN-Nr.
3250617573726
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Dimensions
-
Installation height4 - 4 m
-
Recommended installation height2.50 - 2.50 m
Settings
-
Supported configuration modeETS, easy, quicklink
-
Minimal duty cycle30 s
Functions
-
Maximal duty cycle15 min
Connectivity
-
With bus system KNX radioYes
Scope of delivery
-
Bus connection includedYes
Lighting
-
Response brightness adjustable5 - 1,000 lx
Detection
-
Detection angle220 - 220
-
Detection angle horizontal220 - 220
Use conditions
-
Operating temperature-20 - 55 °C
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, scene call-up upon motion/no motion, Reset function (to factory setting)
-
Installation modeFor wall and ceiling mounting, corner installation with adapter
Downloads
-

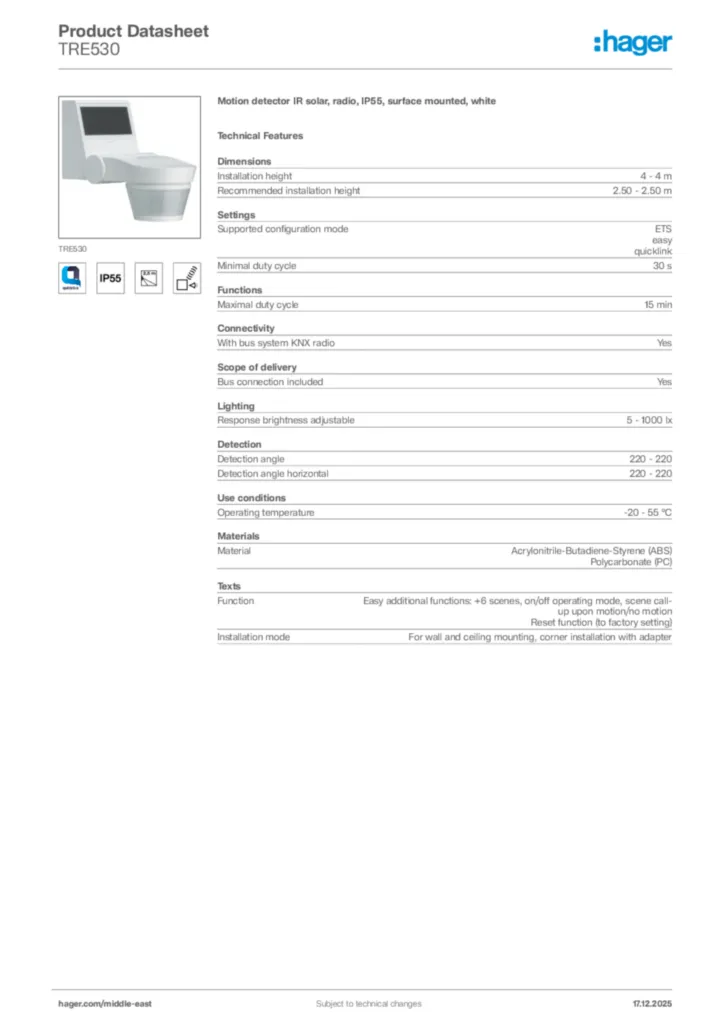

Product datasheet
Hager Product data sheet TRE530
Motion detector IR solar, radio, IP55, surface mounted, white
PDF -
Installation manual
Installation manual en-GB, fi-FI, it-IT, pl-PL 2010-07-02
PDF10,88 MB -
KNX product database
Logiciel d'application ETS du TRE530
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
VD5309,06 kB
Logiciel d'application ETS du TRE530
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
KNXPROD275,06 kB -
Application Guide
Description d'application ETS TRE500_501_520_521_510_511_530_531
Application Guide en-GB, pl-PL 2020-01-01
PDF979,54 kB
