Building management system KNX

Module 1 input + 1 output, 10A, IP55, KNX radio TRE400

Name: TRE400
Brand: Hager
SKU: TRE400P1

EAN-Nr.

3250615989253

Packaging

1 piece

Technical characteristics
Environmental value
Documentations
More products

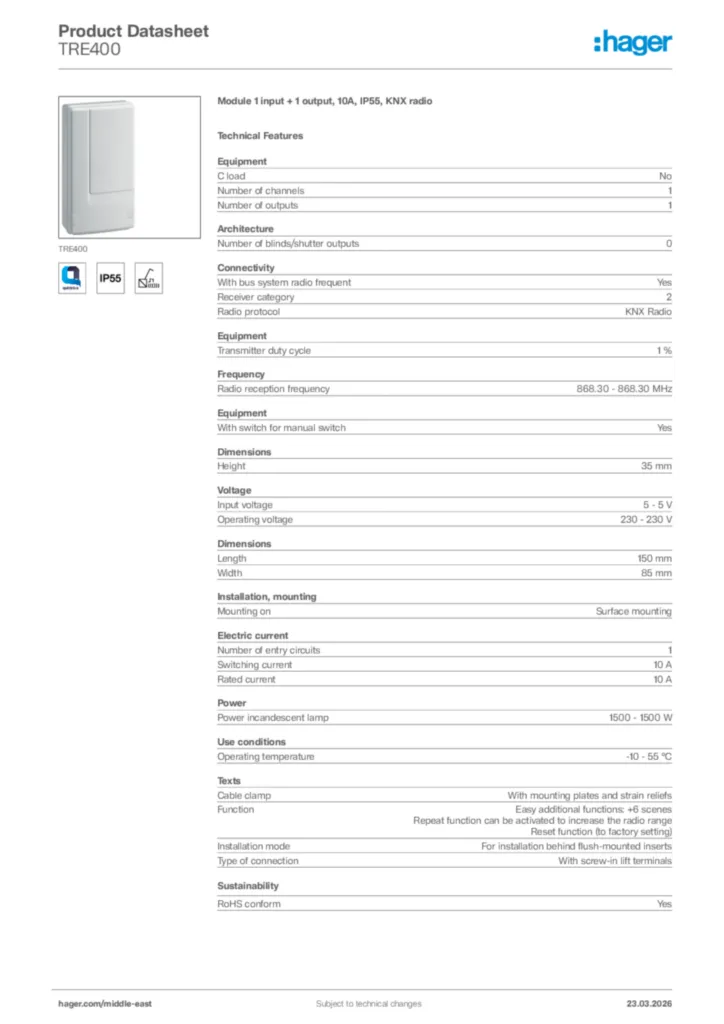

Download the sheet

Technical characteristics

C load

No
Number of channels

1
Number of outputs

1
Transmitter duty cycle

1 %
With switch for manual switch

Yes

Number of blinds/shutter outputs

0

With bus system radio frequent

Yes
Receiver category

2
Radio protocol

KNX Radio

Radio reception frequency

868.30 - 868.30 MHz

Height

35 mm
Length

150 mm
Width

85 mm

Input voltage

5 - 5 V
Operating voltage

230 - 230 V

Mounting on

Surface mounting

Number of entry circuits

1
Switching current

10 A
Rated current

10 A

Power incandescent lamp

1,500 - 1,500 W

Operating temperature

-10 - 55 °C

Cable clamp

With mounting plates and strain reliefs
Function

Easy additional functions: +6 scenes, Repeat function can be activated to increase the radio range, Reset function (to factory setting)
Installation mode

For installation behind flush-mounted inserts
Type of connection

With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
