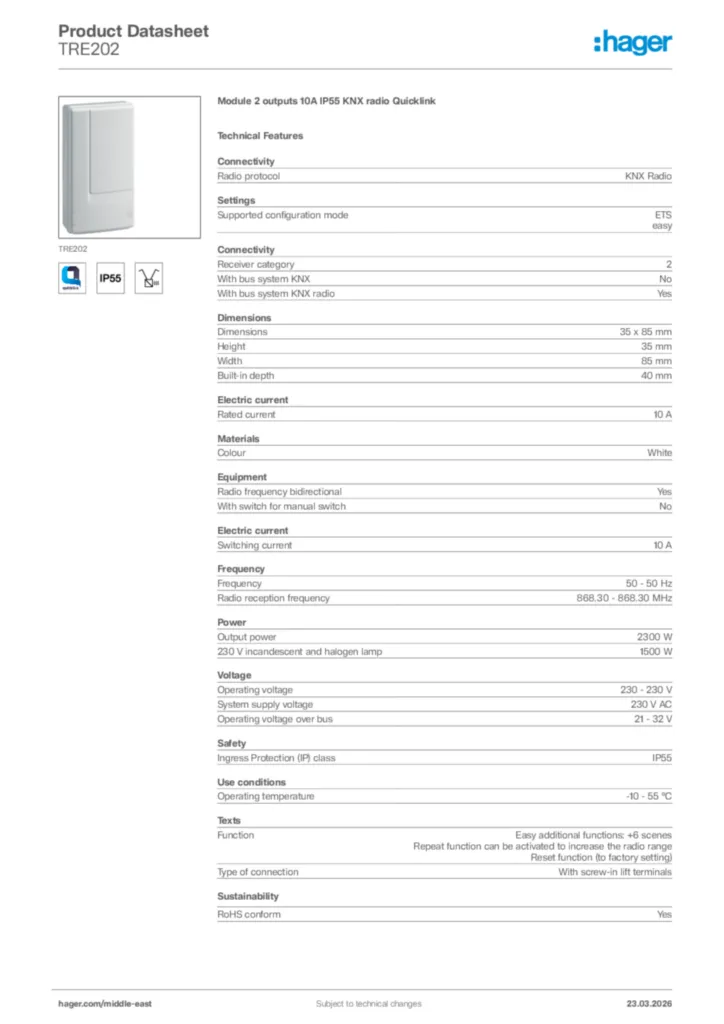

Module 2 outputs 10A IP55 KNX radio Quicklink TRE202

Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Technical characteristics

Radio protocol

KNX Radio
Receiver category

2
With bus system KNX

No
With bus system KNX radio

Yes

Supported configuration mode

ETS, easy

Height

35 mm
Width

85 mm
Built-in depth

40 mm

Colour

White

Radio frequency bidirectional

Yes
With switch for manual switch

No

Rated current

10 A
Switching current

10 A

Frequency

50 - 50 Hz
Radio reception frequency

868.30 - 868.30 MHz

Output power

2,300 W
230 V incandescent and halogen lamp

1,500 W

Operating voltage

230 - 230 V
System supply voltage

230 V AC
Operating voltage over bus

21 - 32 V

Ingress Protection (IP) class

IP55

Operating temperature

-10 - 55 °C

Function

Easy additional functions: +6 scenes, Repeat function can be activated to increase the radio range, Reset function (to factory setting)
Type of connection

With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
