Plug adaptator radio, ON/OFF, 10/16A, SCHUKO TRC270D
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
-
With bus system KNXNo
-
With bus system KNX radioYes
Settings
-
Supported configuration modeETS, easy, quicklink
Dimensions
-
Height54 mm
-
Width98 mm
-
Depth77 mm
-
Built-in depth40 mm
Architecture
-
Bus systemRadio frequent
Materials
-
ColourWhite
Equipment
-
Radio frequency bidirectionalYes
-
With switch for manual switchYes
Electric current
-
Rated current16 A
-
Switching current16 A
Frequency
-
Frequency50 - 50 Hz
-
Radio reception frequency868.30 - 868.30 MHz
Power
-
Output power3,680 W
-
230 V incandescent and halogen lamp2,300 W
-
Power incandescent lamp2,300 - 2,300 W
Voltage
-
Operating voltage230 - 230 V
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP30
Use conditions
-
Operating temperature0 - 45 °C
Texts
-
FunctionEasy additional functions: +6 scenes, Repeat function can be activated to increase the radio range, Reset function (to factory setting)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

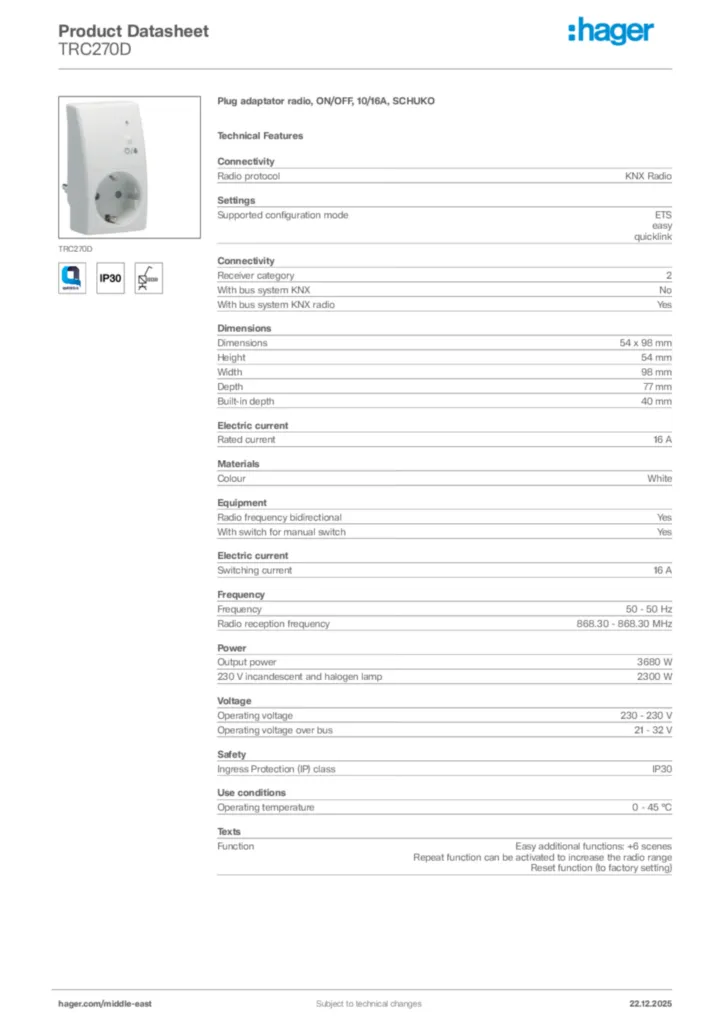

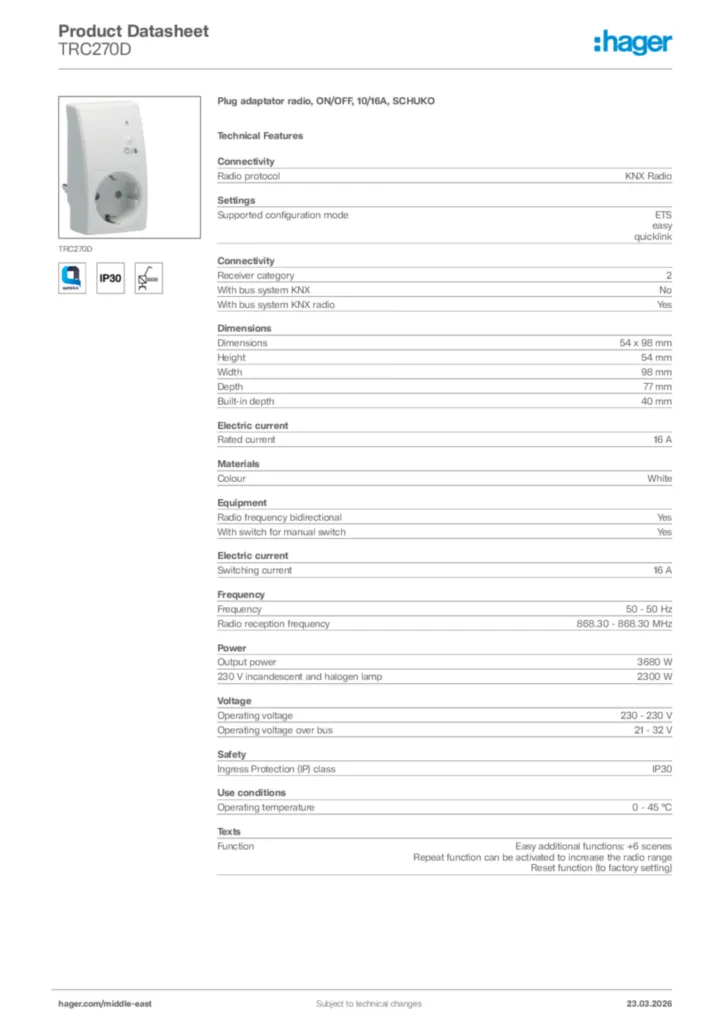

Product datasheet
Hager Product data sheet TRC270D
Plug adaptator radio, ON/OFF, 10/16A, SCHUKO
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-11-25
PDF1,67 MB -
Product attachment
Notice de configuration quicklink pour produits radio
Product attachment en-GB, es-ES, nn-NO, pt-PT, sv-SE 2020-01-01
PDF5,92 MB -
KNX product database
Logiciel d'application ETS du TRC270
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
KNXPROD147,89 kB
Logiciel d'application ETS du TRC270
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
VD5147,92 kB -
Application Guide
Description d'application ETS TRB201_TRE201_202_TRC270F_D_C
Application Guide en-GB, pl-PL 2020-01-01
PDF1,37 MB -
Declaration of conformity
Declaration of conformity International 2023-05-03
PDF316,53 kB
