EAN-Nr.

3250617579261

Packaging

1 piece

Presence detector 360° monobloc KNX multi-channels TCC530E

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Accessories/spare parts for movement sensor 2 products available

Technical characteristics

Installation height

4 - 4 m
Recommended installation height

2.5 - 3.5 m

Supported configuration mode

ETS
Minimal duty cycle

5 s

Maximal duty cycle

480 min

With bus system KNX radio

No

Operating voltage over bus

21 - 32 V

Bus connection included

Yes

Detection angle

360 - 360
Detection angle horizontal

360 - 360

Operating temperature

-10 - 45 °C

Material

Acrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)

Function

Functions e.g. switching, dimming, light scenes, forced control, With 2 independent zone detections, Linking several detectors in order to expand the detection area
Installation mode

With spring clips for ceiling installation

Downloads

Product Image TCC530E
Product datasheet

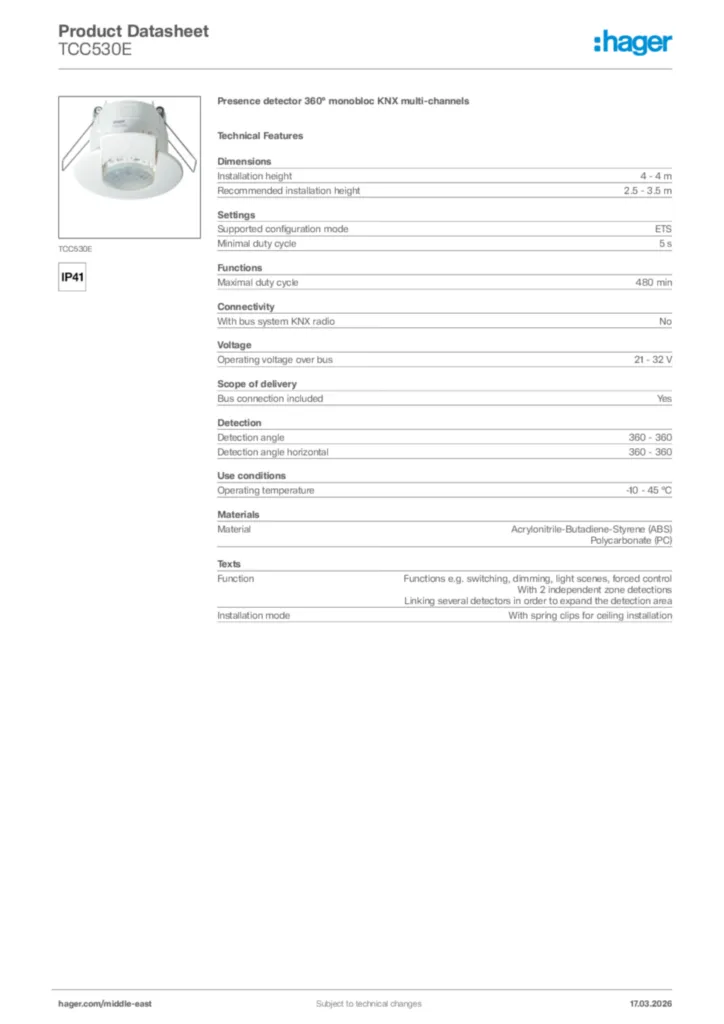

Hager Product data sheet TCC530E

Presence detector 360° monobloc KNX multi-channels

PDF
Installation manual

Installation manual en-GB, fr-FR, pl-PL 2009-10-27

PDF

4,64 MB
KNX product database

Logiciel d'application ETS du TCC530E

KNX product database fr-FR, de-DE 2020-01-01

VD5

128,79 kB

Logiciel d'application ETS du TCC530E

KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pt-PT 2020-01-01

KNXPROD

109,73 kB
Declaration of conformity

Declaration

Declaration of conformity International 2020-10-27

PDF

106,64 kB

More documentation
